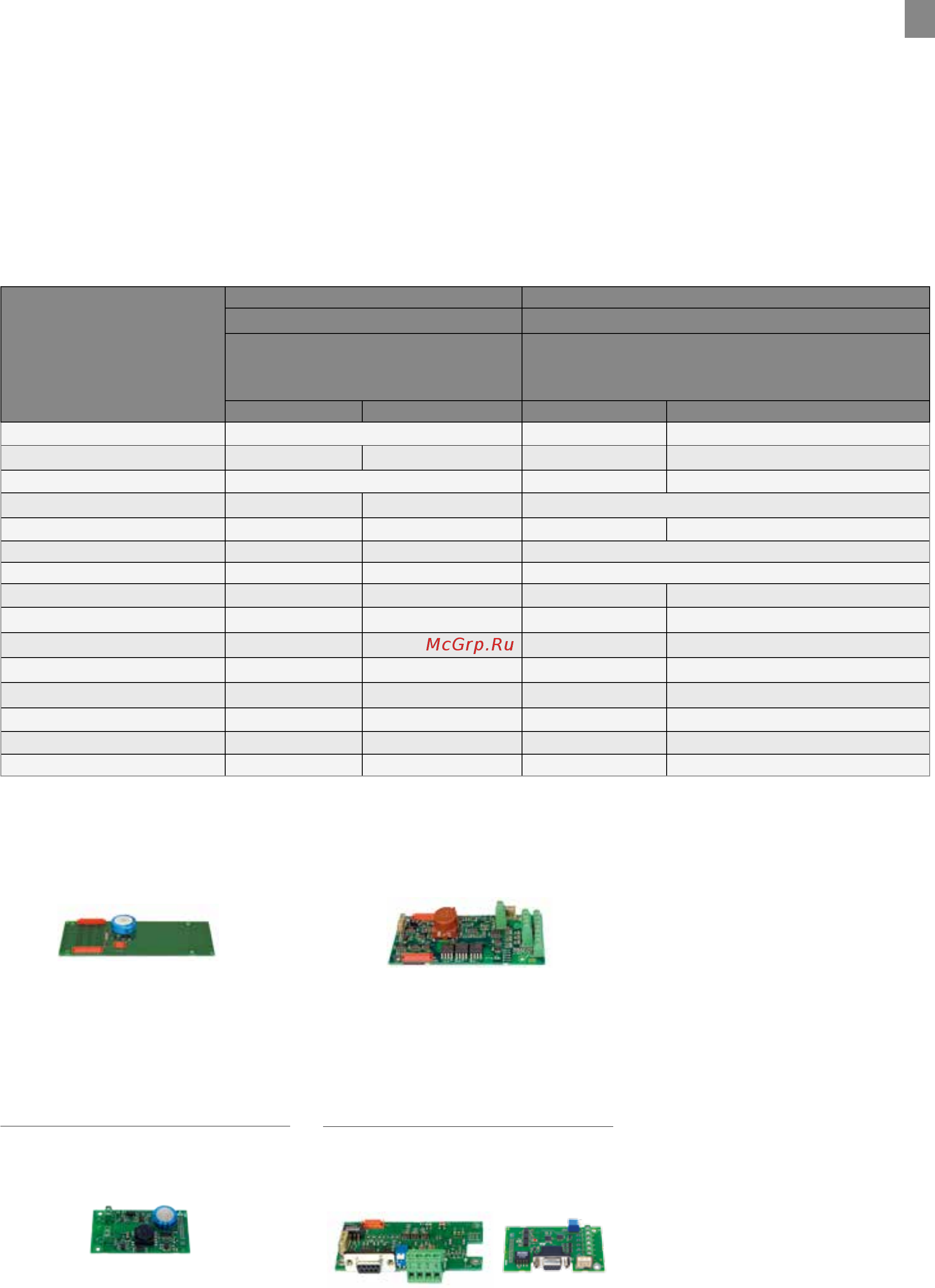

RTC board
RTC (Real Time Clock) function for FlowDrive
Makes it possible to start functions at desired
date, time or weekday.
PTC/PT100 board
1 PTC isolated input conforming DIN
44081/44082. Max 6 PTC thermistors can be
connected in series to PTC input.
Also including 3 PT100 inputs, 2/3/4-wire,
conforming EN 60751.
RS232/RS485 isolated
Isolated RS232/RS485 serial communication
board. For Modbus/RTU communication
protocol.
Baud rates: 2400 - 38400 bits/s supported.
1 PTC isolated input conforming DIN
44081/44082. Max 6 PTC thermistors can be
connected in series to PTC input.
RTC (Real Time Clock) function for FlowDrive
Makes it possible to start functions at desired
date, time or weekday.
STANDARD OPTION
IP2Y IP20/21 and IP54
Frame sizes A3 - C3 Frame sizes C2 - F2 and B - F
All boards are coated.
Support for 2 option boards
and one communication option
All boards are uncoated, available as coated on request.
Support for 3 option boards
and one communication option
Part no. Remark Part no. Remark
RTC Board Not available, see PTC & RTC board 01-3876-15 Max 1 RTC board
I/O board 01-6070-01 01-3876-01
PTC/PT100 board Not available 01-3876-08 Max 1 PTC/PT100 board
PTC & RTC board 01-6070-08 Not available
RS232/485 01-6070-07 01-3876-04
Standby power supply 01-6070-00 Available as factory built in option
Safe stop 01-6070-02 Available as factory built in option
Fieldbus - Profibus 01-6070-05 01-3876-05
Fieldbus - DeviceNet 01-6070-06 01-3876-06
Ethernet - Modbus TCP 01-6070-09 01-3876-09
Ethernet - Modbus/TCP M12 01-6070-14 01-3876-14
Ethernet - EtherCAT
®
01-6070-10 01-3876-10
Ethernet - Profinet IO 1-port 01-6070-11 01-3876-11
Ethernet - Profinet IO 2-port 01-6070-12 01-3876-12
Ethernet - EtherNet IP 2-port 01-6070-13 01-3876-13
PTC & RTC board
Standard options for Emotron FlowDrive
Standard options
