Emotron FLD48-023-2Y [16/20] Extended options for emotron flowdrive

16

www.emotron.com

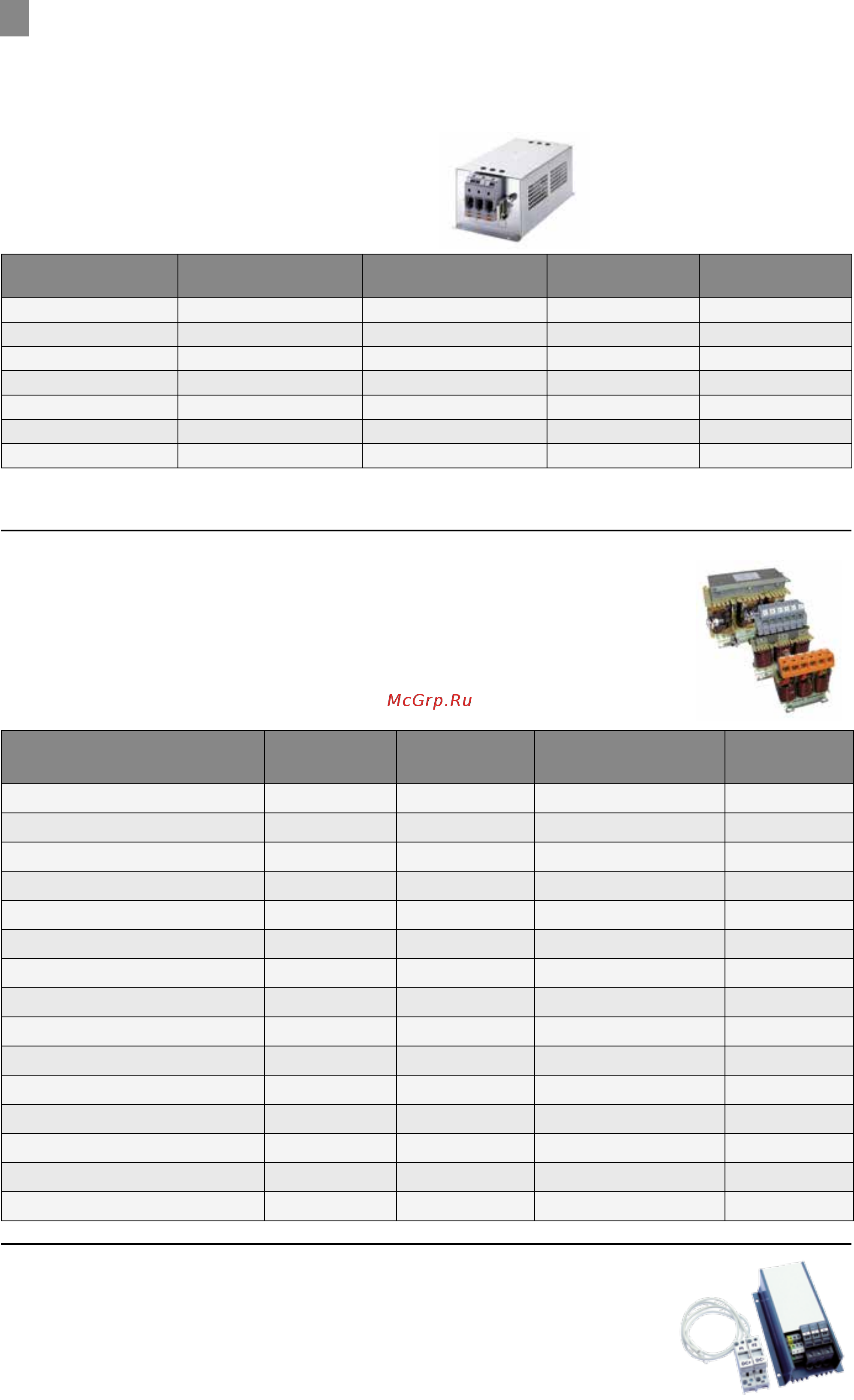

Extended options for Emotron FlowDrive

Extended EMC lter 90-300A

EMC filter according to EN61800-3:2004

class C2 - 1st environment, restricted

distribution. From frame size E. Rated

voltage=480 V, 50/60 Hz.

Max. 40 °C ambient temperature.

1

FLD48-146 3F480-150.230 375x175x135 10 IP20

1

FLD48-175 3F480-180.230 490x170x158 13.5 IP00

2

FLD48-210 3F480-220.230 490x170x158 13.5 IP00

2

FLD48-250 3F480-250.230 490x230x158 18.2 IP00

2

FLD48-300 3F480300.230 490x230x158 18.2 IP00

2.8 1.5 0.6 60x78x95 473160 00

4.4 1 0.6 60x78x95 473161 00

6.6 0.65 0.6 60x78x95 473162 00

11 0.4 1 65x96x105 473163 00

14.3 0.3 1 65x96x105 473164 00

18.2 0.25 1.2 74x96x105 473165 00

26.4 0.175 1.2 74x96x105 473166 00

32 0.15 1.7 84x125x140 473167 00

65 0.1 4 105x155x205 473168 00

Output choke (dU/dt)

Output chokes (supplied separately) are recommended above app. 100 m cable length for all single drives.

Consult your supplier in case of paralleled drives. Due to the switching of output voltage, high capacitive peak

currents will run through the parasitic capacitances between the phases and to earth. Screened cables have

more parasitic capacitances. Output chokes should be installed as close as possible to the drive output. Output

chokes also limits voltage peaks at motor winding.

Rated voltage = 800 V, IP00 units. Suitable for up to IP23 cabinet installation.

Max. 40°C ambient temperature.

Overshoot clamp

Together with the output choke, the overshoot clamp limits the voltage to the motor.
