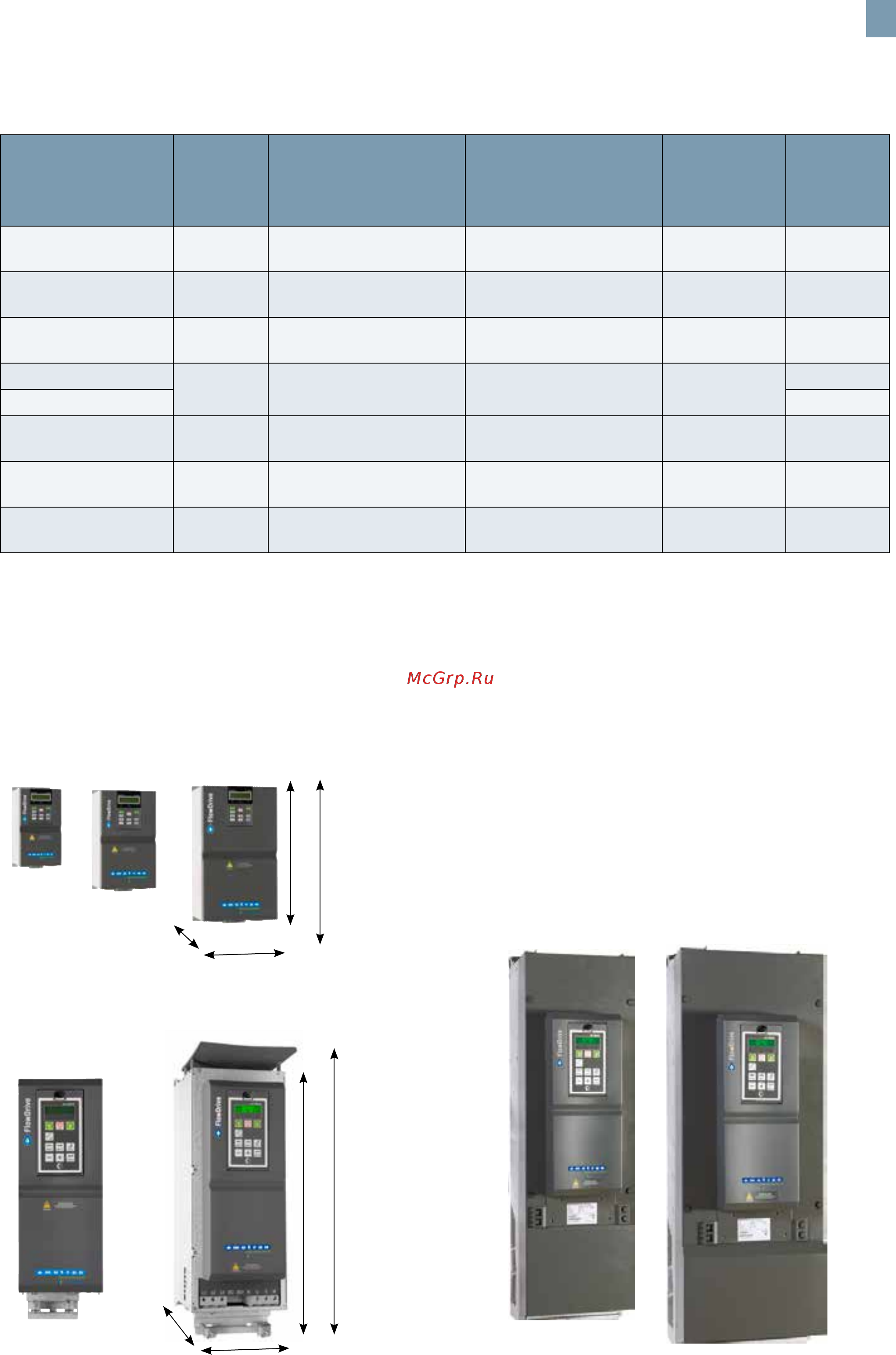

![Emotron FLD48-013-54 [9/20] Ip2y and ip20 21 version of emotron flowdrive](/views2/1574009/page9/bg9.png)
9
www.emotron.com
Models Frame size
Dim.
H1/H2 x W x D
mm (in)
IP20*
Dim.
H1/H3 x W x D
mm (in)
IP21**
Weight
kg (Lbs)
IP20/IP21
Air flow
m3/hour
FLD48-2P5-2Y to -012-2Y A3
220/287 x 120 x 169
(8.7/11.3 x 4.7 x 6.7)
- 2.6 (5.7) 39
FLD48-016-2Y to -023-2Y B3
255/325 x 145 x 179
(9.8/12.8 x 5.7 x 7)
- 3.9 (8.6) 89
FLD48-032-2Y to -038-2Y C3
335/407 x 190 x 187
(13.2/16 x 7.5 x 7.4)
- 5 (11) 177
FLD48-025 to 48-030
C2
446 / 536 x 176 x 267
(17.2/21.1 x 6.9 x 10.5)
438 / 559 x 196 x 282
(17.2/22 x 7.7 x 11.1)
17 (37.5)
120
FLD48-036 to 48-058 170
FLD48-072 to 48-105 D2
545 / 658 x 220 x 291
(21.5/25.9 x 8.7 x 11.5)
545 / 670 x 240 x 307
(21.5/26.4 x 9.5 x 12.1)
30 (66) 170
FLD48-142to 48-171 E2
956 / 956 x 275 x 294
(37.6/37.6 x 10.8 x 11.6)
956 / 956 x 275 x 323
(37.6/37.6 x 10.8 x 12.7)
53 (117) 510
FLD48-205 and 48-293 F2
956 / 956 x 335 x 294
(37.6/37.6 x 13.2 x 11.6)
956 / 956 x 335 x 323
(37.6/37.6 x 13.2 x 12.7)
68 (150) 800
H1 = Enclosure height
H2 = Total height including cable interface
H3 = Total height including top cover
* without top cover
** with top cover
Mechanical specications for model FlowDrive - IP2Y and - IP20/21 version
IP2Y and IP20/21 version of Emotron FlowDrive
Frame size
B3
Frame size
C3
IP21
Frame size D2
IP20
Frame size C2
H1
W
D
Frame size
A3
H3
H1
H2
W
D
IP20
Frame size E2
IP20
Frame size F2
