14
www.emotron.com
Control panel kit, incl. blank panel
External control panel IP54 suitable for
mounting on a cabinet door. This option is to be
used in combination with an AC drive module
ordered with a built-in control panel.
Part no. 01-3957-21 (Size B)
01-3957-31 (Size C/C2)
01-3957-01 (Size D/D2 and up)
Control panel kit, incl. control panel
External control panel IP54 suitable for
mounting on a panel door. This option is to be
used in combination with an AC drive module
ordered with a blank control panel.
Part no. 01-3957-20 (Size B)
01-3957-30 (Size C/C2)
01-3957-00 (Size D/D2 and up)

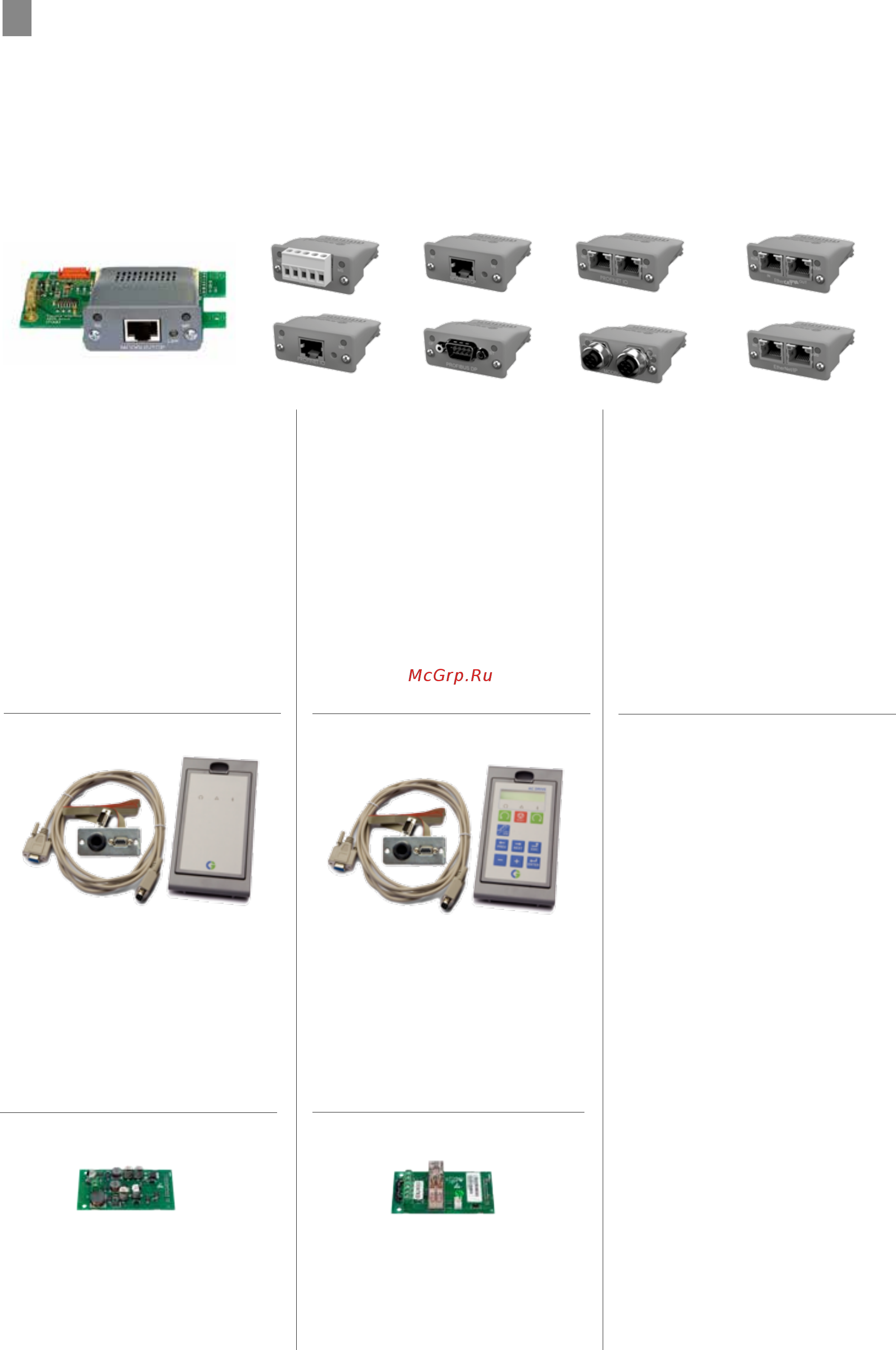

Fieldbus and Ethernet boards
Typical drive response time = 10 ms (not including any fieldbus & ethernet delays).
Standard options for Emotron FlowDrive
Standby power supply
Standby power supply board for AC drive type
IP2Y, frame sizes A3, B3 and C3
To be connected to external 24 V AC/DC supply
voltage. If the main power is switched off, the
control board, control panel and the connected
options, for example fieldbus communication,
will continue to operate.
Safe stop
Safe stop (STO) board for AC drive type IP2Y,
frame sizes A3, B3 and C3
Extra built-in inputs and outputs for emergency
stop circuit (Safe Torque Off), conforming with
the norms EN-IEC 62061:2005 SIL2 and
EN-ISO 13849-1:2006
Ethernet - EtherCAT
®
Industrial Ethernet option module for EtherCAT
protocol. 2 x RJ45 type connectors (IN and
OUT).
Baud rate: 100 Mbits/s
Ethernet - Pronet IO 1-port
Industrial Ethernet option module for Profinet IO
(RT) protocol. RJ45 type connector.
Baud rate: 100 Mbits/s
Ethernet - Pronet IO 2-port
Industrial Ethernet option module for Profinet IO
(RT) protocol. 2 x RJ45 type connectors.
Baud rate: 100 Mbits/s
Ethernet - EtherNet IP 2-port
Industrial Ethernet option module for Profinet IO
(RT) protocol. 1 x RJ45 type connector.
Baud rate: 100 Mbits/s
Fieldbus - Probus
Fieldbus option module for Profibus DP or DP
V1 communication. Use 9-pin D-sub connector.
Baud rates: 9.6 kbits/s - 12 Mbits/s supported.
Ethernet - Modbus/TCP M12
Industrial Ethernet option module for Modbus/
TCP protocol. M12 type connector.
Baud rates: 10 or 100 Mbits/s supported.
Fieldbus - DeviceNet
Fieldbus option module for DeviceNet
communication.
Baud rates: 125 - 500 kbits/s supported.
Ethernet - Modbus/TCP
Industrial Ethernet option module for Modbus/
TCP protocol. RJ45 type connector.
Baud rates: 10 or 100 Mbits/s supported.
