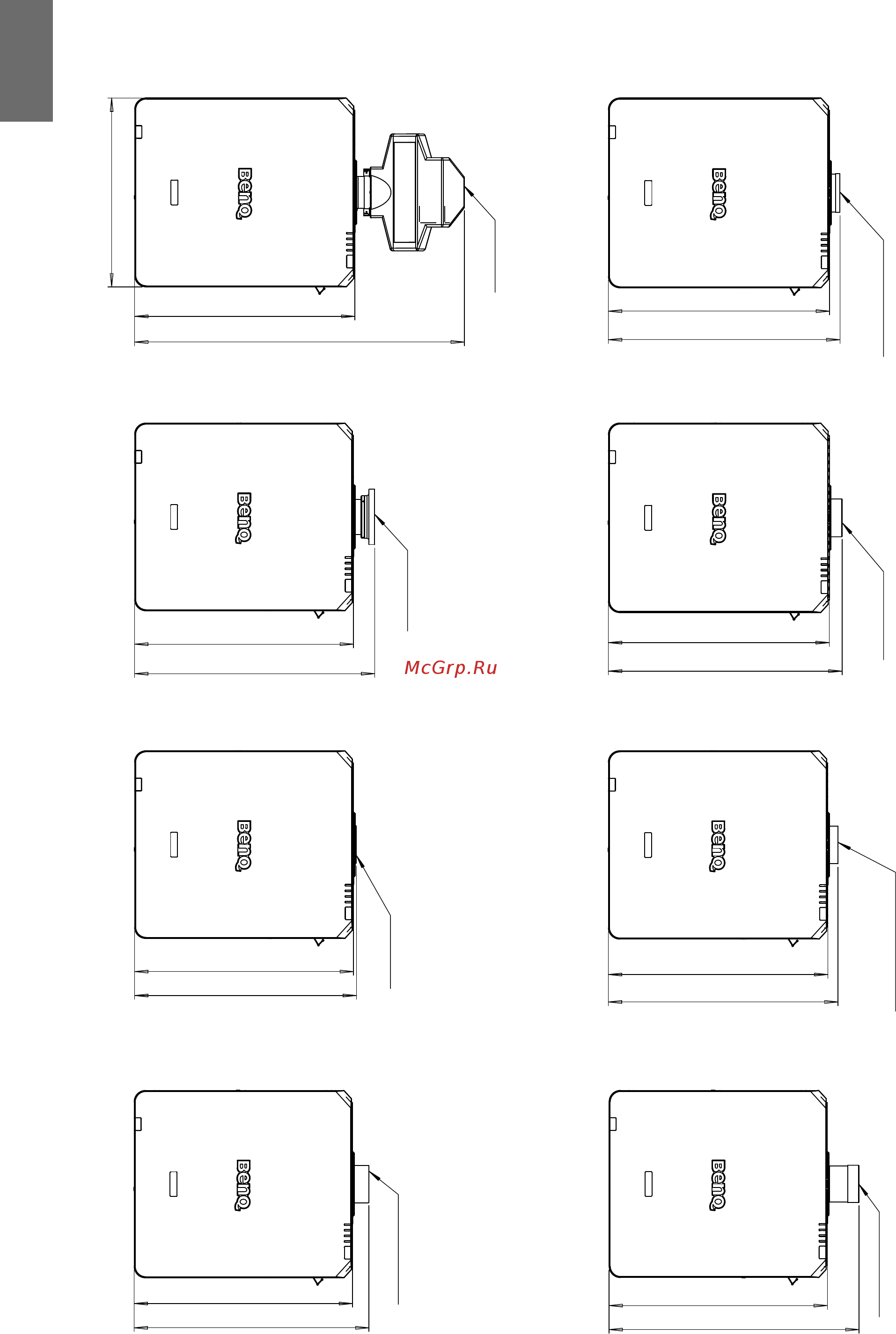

Optional lens dimensions
872.5
500
582.80
UST LENS
WIDE FIX LENS
610.16
582.80
Optional Lens (UST: LSIST4) Optional Lens (WIDE FIX: LSIST3)
UWZ LENS
639.4
582.80
Optional Lens (UWZ: LSIST2)
WIDE LENS
616.5
582.8
Optional Lens (WIDE: LSIST1)
STD LENS
582.80
590.7
Optional Lens (STD: LSISD)
609.90
582.80
SEMI LONG LENS
Optional Lens (SEMI: LSILT1)
LONG 1 LENS
626.7
582.80
Optional Lens (LONG1: LSILT2)
LONG2 LENS
667.3
582.80
Optional Lens (LONG2: LSILT3)
