Benq LU9715 [4/17] Projector specifications

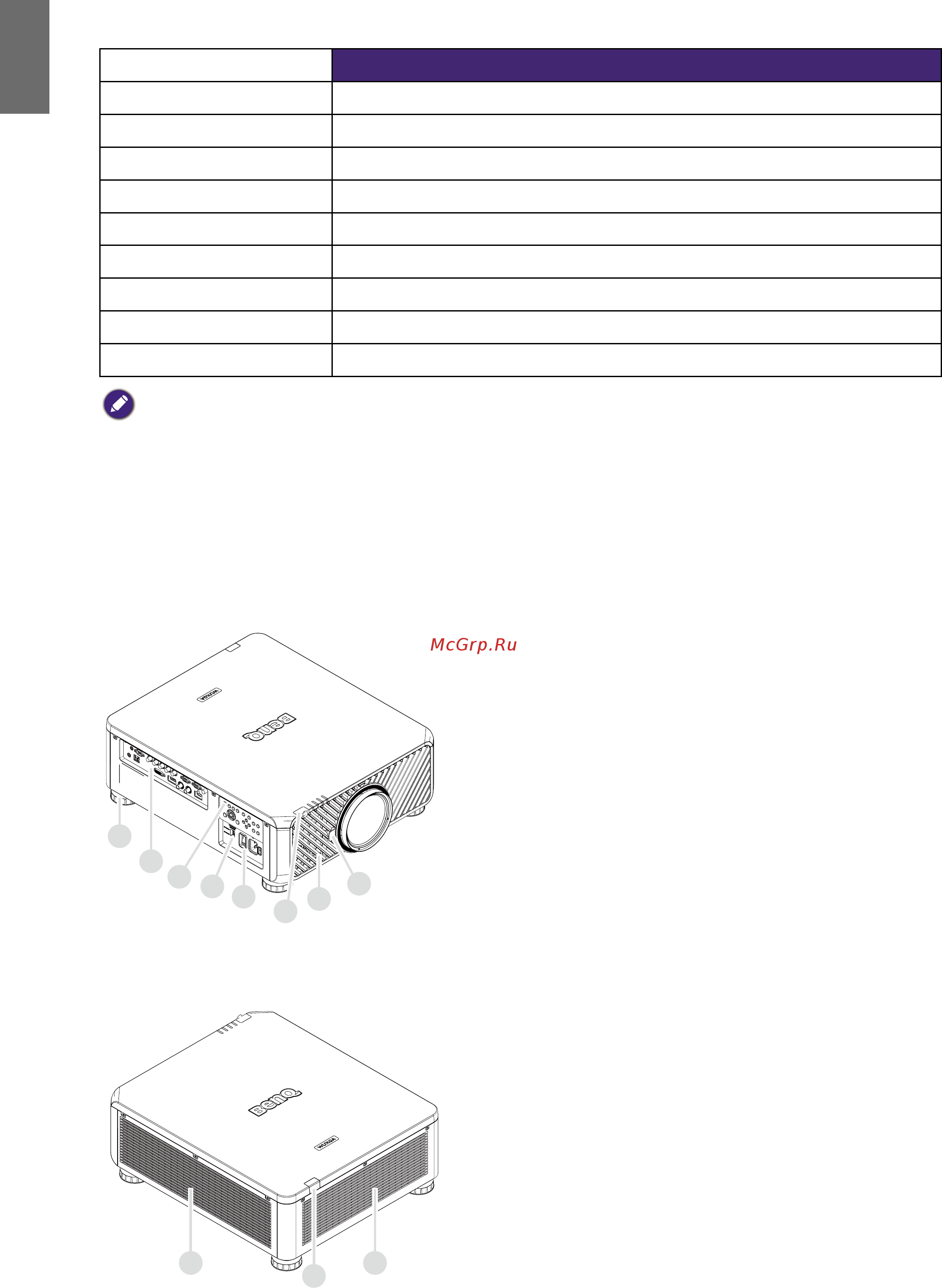

![Benq LU9715 [4/17] Projector specifications](/views2/1574804/page4/bg4.png)
English
4
Projector specifications
Specifications LU9715
Projection system DLP Single 0.67 WUXGA DMD Chip
Native resolution WUXGA (1920 x 1200)
Brightness 8000 Lumens
Aspect ratio 16:10
Light source Laser Light Source
Power consumption 885W (Max.) / 850W (Normal mode) / 675W (Eco mode)
Dimensions 583mm (L) x 500mm (W) x 211mm (H)
Weight 28kg / 61.7 lbs (Lens excluded)
Operation Temperature 32ºF to 104ºF (0ºC to 40ºC )
Note:
• Brightness is supplied by standard lens. The value will vary depending on lenses being installed.
• Brightness output will vary depending on each unit and actual usage.
• Please visit the local website from http://www.benq.com for the latest User Manual.
Projector exterior view
Front and upper side view
1
7
6
8
3
4
5
2
1. Foot for adjusting projector level
2. IO panel
3. Control panel
4. Slide switch (voltage selection)
5. AC power switch
6. Front IR sensor
7. Lens release button
8. Air intake
Rear and upper side view
10
11
9
9. Air intake
10. Air exhaust
11. Rear IR sensor
