English
16
LED indication
Indicator messages

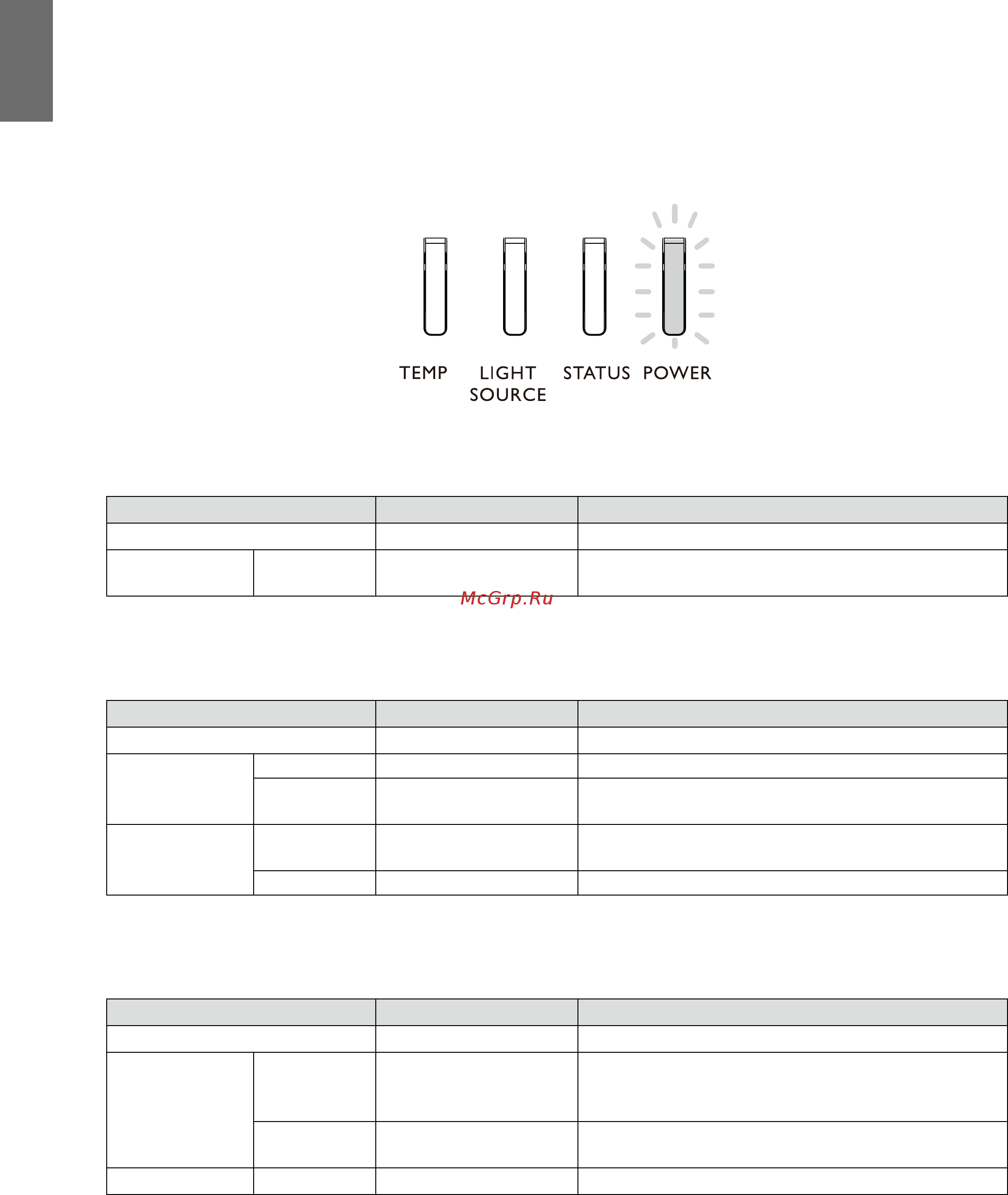

Several indicator messages are used by the projector to alert users about problems with setup or
system error. The LEDs on top cover of the projector illustrated below.
TEMP LED
LED display Projector status Operation tips
Off Normal status
Flashing Red Over temperature error
Contact with your nearest authorized dealer or service
center.
LIGHT SOURCE LED
LED display Projector status Operation tips
Off Light source is off
Flashing
Green Projector is turning on
Red (Cycles of
6)
Light source is end-of-life Please call the local service center.
On
Red Light source problem Please call the local service center.
Green Light source is on
STATUS LED indicator
LED display Projector status Operation tips
Close Normal
Flashing
Red (once) Safety switch error
Please check whether the top cover is well assembled
or lens is well installed or not. If the problem persists,
call the local service center.
Red
(quadruple)
Fan error Call the local service center.
Lights up Red System error Call the local service center.
