High Performance Vector Control/Torque Control Inverter User Manual
156
Appendix D PG Card Lectotype and Connection Diagram
Appendix D PG Card Lectotype and Connection Diagram
1. Option Introduction
Model Frequency
dividing
Technical specification Power voltage of
encoder
EX−PG01 No Maximum load 200mA, up to 80K pulse input +12V～+24V
EX−PG02 No Maximum load 150mA, up to 300K pulse input +5V
EX−PG03 Yes Maximum load 200mA, up to 80K pulse input +12V～+24V
EX−PG04 Yes Maximum load 150mA, up to 300K pulse input +5V

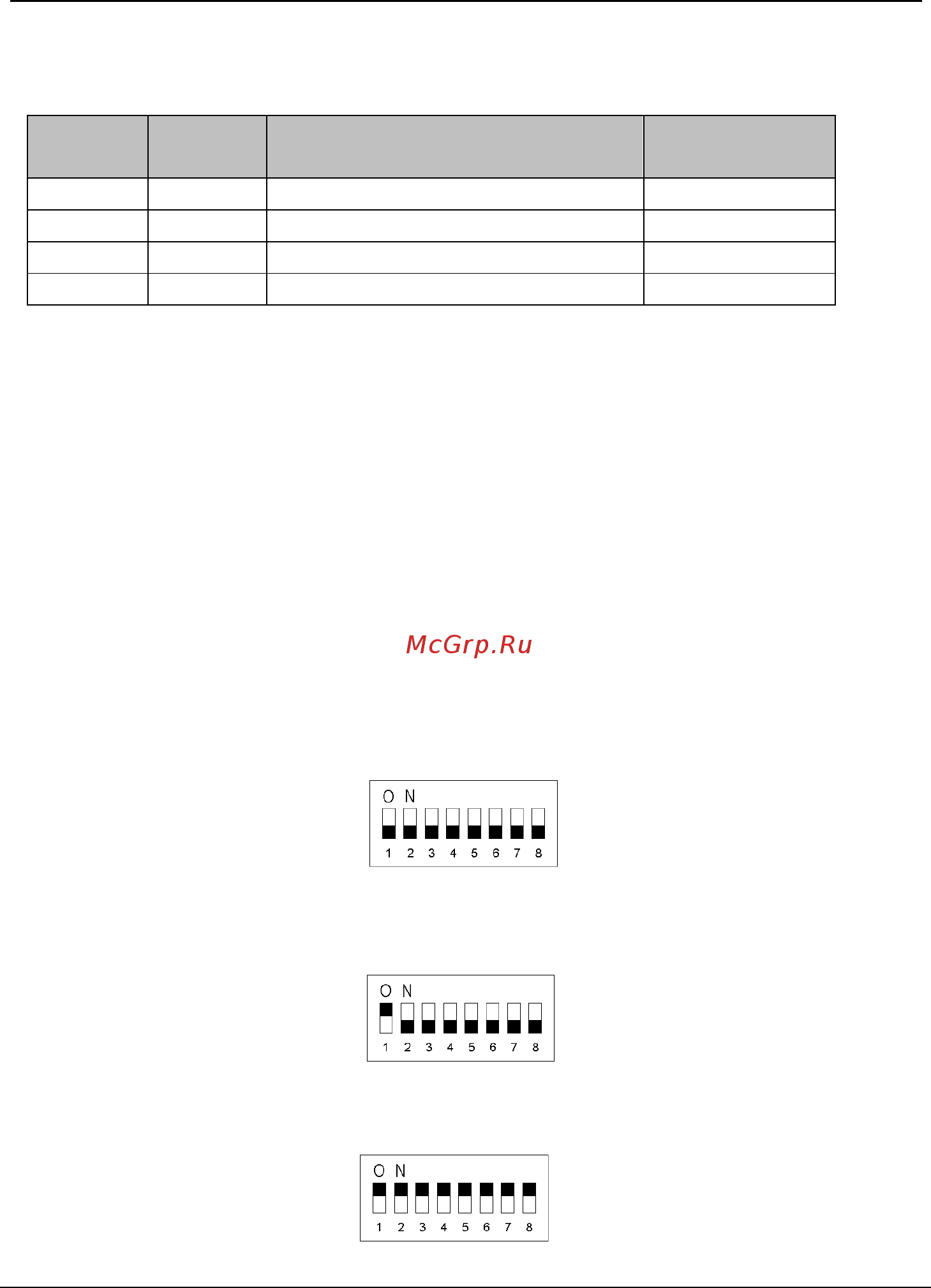

2. Frequency Dvision Number Setting of PG Card
No.1 toggle switch corresponds to bit 0 of binary system;
No.2 toggle switch corresponds to bit 1 of binary system;
No.3 toggle switch corresponds to bit 2 of binary system;
…………
No.8 toggle switch corresponds to bit 7 of binary system;
When the toggle switch is in ON status, the value of the corresponding bit is 1; otherwise, it is 0.
Therefore, frequency division from 1, 2 to 510 can be realized through toggle switch.
In this way, the calculation formula of the number of the PG card frequency divisions is:
Number of frequency divisions=binary number indicated by toggle switch×2
When the toggle switch is in the status shown in the right figure, the corresponding number of
frequency division is 1
When the toggle switch is in the status shown in the figure, the corresponding number of frequency
divisions is 2.
When the toggle switch is in the status shown in the figure, the corresponding number of frequency
divisions is 510.
