High Performance Vector Control /Torque Control Inverter User Manual
Chapter 1 Introduction to V8/V9 Series Inverter 9
1.7 Operation Panel Outline and Mounting Dimension
Shuttle type operation panel
(V9-DP01)
Button type operation panel
(V9-DP02)
Rear view of operation panel

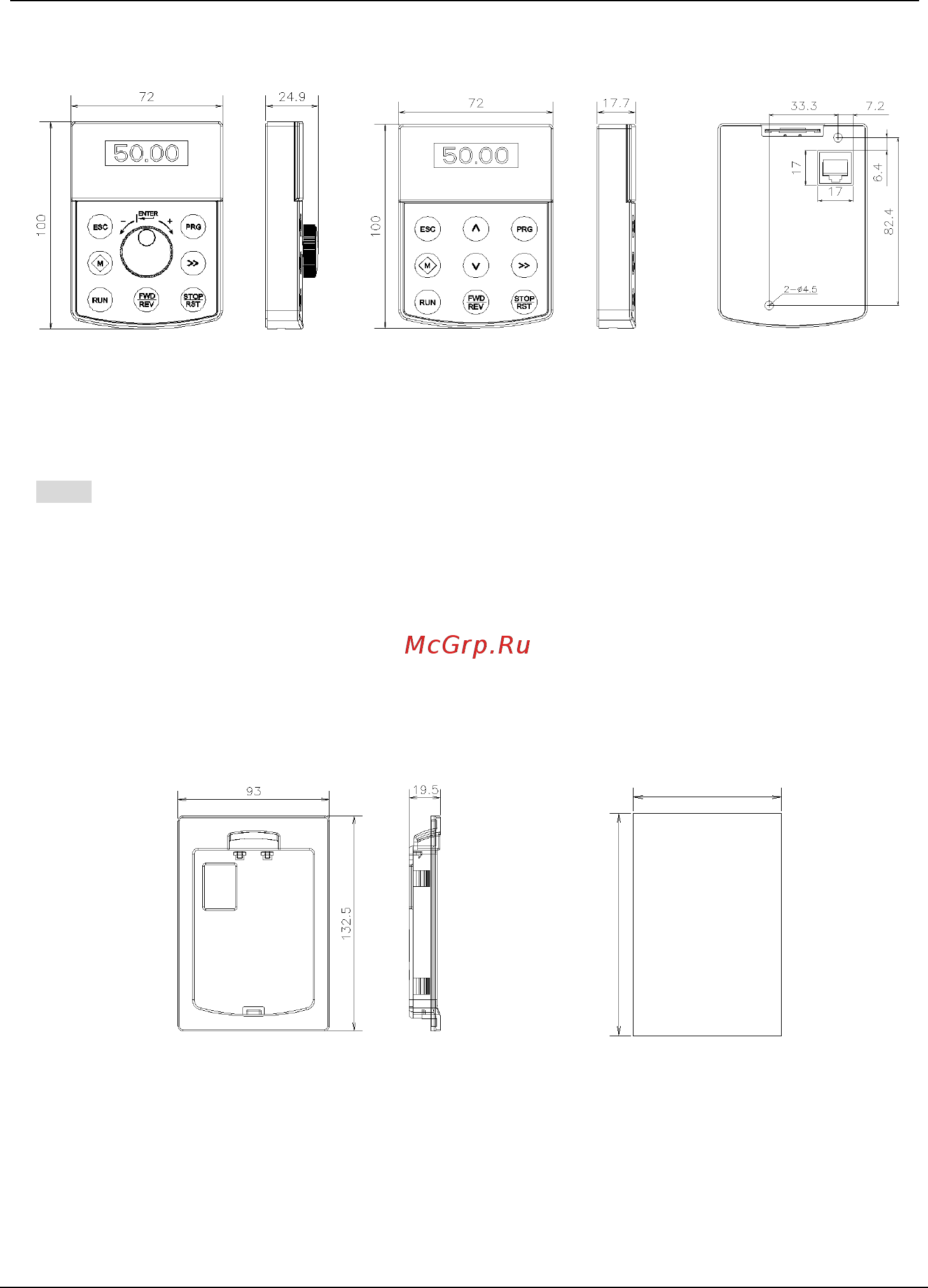

Fig.1-3 Operation panel outline and mounting dimension
Note:
G-47P5/P-4011Land below power class are equipped with shuttle type operation panel (V9-DP01) as
standard, G-4011/P-4015 and above power class are equipped with button type operation panel
(V9-DP02) as standard.
1.8 Pallet Outline and Mounting Dimension
V9-DP05 is the mounting pallet when the operation panel is to install on the electric control cabinet. The
outline and dimension are as follows:
Pallet (V9-DP05) Open pore dimension of pallet
Fig.1-4 Pallet outline and mounting dimension
117.6
117.6
80
117.6
117.6
80
