Upon the zero-crossing switching of the motor (forward/reverse switching), the current
has no phase mutation or oscillation, and the rotating speed has no pulsation.
The bus voltage is under stable control. Quick and reliable braking can be realized
when decelerating under the condition of braking without power consumption.
It is especially suitable for:
The reciprocating equipments are such as various lathe, fountain control machine,
weaving machine and jacquard.

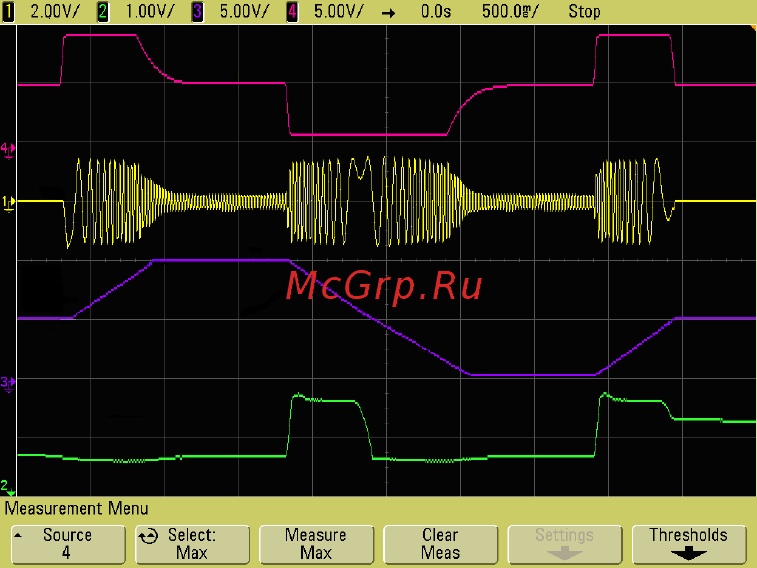

Fig. 1 Quick acceleration/deceleration four-quadrant running in the form of 0Hz
→Forward running 50Hz→0Hz→Reverse running 50Hz→0Hz
Realize Real Tripless Operation
With excellent current and voltage control technology, 0.1s repetitive and alternate
acceleration and deceleration performe. And the inverter realizes stable and tripless
operation.
With extremely powerful loading capacity, the inverter can realize stable tripless
operation in any acceleration/deceleration time and under any impact load condition.
With strong short-time overload capacity, the inverter can operate continuously for 0.5s
under 200% rated load, and 1 minute under 150% rated load.
The intelligent module temperature control maximizes the loading capacity of the
inverter.
It is especially suitable for:
The heavy-duty equipments are such as injection molding machine (modification for
energy saving), lifting equipment, various lathe, rolling mill, furnace feeding equipment.
Speed
Current
Bus voltage
Torque
