High Performance Vector Control/Torque Control Inverter User Manual
Appendix D PG Card Lectotype and Connection Diagram 157
3. PG Card Lectotype and Connection Diagram
◆ EX−PG01 Card and EX−PG03 Card
For the open collector, voltage, push-pull (complementary) type motor speed feedback encoder whose
power supply is +12V to +24V, please adopt the V&T PG feedback card EX-PG01.If the inverter needs to
transmit the motor rotation speed to other equipment for calculation or speed measurement in addition to
vector control 2 with encoder speed feedback, please adopt the V&T feedback frequency division output
card EX-PG03.
Encoder
Vcc
A
B
Z
+12V
PZ-
PA-
PB-
PE
EX-PG01
Inverter
Shielded wire
0V 0V
PA+
PB+
PZ+
ON
OFF

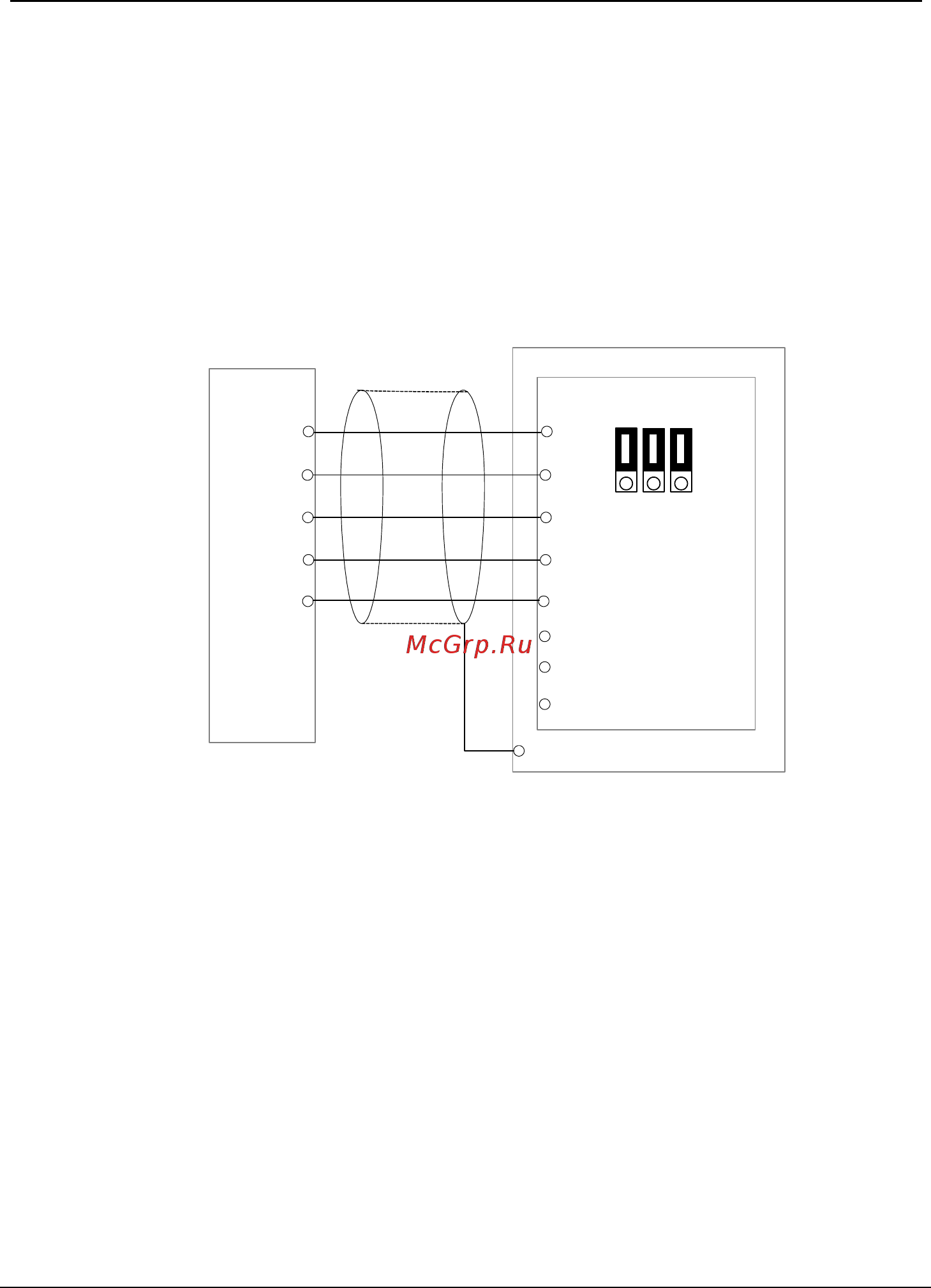

Connection diagram for EX-PG01 card adopting internal power supply
(Jumper toggled to ON side)
