![Tecorp HC2V8G4160 [4/182] Big torque stable running at low frequency under vector control](/img/pdf.png)
Tecorp HC2V8G4160 [4/182] Big torque stable running at low frequency under vector control
![Tecorp HC2V9P4022 [4/182] Big torque stable running at low frequency under vector control](/views2/1587641/page4/bg4.png)

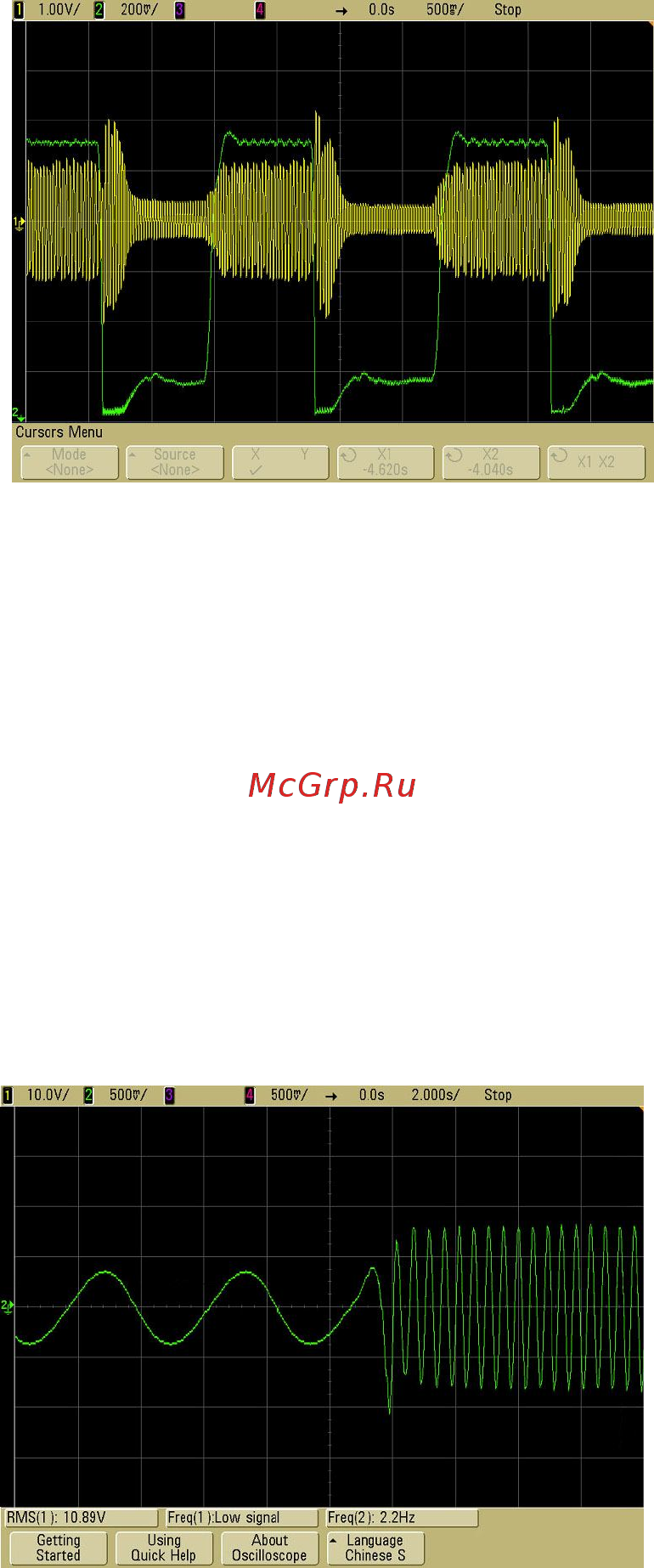

Fig. 2 The inverter realizes stable control of current and voltage and
will not trigger under any acceleration/deceleration condition
as well as stable operation condition
Big Torque & Stable Running at Low Frequency under Vector Control
With precise speed identification and rotor magnetic flux orientation, the torque
responds quickly and stable operation in the case of 0.25Hz load mutation.
Startup torque: Vector control 2 without speed feedback: 0.25Hz; 180% rated torque
Vector control 2 with speed feedback: 0.00Hz; 180% rated torque
Speed stabilization precision: Vector control 2 without speed feedback: ±0.2%
Vector control 2 with speed feedback: ±0.02%
It is especially suitable for:
Medium and large wire-drawing machine, pipe and cable processing, lifting equipment,
rolling mill.
Fig.3 Abrupt increase to full load operation at
0.25Hz under speed sensorless vector control
Current
Bus voltage
Current
