High Performance Vector Control/Torque Control Inverter User Manual
Chapter 3 Wiring of Incerter 29
3.11 Description of Jumper Function

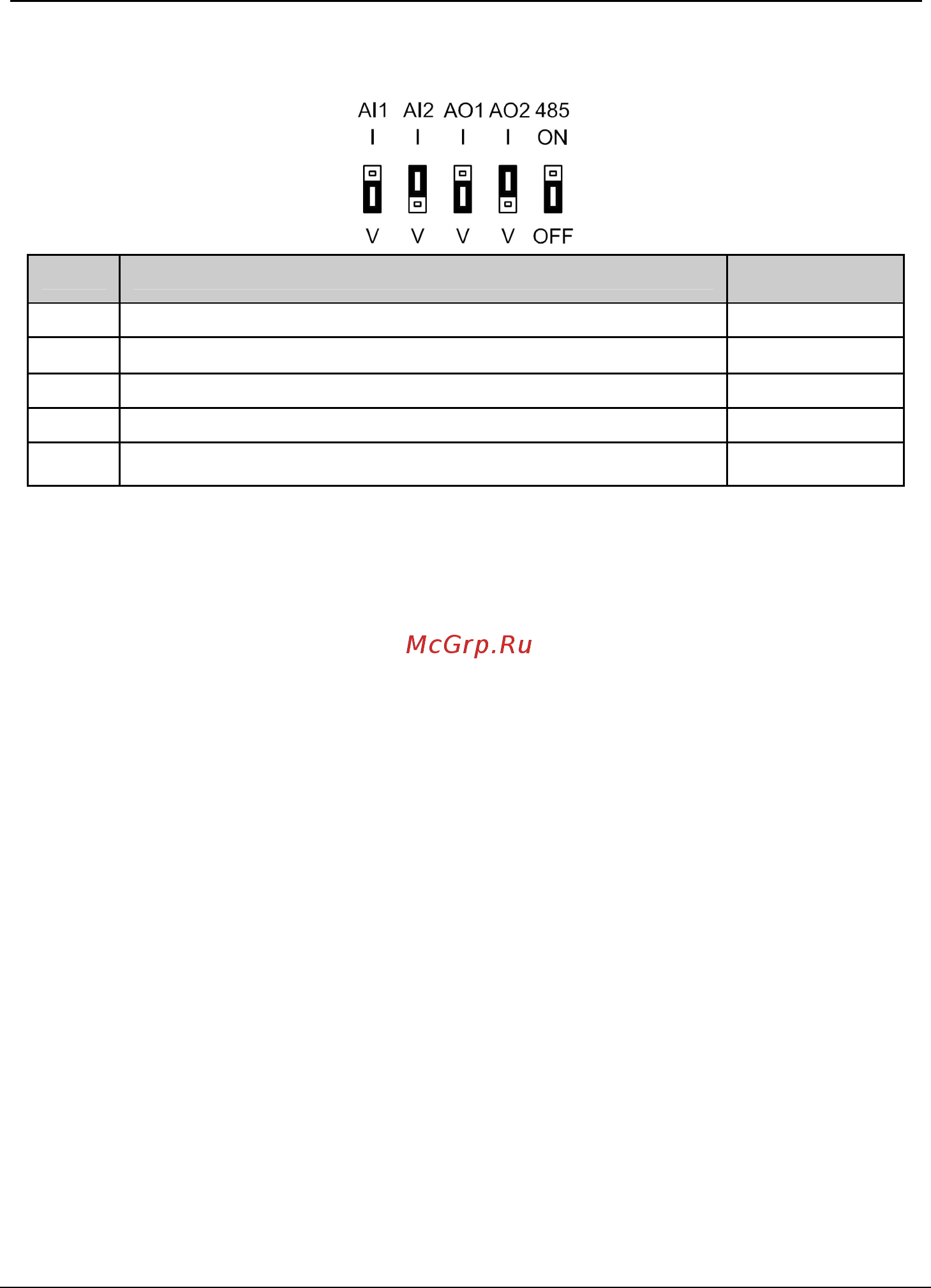

Jumper selecting switch in Fig.3-7:
Name Function
Leave-factory
setting
AI1 I is the current input (0~20mA), V is the voltage input (0~10V) 0~10V
AI2 I is the current input (0~20mA), V is the voltage input (0~10V) 0~20mA
AO1 I is the current output (0~20mA), V is the voltage output (0~10V) 0~10V
AO2 I is the current output (0~20mA), V is the voltage output (0~10V) 0~20mA
485
485 terminal resistor selection: ON: there is 100Ω terminal resistor, OFF: there
is no terminal resistor
There is no terminal
resistor
