Lubrication System

This engine uses a full pressure lubrication system which delivers oil under pressure to crankshaft, camshaft,

connecting rod bearing surfaces, and hydraulic valve lifters.

A high-eﬃ ciency gerotor oil pump maintains high oil ﬂ ow and oil pressure, even at low speeds and high operating

temperatures. A pressure relief valve limits maximum pressure of system. Closure plate must be removed to service

oil pickup, pressure relief valve, and oil pump.

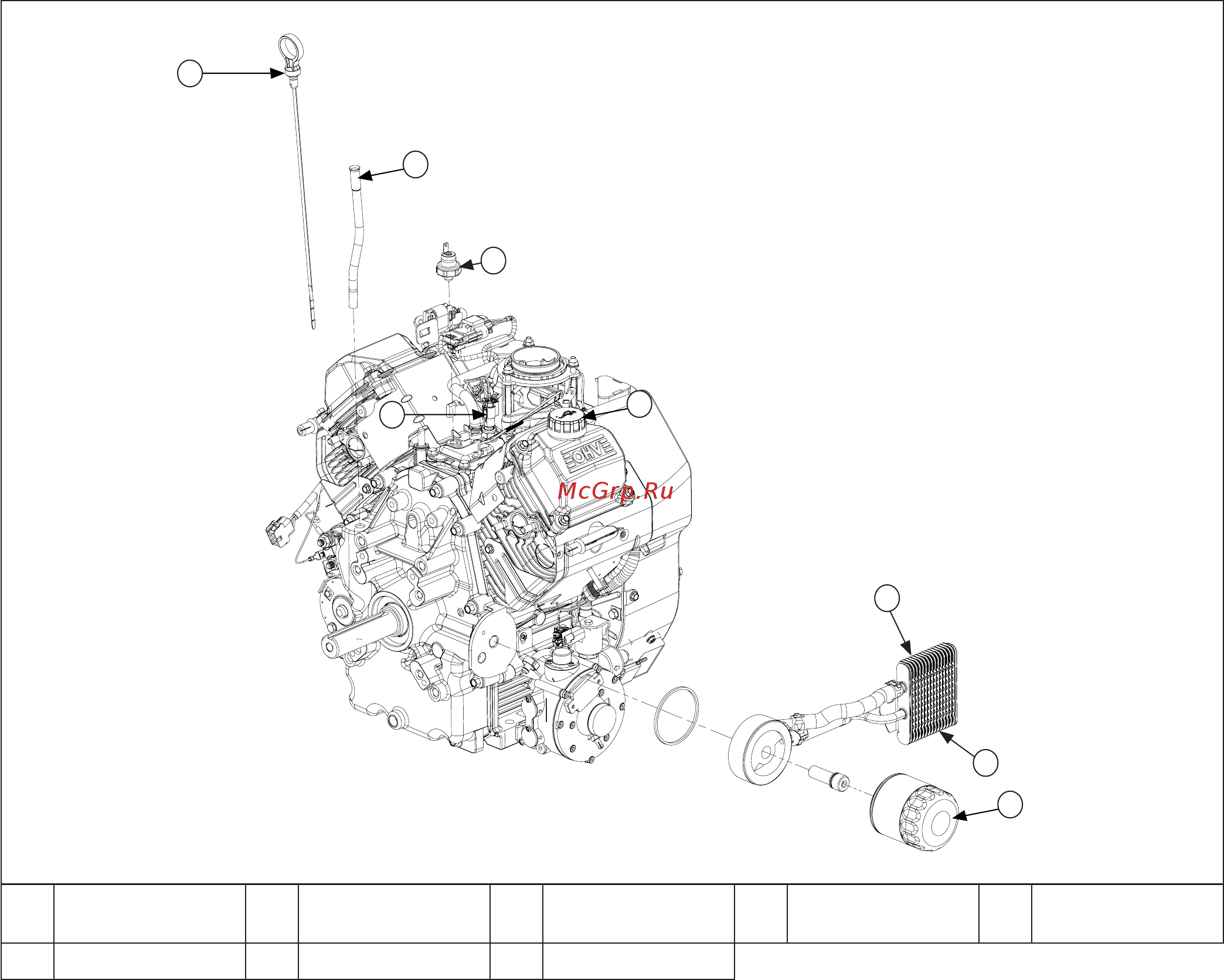

Lubrication Components

A Dipstick B Dipstick Tube C Oil Sentry

Oil Pressure

Switch

E Oil Fill

F Back Side G Oil Cooler H Oil Filter

OIL RECOMMENDATIONS

Refer to Maintenance.

CHECK OIL LEVEL

NOTE: To prevent extensive engine wear or damage,

never run engine with oil level below or above

operating range indicator on dipstick.

Ensure engine is cool. Clean oil ﬁ ll/dipstick areas of any

debris.

1. Remove dipstick; wipe oil oﬀ .

2. Reinsert dipstick into tube; press completely down.

3. Remove dipstick; check oil level. Level should be at

top of indicator on dipstick.

4. If oil is low on indicator, add oil up to top of indicator

mark.

5. Reinstall and secure dipstick.
