Kohler Command PRO EFI propane PCH680 [68/96] Disassembly inspection and service
![Kohler Command PRO EFI propane PCH680 [68/96] Disassembly inspection and service](/views2/1597961/page68/bg44.png)
1. Remove screw securing a ring terminal which is part of wiring harness.
2. Remove screws securing intake manifold to cylinder heads. Note which screws hold wiring clamp.
3. Unclasp wiring harness from clip using a screwdriver.
4. Remove intake manifold and intake manifold gaskets.
5. Leave high pressure fuel line and wiring harness attached to manifold.

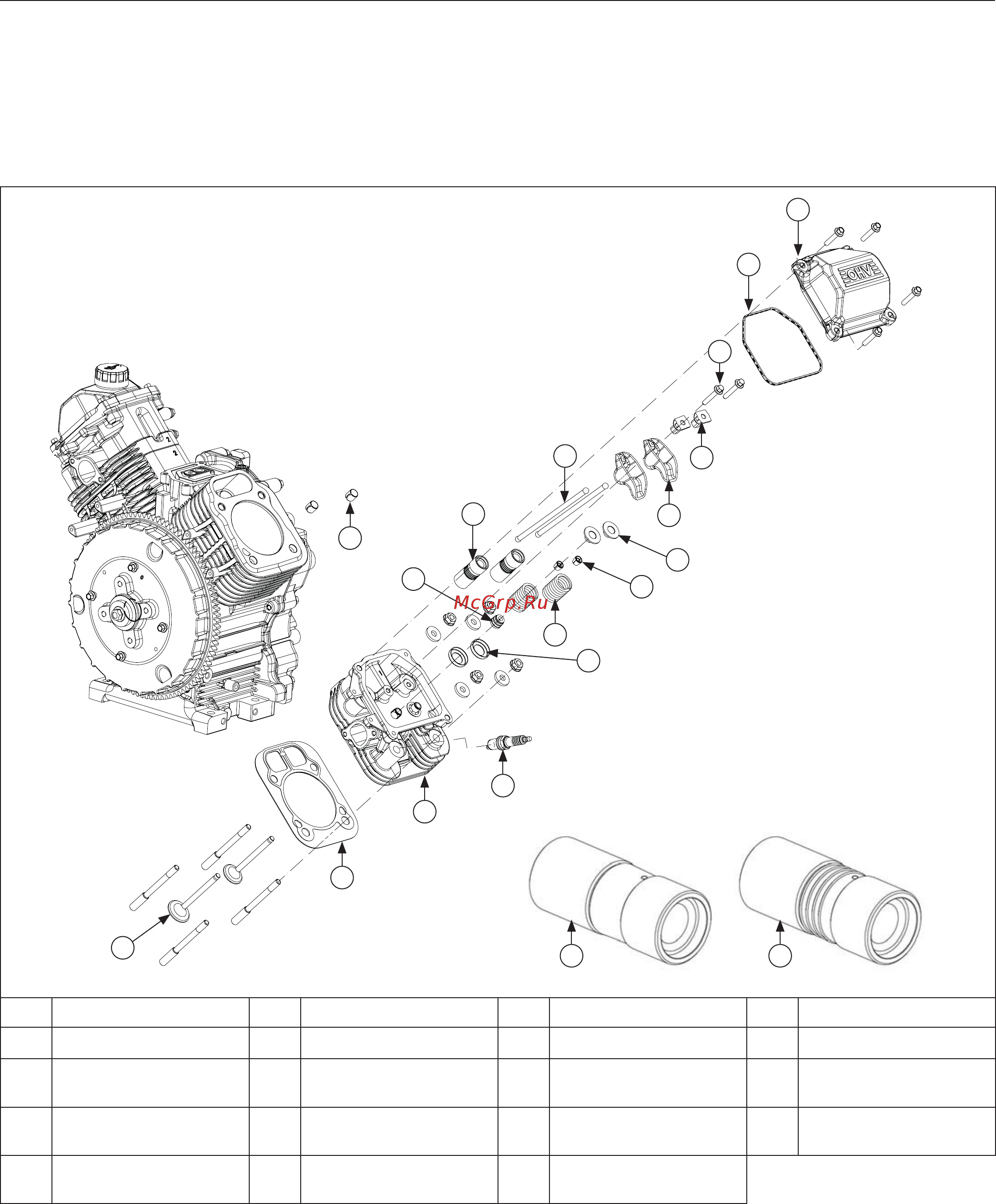

Cylinder Head Components
A
D
M
F
E
C
L
I
K
J
N
P
O
Q
B
G
Style AStyle B
RS
H
A Valve Cover B Valve Cover O-ring C Hex Flange Screw D Rocker Arm Pivot
E Rocker Arm F Push Rod G Hydraulic Lifter H Valve Cap
I Valve Keeper J Valve Spring K Valve Seal L
Valve Spring
Retainer
M Spark Plug N Cylinder Head O
Cylinder Head
Gasket
P Valve
Q Dowel Pin R
Hydraulic Lifter
Style A (Ribbed)
S
Hydraulic Lifter
Style B (Smooth)
Remove Intake Manifold
Disassembly/Inspection and Service
68 24 690 32 Rev. CKohlerEngines.com
