Kohler Command PRO EFI propane PCH680 [73/96] Disassembly inspection and service
![Kohler Command PRO EFI propane PCH680 [73/96] Disassembly inspection and service](/views2/1597961/page73/bg49.png)

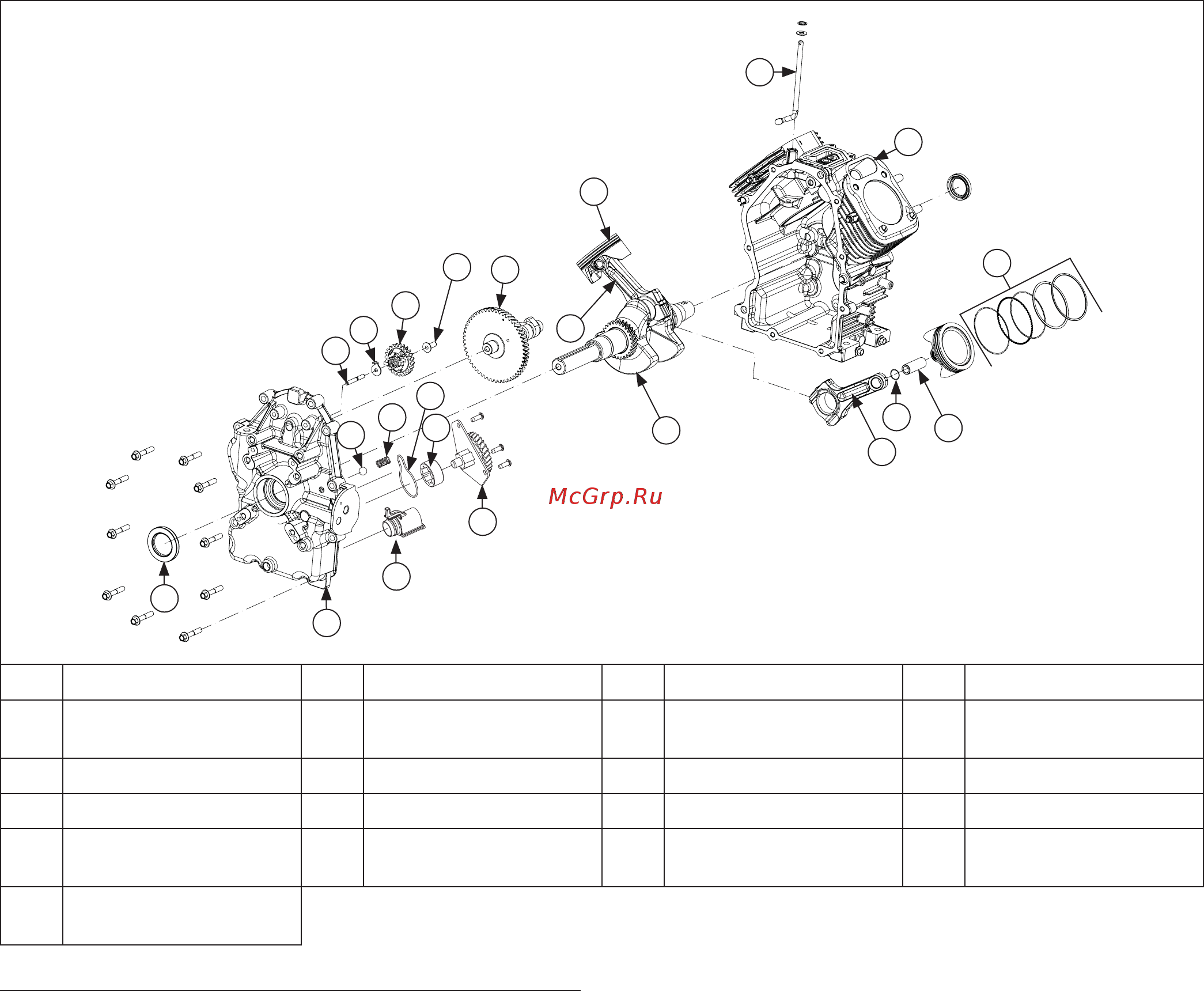

Crankcase Components
R
S
U
B
A
T
C
E
D
F
G
H
I
J
K
L
M
N
O
P
O
Q
A Closure Plate Seal B Closure Plate C Oil Pickup Tube D Oil Pump Assembly
E Ball F Spring G
Oil Pump Cover
O-ring
H Outer Gerotor Gear
I Governor Shaft J Governor Washer K Governor Gear L Governor Cup
M Camshaft N Crankshaft O Connecting Rod P Piston
Q
Piston Pin Retainer
Clip
R Piston Pin S Piston Rings T Crankcase
U
Governor Cross
Shaft
Remove Closure Plate Assembly
1. Remove screws securing closure plate to
crankcase.
2. Locate splitting tabs cast into perimeter of closure
plate. Insert drive end of a 1/2 in. breaker bar
between splitting tab and crankcase and turn it to
loosen seal. Do not pry on sealing surfaces as this
can cause leaks.
Inspection
Inspect oil seal in closure plate and remove it if it is worn
or damaged. Refer to Install Closure Plate Oil Seal in
Reassembly for new oil seal installation.
Inspect main bearing surface for wear or damage (refer
to Specifi cations). Replace closure plate assembly if
required.
Disassembly/Inspection and Service
7324 690 32 Rev. C KohlerEngines.com
