15

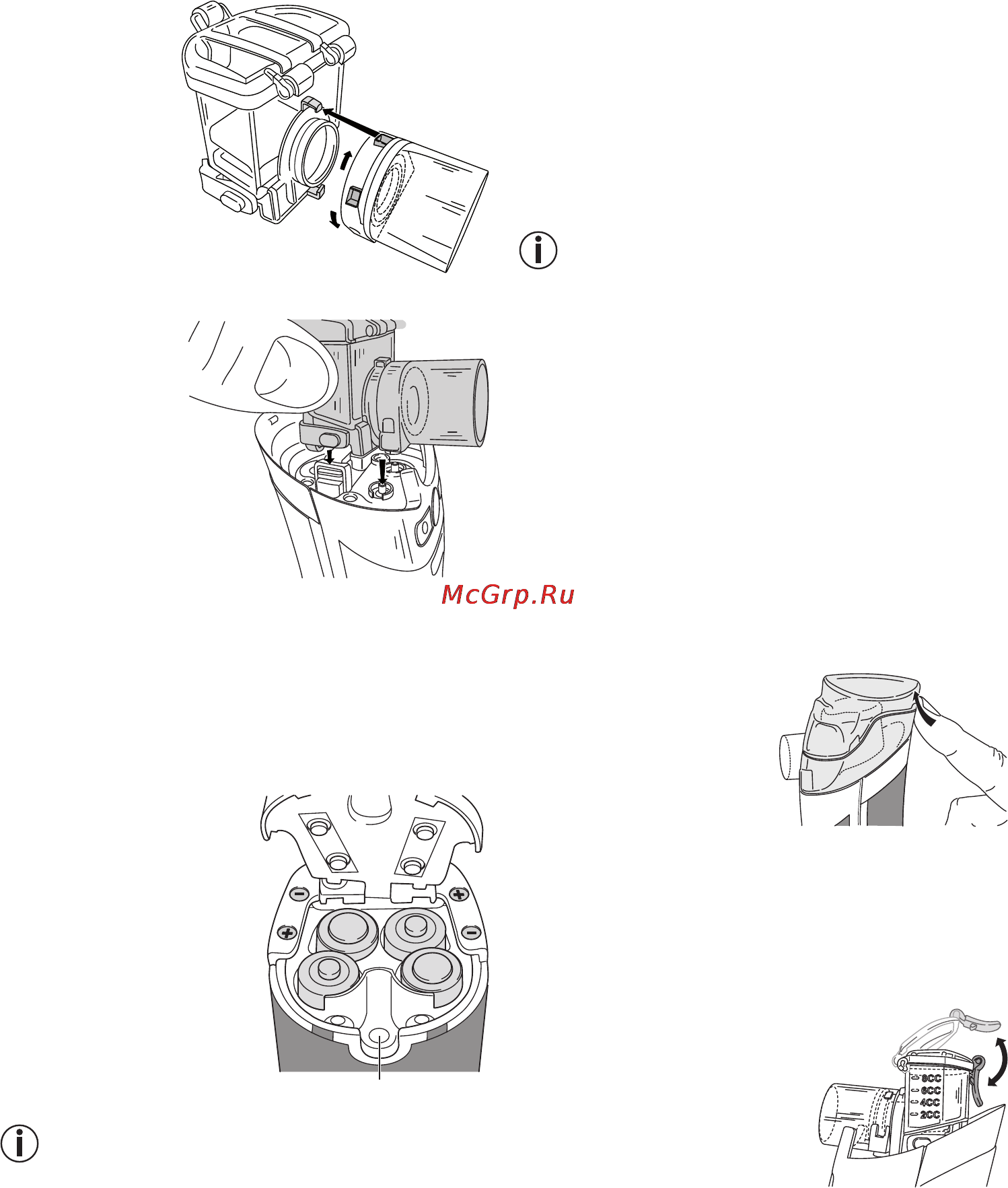

Assembly
Remove the unit from the packaging.
•
If not already fit-
ted, fit the mesh
atomiser (3)
onto the neck
of the container
(2), and lock the
neck in place by
turning it clock-
wise until the
gold-coloured
contact elec-
trodes are facing downwards.
•
Place the
container with
fitted mesh
firmly onto the
housing (6) or
base of the
device, so that
you hear it click
into place on the
left and right.
•
Insert the batteries.
Inserting the batteries
•
To open the battery compartment (7) on the under-
side of the device, apply light pressure and pull the
battery compartment cover in the direction of the ar-
rows, then fold the lid up.
•
Insert four batteries (type AA LR6).
•
Ensure that the poles of
the batteries are
touching their
respective poles in the
device (see illustration
on the bottom of the
casing).
•
Fold the battery com-
partment lid down again
and push it back in
place, in the opposite
direction to the arrows.
Note
•
When changing batteries, ensure that the medicine
container is completely empty, otherwise there is a
risk of leaks.
•
When the orange LEDs (4) light up, replace all four
batteries, because spraying becomes much less ef-
fective when the batteries are weak.
•
You can operate the device for approx. 180minutes
with new alkaline batteries.
•
This is sufficient for 5 – 9 uses of saline solution (de-
pending on the dose and duration of each use).
Operating the device with the power pack
Only connect the power pack (13) to the mains voltage
listed on the type plate.
•
Open the battery compartment lid to connect the
power pack (13).
•
Insert the power pack connector (8) into the connec-
tion socket provided (15), and the power pack (13)
fully into a suitable socket.
Note
•
Ensure that there is a socket near to where the unit
will stand.
•
Lay the mains cable in such a way that no one can
trip over it.
•
To disconnect the nebuliser from the mains after use,
first switch off the device and then remove the plug
from the socket.
•
Do not remove the batteries when operating the de-
vice with the power pack (13).
•
The power pack (13) cannot be used for charging
batteries.
7. Operation
1. Preparing the atomiser
•
For reasons of hygiene,
it is imperative that the
atomiser and accompa-
nying accessories are
cleaned and disinfected
after every use.
If the therapy requires
that various different medicines be inhaled in suc-
cession, ensure that the atomiser is rinsed after
every use. For details, see Cleaning and disinfec-
tion on page 16.
•
Remove the cover (1) from the device.
2. Filling the atomiser
•
Open the medicine container
(2) by opening the clip, and fill
the medicine container with
an isotonic saline solution or
medicine. Do not overfill! The
maximum recommended fill
amount is 8 ml.
•
Use medication only on the advice of a physician,
and check the appropriate inhalation duration and
quantity for your needs.
•
If the recommended dose of the medicine is less
than 2 ml, top up this quantity to at least 4 ml using
only isotonic saline solution. Viscous medicines may
15
