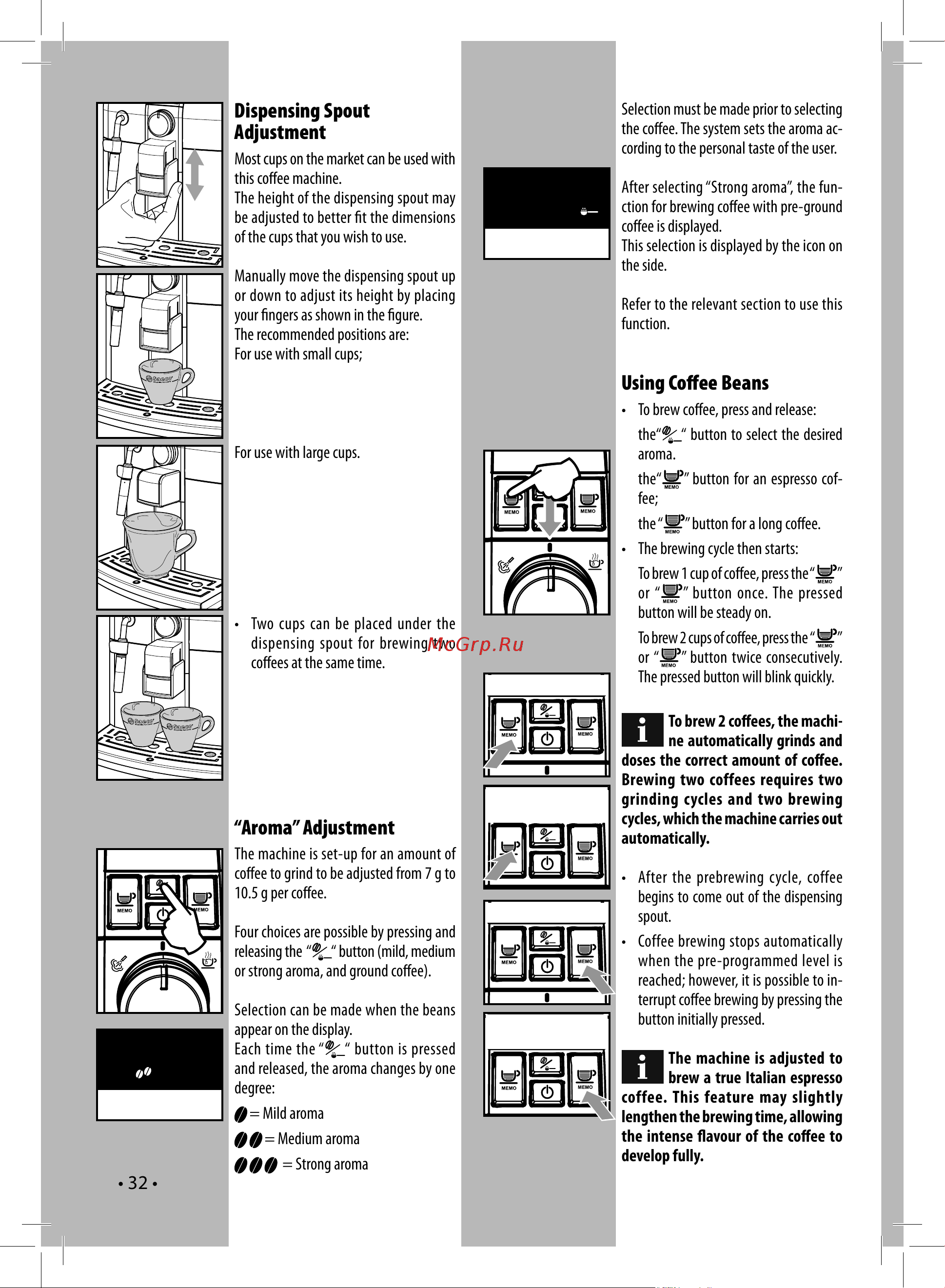

Philips Saeco SYNTIA [12/23] Dispensing spout adjustment
![Philips Saeco SYNTIA [12/23] Dispensing spout adjustment](/views2/1060780/page12/bgc.png)
• 32 •• 32 •
Dispensing Spout
Adjustment
Most cups on the market can be used with
this co ee machine.
The height of the dispensing spout may
be adjusted to better t the dimensions
of the cups that you wish to use.
Manually move the dispensing spout up
or down to adjust its height by placing
your ngers as shown in the gure.
The recommended positions are:
For use with small cups;
For use with large cups.
Selection must be made prior to selecting
the co ee. The system sets the aroma ac-
cording to the personal taste of the user.
After selecting “Strong aroma”, the fun-
ction for brewing co ee with pre-ground
co ee is displayed.
This selection is displayed by the icon on
the side.
Refer to the relevant section to use this
function.
Using Coff ee Beans
• To brew co ee, press and release:
the“
“ button to select the desired
aroma.
the“
” button for an espresso cof-
fee;
the “
” button for a long co ee.
• The brewing cycle then starts:
To brew 1 cup of co ee, press the “
”
or
“ ” button once. The pressed
button will be steady on.
To brew 2 cups of co ee, press the
“ ”
or
“ ”
button twice consecutively.
The pressed button will blink quickly.
To brew 2 co ees, the machi-
ne automatically grinds and
doses the correct amount of co ee.
Brewing two coffees requires two
grinding cycles and two brewing
cycles, which the machine carries out
automatically.
• After the prebrewing cycle, coffee
begins to come out of the dispensing
spout.
• Coffee brewing stops automatically
when the pre-programmed level is
reached; however, it is possible to in-
terrupt co ee brewing by pressing the
button initially pressed.
The machine is adjusted to
brew a true Italian espresso
coffee. This feature may slightly
lengthen the brewing time, allowing
the intense avour of the co ee to
develop fully.
• Two cups can be placed under the
dispensing spout for brewing two
co ees at the same time.
“Aroma” Adjustment
The machine is set-up for an amount of
co ee to grind to be adjusted from 7 g to
10.5 g per co ee.
Four choices are possible by pressing and
releasing the “
“ button (mild, medium
or strong aroma, and ground co ee).
Selection can be made when the beans
appear on the display.
Each time the “
“ button is pressed
and released, the aroma changes by one
degree:
= Mild aroma
= Medium aroma
= Strong aroma
Steady on
Steady on
Steady on = 1 espresso
Steady on = 1 co ee
Quick blinking =
2 cups of espresso
Quick blinking =
2 cups of co ee
Регулирование высоты
крана
Большинство кружек могут
быть использованы в этом
аппарате.
Высота крана может быть
отрегулирована.
Вручную двигайте кран вверх
и вниз, чтобы максимально
адаптировать его высоту к
высоте кружки.
Рекомендованная позиция:
Для использования с мелкими
чашками;
Для использования с
крупными
чашками.
* Под краном могут быть
установлены две чашки
одновременно для
приготовления двух чашек
кофе.
Регулирование "Aroma"
Кофейный аппарат
позволяет регулировать
объём кофе для перемолки
от 7г до 10,5г для одного
кофе.
Для выбора доступны 4
варианта с помощью
нажатия на клавишу
(мягкое, среднее и грубое
перемалывание, молотый
кофе)
Выбор может быть сделан
когда зерна кофе
отображены на дисплее.
Каждый раз при нажатии
на кнопку функция Aroma
изменяется на одно деление:
Мягкое перемалывание
Среднее перемалывание
Грубое
перемалывание
Установка должна быть сделана
ДО выбора кофе. Система
устанавливает функцию
Aroma согласно собственному
вкусу пользователя.
После выбора "Грубое
перемалывание" на дисплее
отображается функция
приготовления молотого кофе.
Использование кофейных
зёрен
* Чтоб приготовить кофе, нажмите
и отпустите:
, чтобы выбрать желаемый
аромат
, чтобы выбрать эспрессо
, чтобы выбрать кофе
Чтобы приготовить 1 чашку кофе,
один раз нажмите кнопку
или .
Чтоб приготовить 2 чашки кофе,
нажмите на каждую из этих кнопок
поочерёдно.
Нажатая кнопка будет быстро
мигать.
Для приготовления 2 чашек
кофе аппарат автоматически
дозирует необходимое кол-во
кофе. Для этого необходимо
провести два цикла перемолки
и два цикла приготовления,
которые аппарат производит
автоматически.
* После цикла предварительной
перемолки кофе начинает
подаваться через кран
приготовления.
* Процесс приготовления кофе
завершается автоматически,
когда запрограммированный
уровень достигнут; однако, есть
возможность остановить цикл
приготовления, нажав на
кнопку приготовления.
Аппарат позволяет
приготовить настоящий
итальянский эспрессо. Эта
функция может немного
продлить время
приготовления.
