Philips Saeco SYNTIA [20/23] Дисплей панели управления
![Philips Saeco SYNTIA [20/23] Дисплей панели управления](/views2/1060780/page20/bg14.png)
• 40 •• 40 •

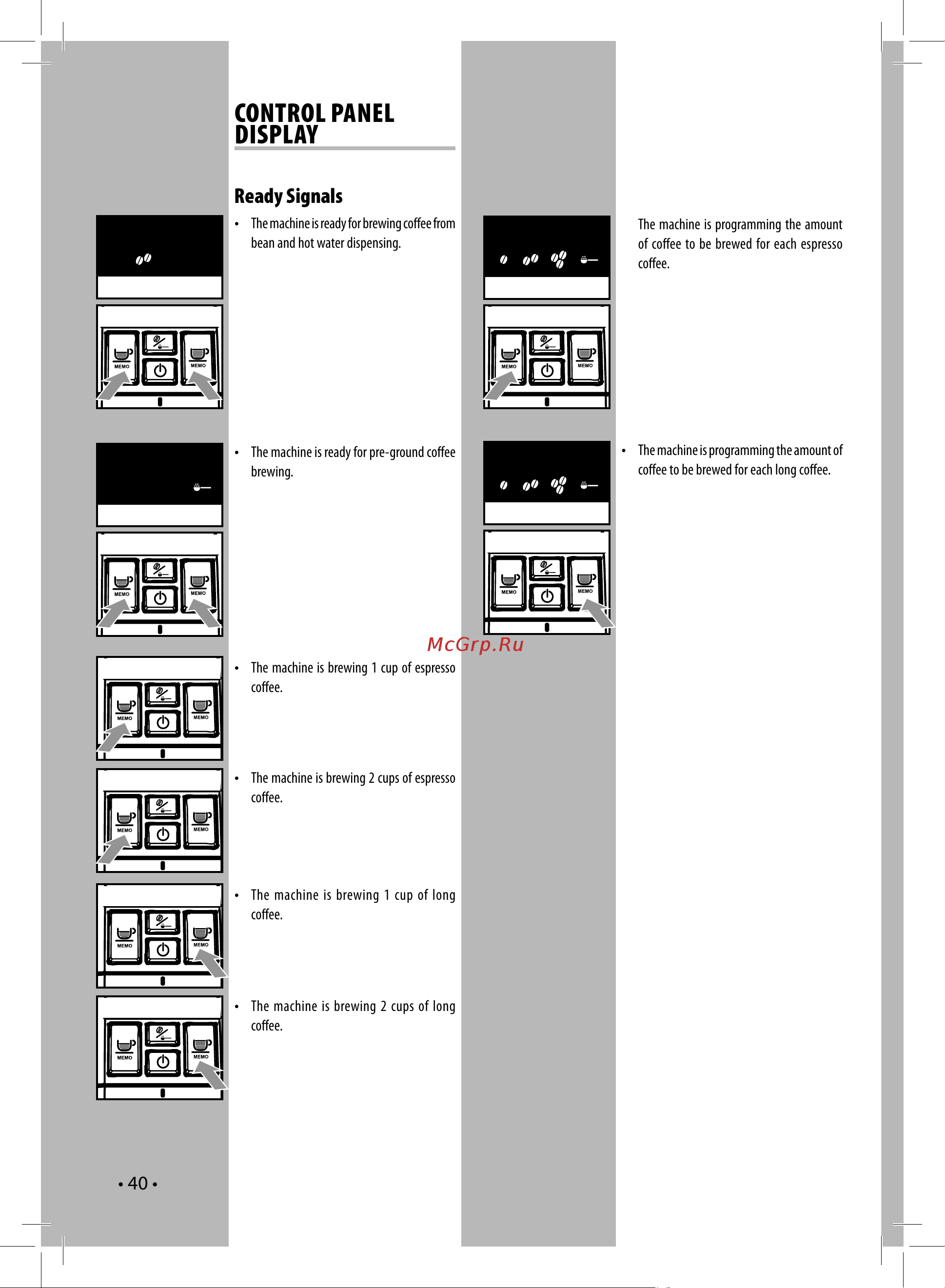

CONTROL PANEL
DISPLAY
Ready Signals
• The machine is ready for brewing co ee from
bean and hot water dispensing.
• The machine is ready for pre-ground co ee
brewing.
• The machine is programming the amount
of co ee to be brewed for each espresso
co ee.
• The machine is programming the amount of
co ee to be brewed for each long co ee.
Steady on
Steady on
Blinking
Blinking
Steady on
Steady on
Steady on
Blinking
Blinking
Steady on
Quick blinking
Quick blinking
• The machine is brewing 1 cup of espresso
co ee.
• The machine is brewing 1 cup of long
co ee.
• The machine is brewing 2 cups of long
co ee.
• The machine is brewing 2 cups of espresso
co ee.
ДИСПЛЕЙ ПАНЕЛИ
УПРАВЛЕНИЯ
Сигналы готовности
Аппарат готов к
приготовлению кофе из
зёрен и приготовлению
горячей воды.
Аппарат готов к
приготовлению напитка
из молотого кофе.
Аппарат готов к
приготовлению 1 чашки
эспрессо.
Аппарат готов к
приготовлению 2 чашек
эспрессо.
Аппарат готов к
приготовлению 1 чашки
кофе.
Аппарат готов к
приготовлению 2 чашек
кофе.
Аппарат программирует
количество кофе для каждой
порции эспрессо.
Аппарат программирует
количество кофе для каждой
порции кофе.
20
