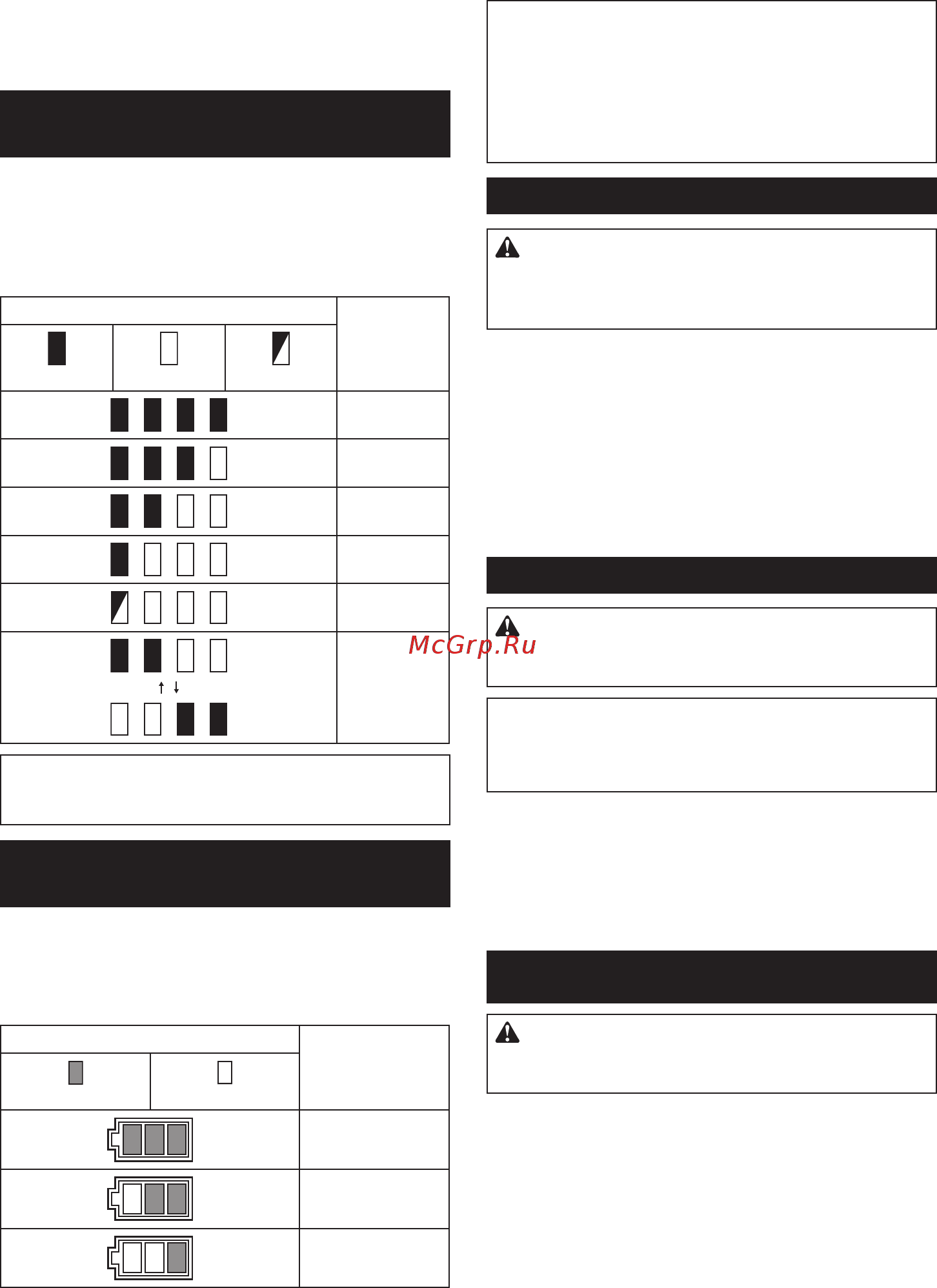

9 ENGLISH
In this situation, the tool does not start even if turning
the tool off and on. To release the protection lock,
remove the battery, set it to the battery charger and wait
untilthechargingnishes.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
►Fig.3: 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
Indicating the remaining battery
capacity
When you pull the switch trigger, the LED display shows
the remaining battery capacity. The remaining battery
capacity is shown as the following table.
►Fig.4: 1. Battery indicator
Battery indicator status Remaining battery
capacity
On
Off
50% to 100%
20% to 50%
0% to 20%
NOTE: The LED display goes off approximately one
minute after releasing the switch trigger.
NOTE: When the LED display lights up and the tool
stops even with a recharged battery cartridge, cool
down the battery cartridge fully. If the status will not
change, stop using and have the tool repaired by a
Makita local service center.
Switch action
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
To unlock the switch trigger, push the lock lever from A
side. To lock the switch trigger, push the lock lever from
B side. Always lock the switch trigger when not in use.
To start the cutting operation, pull the switch trigger. The
cutter rod will move toward the cutter head. Continuing to
hold the switch trigger down brings the cutter rod to the full
forward stroke position. After releasing the switch trigger,
the cutter rod will automatically return to the start position.
►Fig.5: 1. Switch trigger 2. Lock lever
Using the balance stand
CAUTION: Always remove the balance stand
when working while holding the threaded rod
cutter by hand.
NOTICE: Since the balance stand is made of
rubber and only meant to function as a stand, do
not bend it by putting unnecessary pressure on it.
It may get bent, making it unusable.
1. Install the balance stand on the leveler sack cover.
2. Positiontheatsurfaceofthebalancestandtobe
level with the ground.
►Fig.6: 1. Leveler sack cover 2. Balance stand
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
