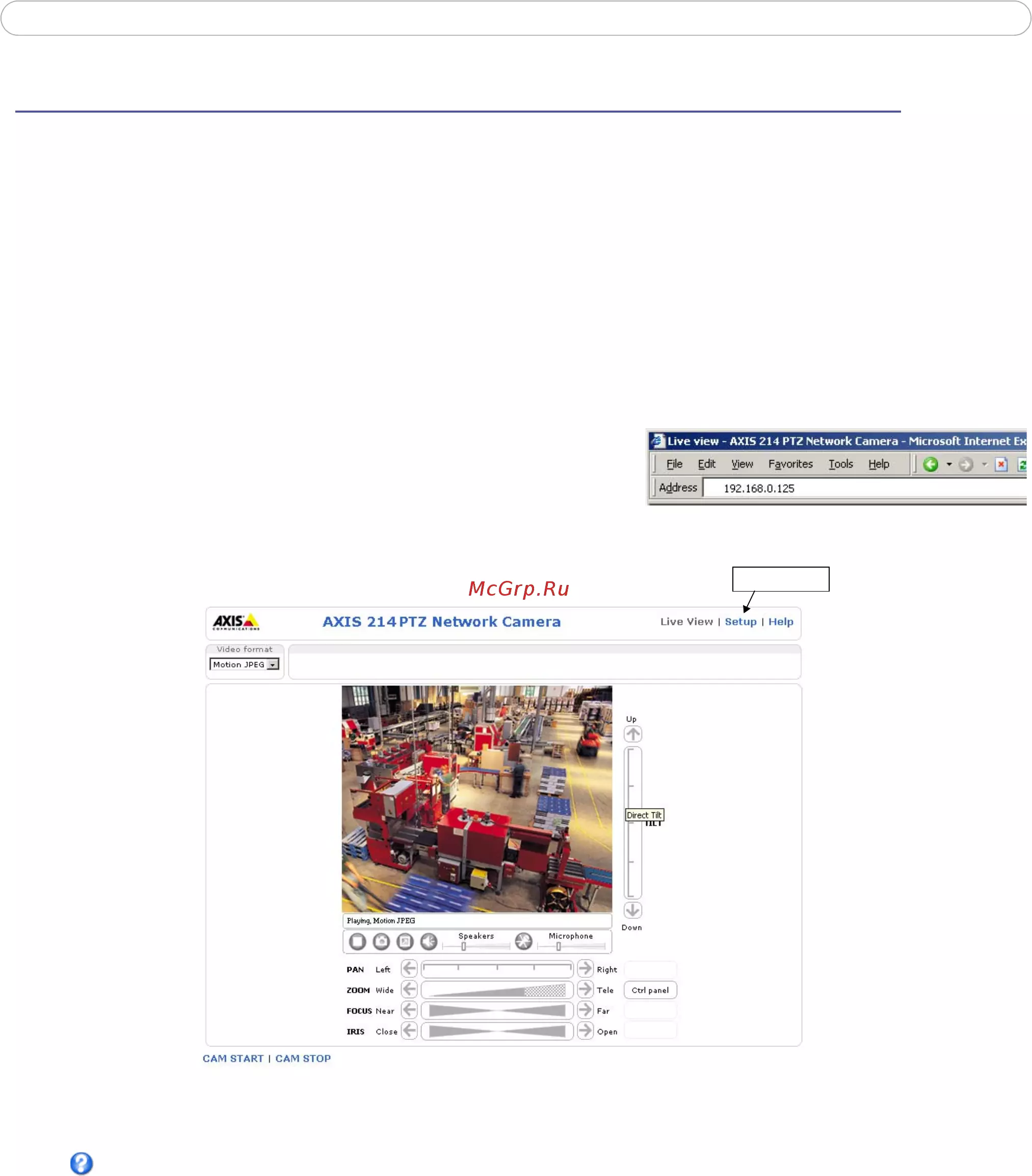

AXIS 214 PTZ
Video & Image settings

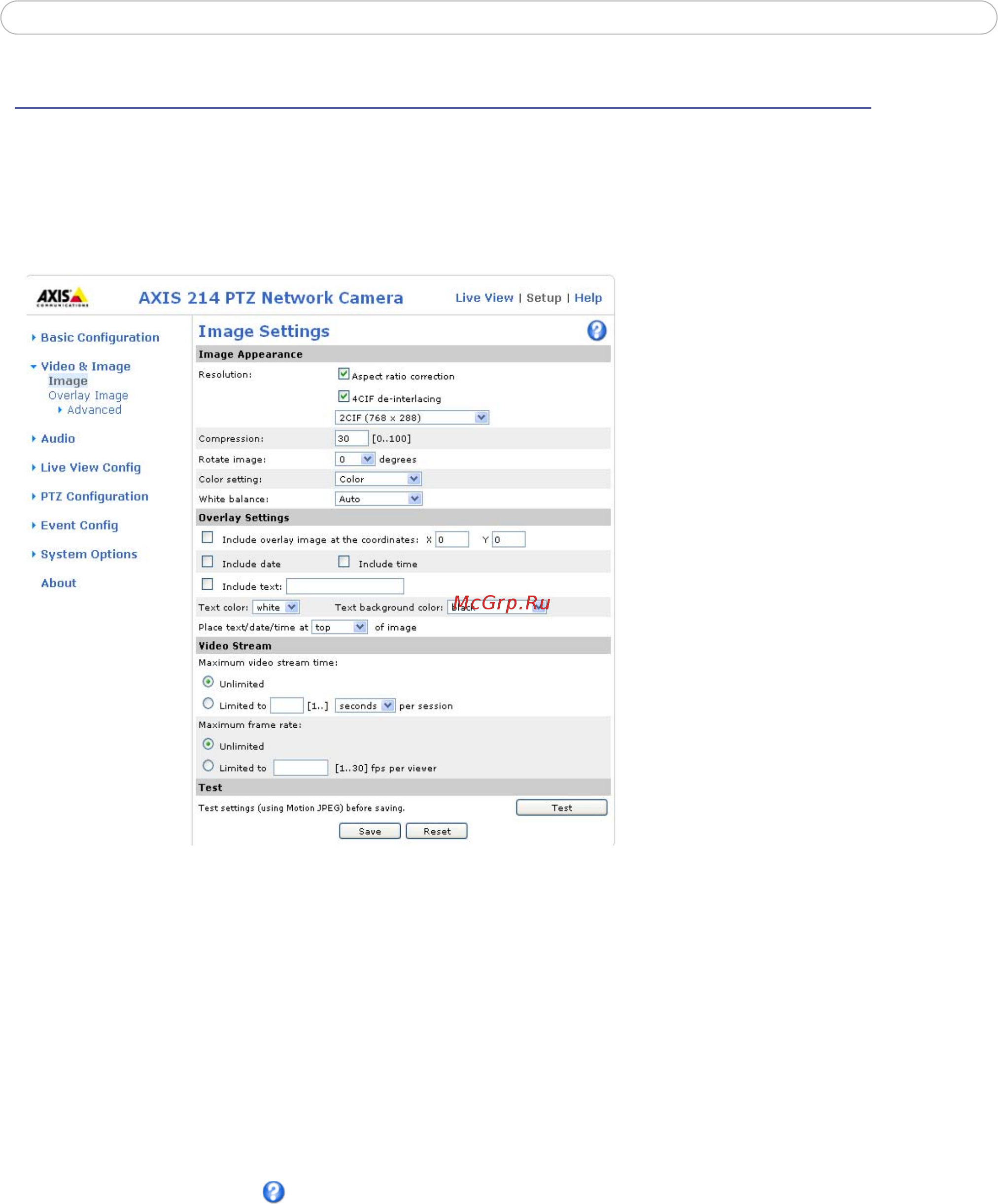

Image Appearance

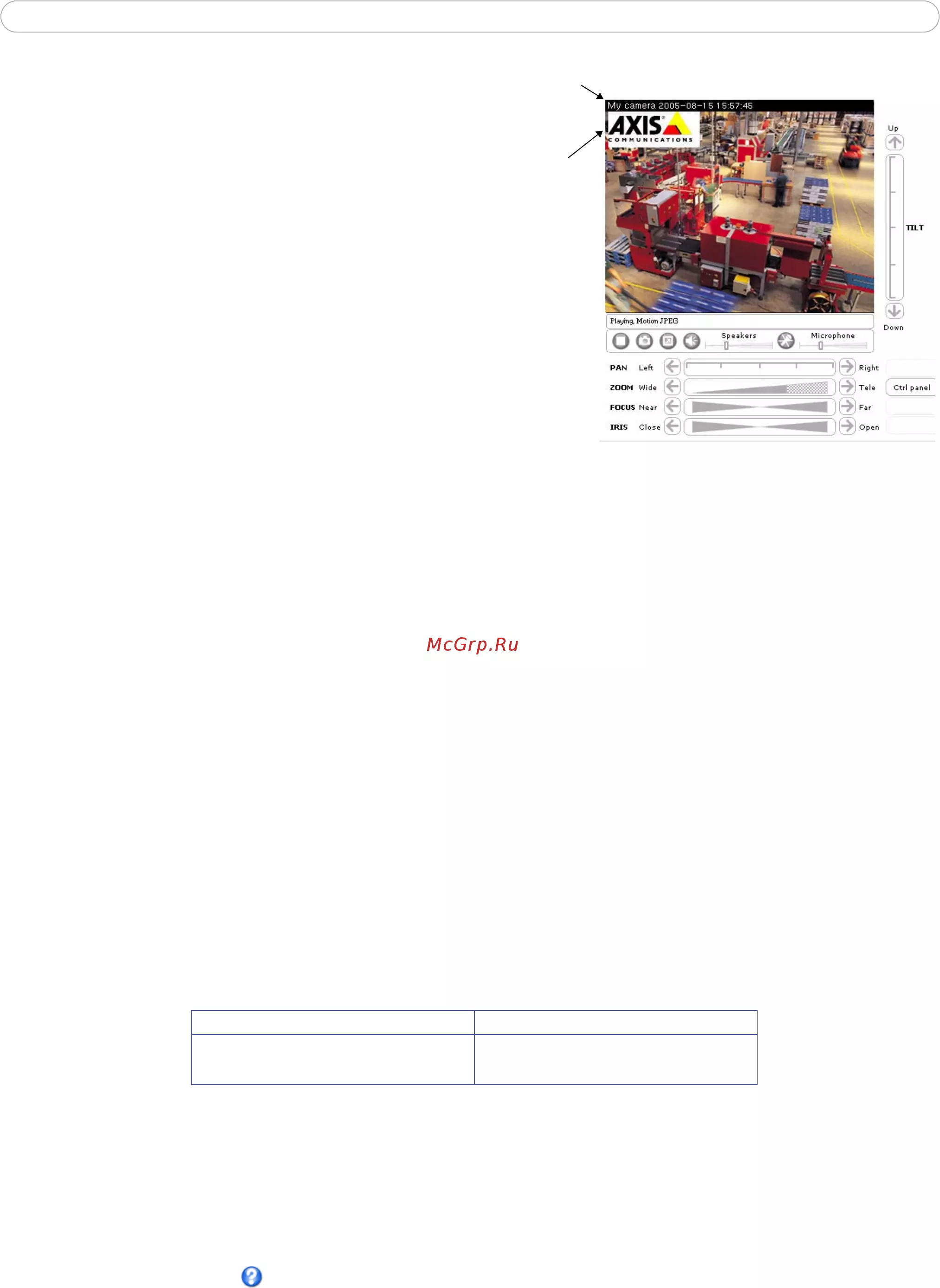

Adjust these settings to optimize the video images according to your
requirements.
All configuration of images and overlays will affect the performance of
the camera, depending on usage
and the available bandwidth.
Use these settings to adjust:
• Im
age resolution - select the image resolution that will define all image streams.
• Image compress
ion - increase compression to save on bandwidth.
• Image rotation - rotate the image in steps of 90 d
egrees.
• Color setting - Select either Color or Black & White.
Black & White uses less bandwidth than
Color.
• Wh
ite balance - the white balancing system automatically detects white in the image and intelli-
gently use this as a reference for other colors.
Please see the online help for more information on these settings.
Note:
In certain situations, the white balancing system will not operate effectively. Problems may occur if the image contains no white
color at all, or if the dominant color is not white. In these circumstances, the white balance may incorrectly be based on another
visible color in the image, and colors may become distorted. A pale background picture with reddish or blue foreground objects is
very symptomatic of this condition. In such cases it is recommended that a fixed white balance setting is selected.
