AXIS 214 PTZ
Own Home Page
To use a previously uploaded web page as the default page,
c
heck the checkbox, select the page from the drop-down
list and click OK.
Default Video Format - select default video format from
the drop-down list.
Check the box to enable video format
selection from the Live View Page.
Default Video Format
Select default video format from the drop-down list.
Check
the box to enable video format selection from the Live
View Page.
Default Viewer
When using Microsoft Internet Explorer (IE) for Windows,
s
elect your preferred method of viewing moving images.
The options are:
• AMC (ActiveX) - the best choice for fast image updating in Internet Explorer for
Windows, but
might not be possible on computers that have restriction on the installation of additional software.
• QuickTime - for use with MPEG-4 only, select this to use the QuickTime
plug-in for Microsoft
Internet Explorer.
• Java applet - this alternative uses a Java applet to update
the images in the browser.
• Still Image - displays still images only. Refresh your
browser to view a new image.
When using any other browser than Internet
Explorer for Windows, select the appropriate method from the
drop-down list for viewing images. The available options are similar to Internet Explorer except for Server
Push. With this method, the camera maintains and controls an open HTTP connection to the browser and
sends data as and when required for as long as required. Please see the online help for more
information.
Viewer settings
Show viewer toolbar - uncheck to remove the viewer to
olbar from the Live View page.
Enable MPEG-4 decoder installation - enables/disables the installation of
the MPEG-4 decoder included
with AMC.
Show crosshair in PTZ joystick mode - enables/disables a
red position indicator in the center of the image
when the joystick navigation mode is selected.
Use PTZ joystick mode as default - enabling this sets the PTZ mode to joystick. The mode can temporarily
be chan
ged on the Live View page, but will default to joystick if selected.
Enable recording button - enables recording directly from the Live View page. The recording is
saved in the
folder specified in the Recording tab in the AMC Control Applet. Note that this button is only available
when viewing with AMC.
Action Buttons
These buttons can be used to manually trigger and stop
an event from the Live View page. For more
information, see Event
servers, on page 27.
The snapshot button allows users to take
a snapshot of the video stream and save it on a computer.

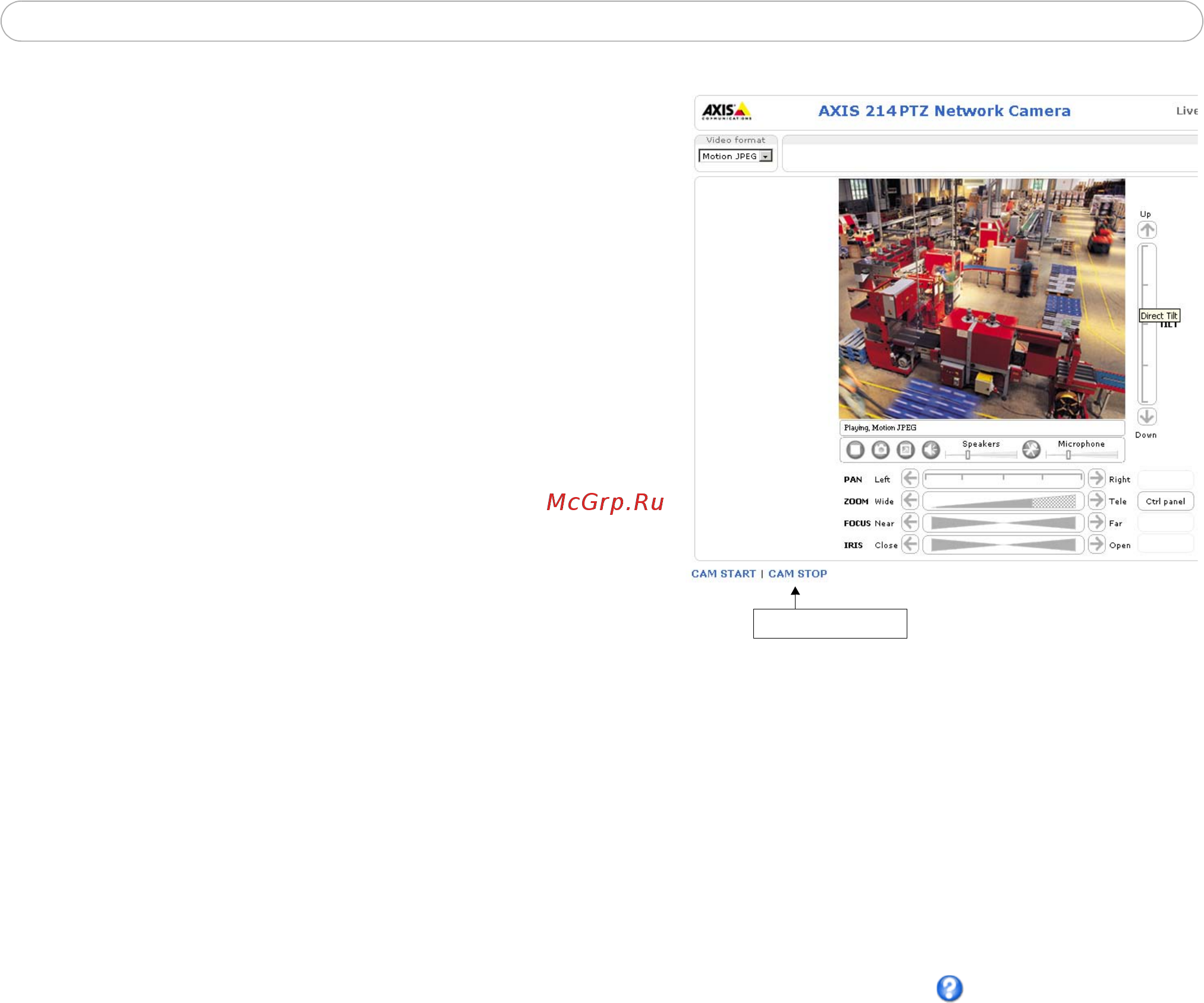

User Defined Links
Enter a descriptive name and enter the URL in the provi
ded field. The link will appear on the Live View
page.
User defined CGI links can be used to issu
e HTTP API requests, e.g. PTZ commands.
User-defined links
