Ricoh Aficio SP C811DN [158/384] Memory erase status menu

Memory Erase Status Menu

Displays data status inside the memory.

• Memory Erase Status Menu appears only when the optional security card is installed.

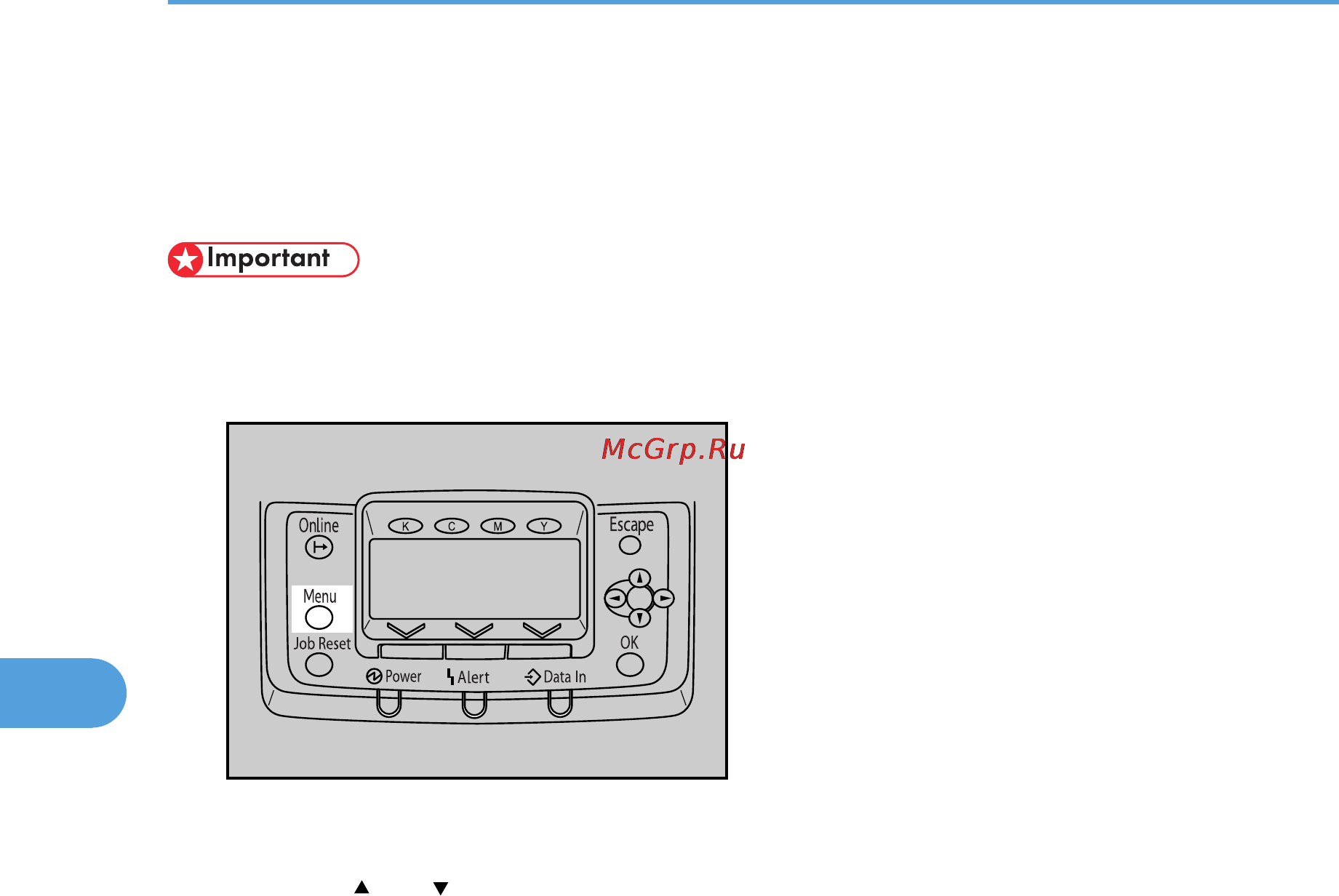

1. Press the [Menu] key.

ATU050S

The menu screen appears.

2. Press the [ ] or [ ] key to display [Memory Erase Status], and then press the [OK] key.

3. Displays [Data to erase remaining.] if there is data remaining inside the memory, displays

[Currently no data to erase.] if there is no data inside the memory, and displays [Erasing

Data...] when the data is being deleted.

4. Press the [OK] key.

The menu screen appears.

5. Press the [Online] key.

The initial screen appears.

5. Making Printer Settings Using the Control Panel

156
