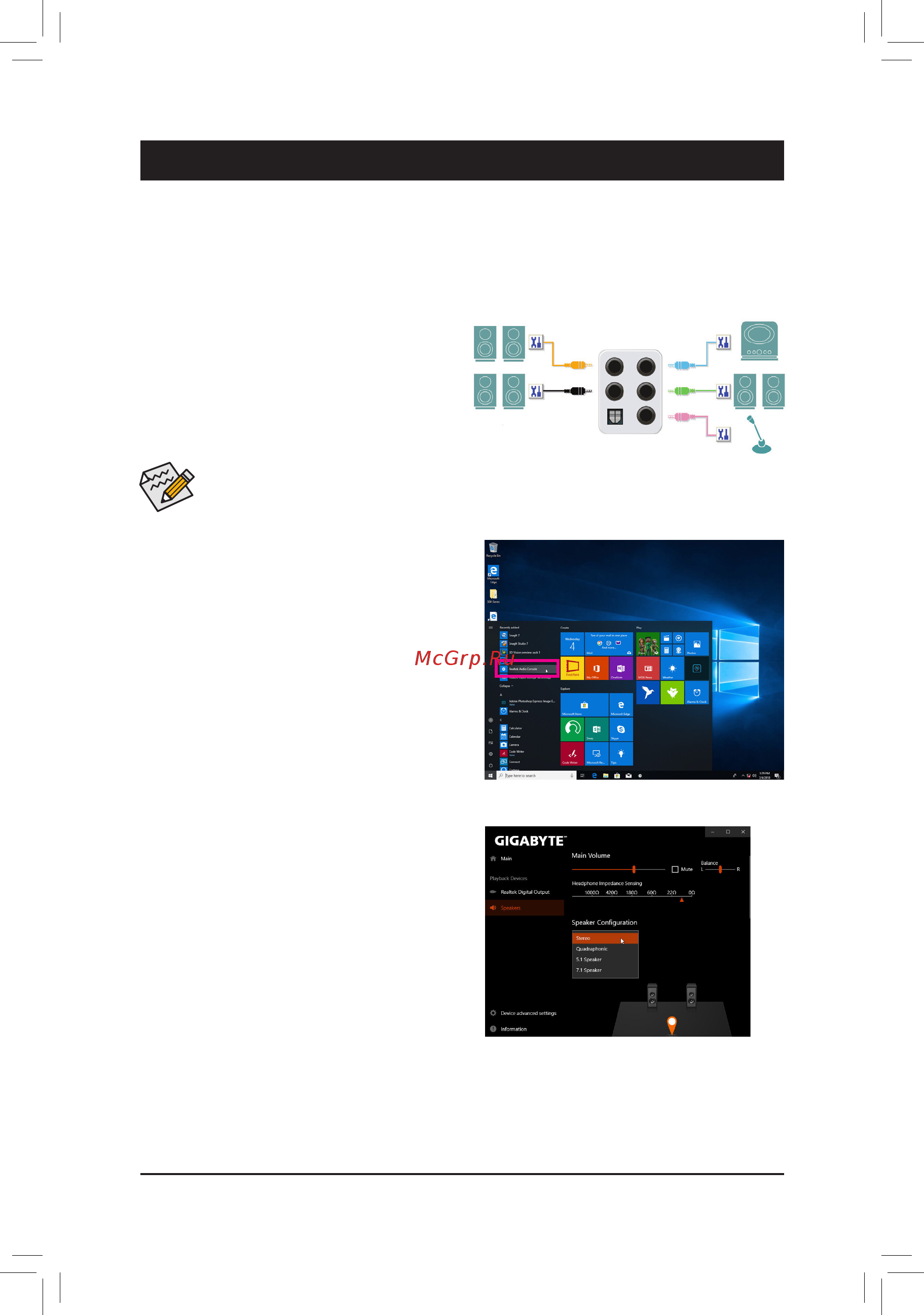

- 103 -
Appendix
Chapter 6 Appendix
6-1 ConguringAudioInputandOutput
A. Configuring Speakers
Step 1:
Go to the Start menu click the Realtek Audio Console.
To configure 4/5.1/7.1-channel audio, you have to retask the Line in jack to be Side speaker out
through the audio driver.
6-1-1 Conguring2/4/5.1/7.1-ChannelAudio
The motherboard provides five audio jacks on the back
panel which support 2/4/5.1/7.1-channel
(Note)
audio.
The picture to the right shows the default audio jack
assignments.
Center/Subwoofer
Speaker Out
Line In
Rear Speaker Out
Front Speaker Out
Mic In
After you install the included motherboard drivers, make sure your Internet connection works properly. the system
will automatically install the audio driver from Microsoft Store. Restart the system after the audio driver is installed.
Step 2:
On the Speakers screen, click the Speaker Configuration
tab. In the Speaker Configuration list, select Stereo,
Quadraphonic, 5.1 Speaker, or 7.1 Speaker according
to the type of speaker configuration you wish to set up.
Then the speaker setup is completed.
