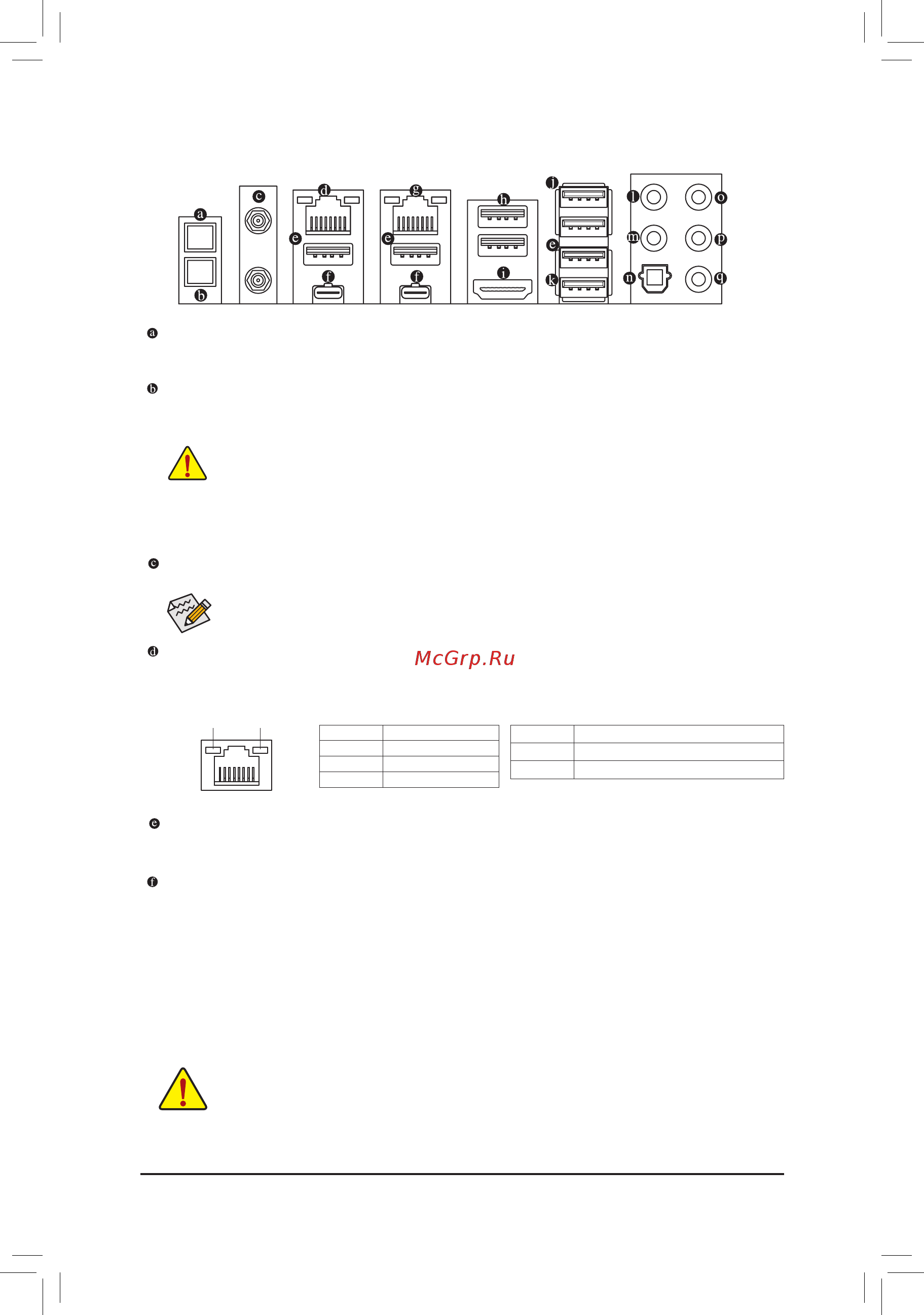

1-7 Back Panel Connectors

Q-Flash Plus Button

(Note)

This button allows you to update the BIOS when the power connector is connected but the system is not

powered on.

Clear CMOS Button

UsethisbuttontocleartheCMOSvalues(e.g.BIOSconguration)andresettheCMOSvaluestofactory

defaults when needed.

SMA Antenna Connector (2T2R)

Use this connector to connect an antenna.

RJ-45 LAN Port (LAN2)

The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following

describes the states of the LAN port LEDs.

(Note) To enable Q-Flash Plus function, refer to Chapter 5, "Unique Features," for more information.

• Always turn off your computer and unplug the power cord from the power outlet before using

the clear CMOS button.

• Do not use the clear CMOS button when the system is on, or the system may shutdown and

data loss or damage may occur.

• After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or

manuallyconguretheBIOSsettings(refertoChapter2,"BIOSSetup,"forBIOScongurations).

Tighten the antennas to the antenna connectors and then aim the antennas correctly for better

signal reception.

USB 3.2 Gen 2 Type-A Port (Red)

TheUSB3.2Gen2Type-AportsupportstheUSB3.2Gen2specicationandiscompatibletotheUSB

3.2Gen1andUSB2.0specication.UsethisportforUSBdevices.

Thunderbolt

™

3 Connector (USB Type-C

™

Port)

The connector supports standard DisplayPort and Thunderbolt

™

video outputs. You can connect a standard

DisplayPort/Thunderbolt

™

monitor to this connector with an adapter. The Thunderbolt

™

connector can

daisy chain up to six Thunderbolt

™

devices. Because of the limited I/O resources of the PC architecture,

the number of Thunderbolt

™

devices that can be used is dependent on the number of the PCI Express

devices being installed. You can adjust the Thunderbolt

™

settings under Settings\IO Ports\Thunderbolt(TM)

CongurationinBIOSSetup.Themaximumsupportedresolutionis5120x2880@60Hzwith24bpp,but

the actual resolutions supported are dependent on the monitor being used. Also, the connector is revers-

ibleandsupportstheUSB3.2Gen2specicationandiscompatibletotheUSB3.2Gen1andUSB2.0

specication.YoucanusethisportforUSBdevices,too.

• Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour

device and then remove it from the motherboard.

• When removing the cable, pull it straight out from the connector. Do not rock it side to side to

prevent an electrical short inside the cable connector.

Activity LED

Connection/

Speed LED

LAN Port

Connection/Speed LED:

State Description

Green 2.5 Gbps data rate

Orange 1 Gbps data rate

Off 100 Mbps data rate

Connection/Activity LED:

State Description

Blinking Data transmission or receiving is occurring

On No data transmission or receiving is occurring
