- 31 -
Hardware Installation

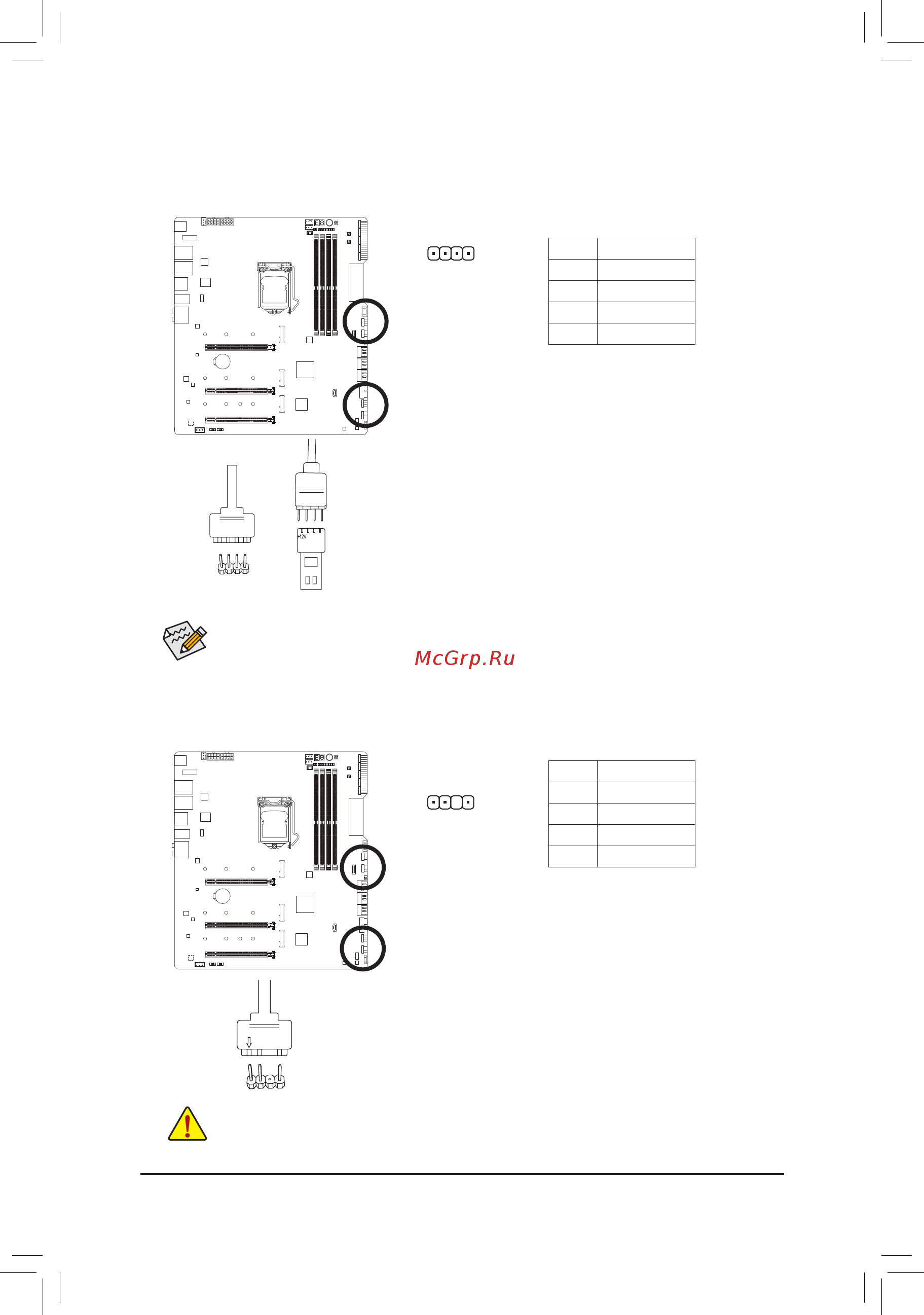

10) LED_C1/LED_C2 (RGB LED Strip Headers)
The headers can be used to connect a standard 5050 RGB LED strip (12V/G/R/B), with maximum power
rating of 2A (12V) and maximum length of 2m.
Pin No. Denition
1 12V
2 G
3 R
4 B
For how to turn on/off the lights of the LED strip, refer to the instructions on in Chapter 5, "Unique
Features," "APP Center\RGB Fusion."
Connect one end of the RGB LED strip extension cable to the
header and the other end to your RGB LED strip. The black wire
(marked with a triangle on the plug) of the extension cable must be
connected to Pin 1 (12V) of this header. The 12V pin (marked with
an arrow) on the other end of the extension cable must be lined
up with the 12V of the LED strip. Be careful with the connection
orientation of the LED strip; incorrect connection may lead to the
damage of the LED strip.
1
DEBUG
PORT
G.QBOFM
12VRGB
BG12VR
12V
1
RGB
LED
Strip
12VRGB
BG12VR
11) D_LED1/D_LED2 (Addressable LED Strip Headers)
The headers can be used to connect a standard 5050 addressable LED strip, with maximum power rating
of 5A (5V) and maximum number of 1000 LEDs.
Pin No. Denition
1 V
2 D
3 No Pin
4 G
1
F_USB30
F_U
B_
F_ F_
_
B
BS_
B
SB_
B
_S
S_
_
B
_U
_
B
S
123
123
123
123
1
1
1
1
BSS
S
_S
SSU
1 2 3
S3
BSSS
U
__ 3
F_USB3F
S _
S _
S _
SF
B_
B_
F
_0
S
S
_0F
_F
_
_
__B
U
S _S
_
SF_
B
USB0_B
B_
B_
F_USB3
F_USB303
_
_3U
S_
Connect one end of the included addressable LED strip adapter
cable to this header and the other end to your addressable LED
strip. The power pin (marked with a triangle on the plug) of the
LED strip must be connected to Pin 1 of the addressable LED
strip header. Incorrect connection may lead to the damage of
the LED strip.
Addressable LED
Strip Adapter Cable
1
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
