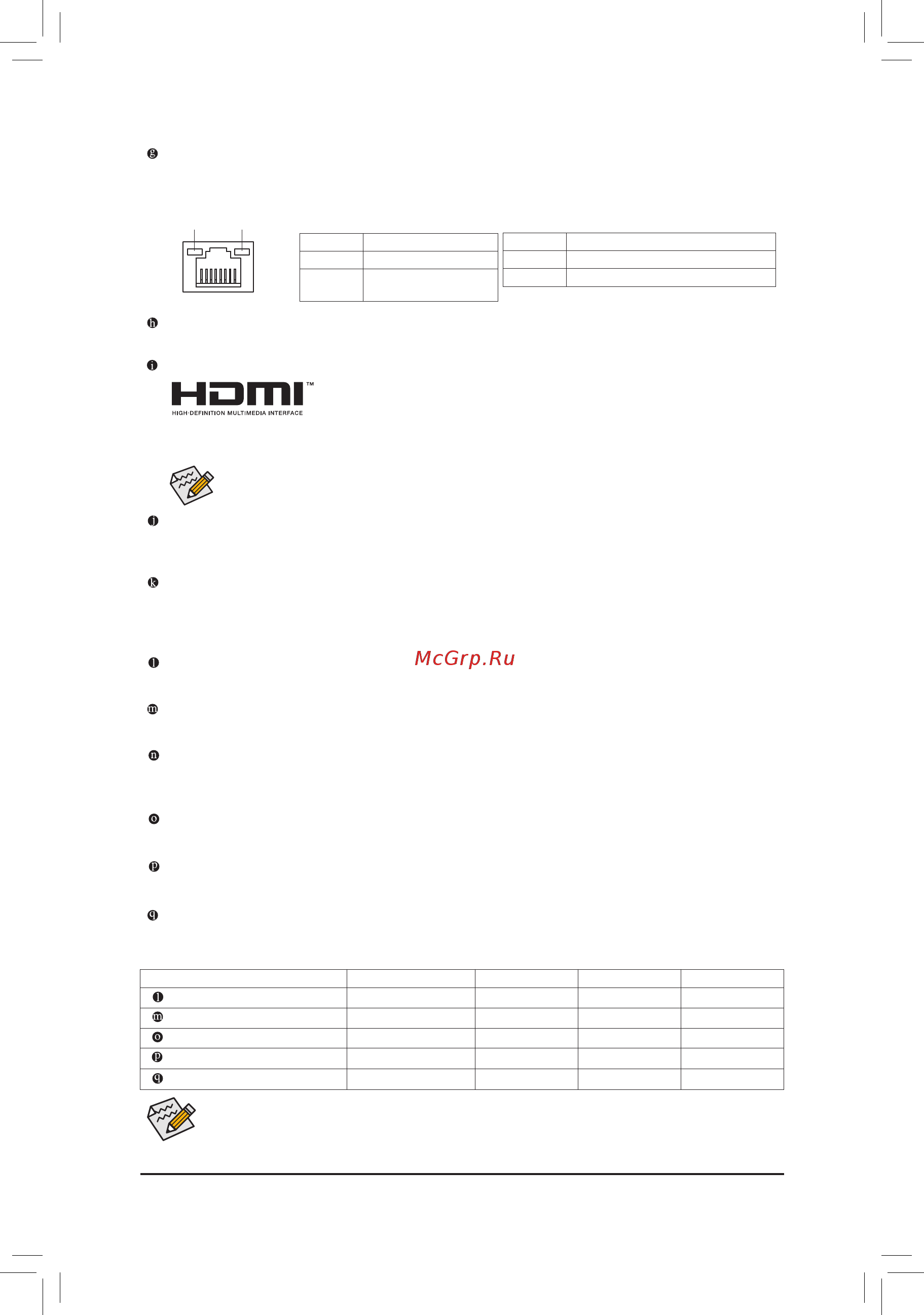

- 23 -
Hardware Installation
RJ-45 LAN Port (LAN1)
The Gigabit Ethernet LAN port provides Internet connection at up to 10 Gbps data rate. The following
describes the states of the LAN port LEDs.
If you want to install a Side Speaker, you need to retask the Line in jack to be Side Speaker out through
the audio driver
.
USB 2.0/1.1 Port
TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.
HDMI Port
The HDMI port supports HDCP 2.3 and Dolby TrueHD and DTS HD Master Au-
dio formats. It also supports up to 192KHz/16bit 7.1-channel LPCM audio output.
You can use this port to connect your HDMI-supported monitor. The maximum supported resolution is
4096x2160@30 Hz, but the actual resolutions supported are dependent on the monitor being used.
(Note) To enable Q-Flash Plus function, refer to Chapter 5, "Unique Features," for more information.
After installing the HDMI device, make sure to set the default sound playback device to HDMI.
(The item name may differ depending on your operating system.)
AudioJackCongurations:
Jack Headphone/2-channel 4-channel 5.1-channel 7.1-channel
Center/Subwoofer Speaker Out
a a
Rear Speaker Out
a a a
Line In/Side Speaker Out
a
Line Out/Front Speaker Out
a a a a
Mic In
a
USB 3.2 Gen 1 Port
TheUSB3.2Gen1portsupportstheUSB3.2Gen1specicationandiscompatibletotheUSB2.0
specication.UsethisportforUSBdevices.
USB 3.2 Gen 2 Type-A Port (Red)(Q-Flash Plus Port)
TheUSB3.2Gen2Type-AportsupportstheUSB3.2Gen2specicationandiscompatibletotheUSB
3.2Gen1andUSB2.0specication.UsethisportforUSBdevices.BeforeusingQ-FlashPlus
(Note)
, make
suretoinserttheUSBashdriveintothisportrst.
Center/Subwoofer Speaker Out
Use this audio jack to connect center/subwoofer speakers.
Rear Speaker Out
Use this audio jack to connect rear speakers.
Optical S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital optical audio.
Before using this feature, ensure that your audio system provides an optical digital audio in connector.
Line In/Side Speaker Out
The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out/Front Speaker Out
The line out jack.
Mic In
The Mic in jack.
Speed LED
Connection/
Activity LED
LAN Port
Speed LED:
State Description
Green 10 Gbps data rate
Orange 5 Gbps/
2.5 Gbps/ 1 Gbps/
100 Mbps data rate
Connection/Activity LED:
State Description
Blinking Data transmission or receiving is occurring
On No data transmission or receiving is occurring
