Replacing the Batteries and Fuse

Replace the fuse and batteries as shown in Figure 11.

Follow the steps below to replace the batteries.

XWWarning

To avoid shock, injury, or damage to the

Tester:

• To avoid false readings, which could lead

to possible electric shock or personal

injury, replace the batteries as soon as

the battery indicator (B) appears.

• Use ONLY fuses with the amperage,

interrupt, voltage, and speed ratings

specified.

• Turn the rotary switch to OFF and remove

the test leads from the terminals.

1. Remove the battery door by using a standard

screwdriver to turn the battery door lock until the

unlock symbol aligns with the arrow.

2. Remove and replace the batteries.

3. Replace the battery door and secure by turning the

battery door lock until the lock symbol aligns with the

arrow.

F315 mA 1000 V

Min interrupt rating

10000 A

bbw15f.eps

Fuse, Fast, 315 mA,

1000 V, Min Interrupt Rating

10000 A

Fluke PN 2279339

Battery, 1.5 V AA Alkaline,

NEDA 15A, IEC LR6

Fluke PN 376756

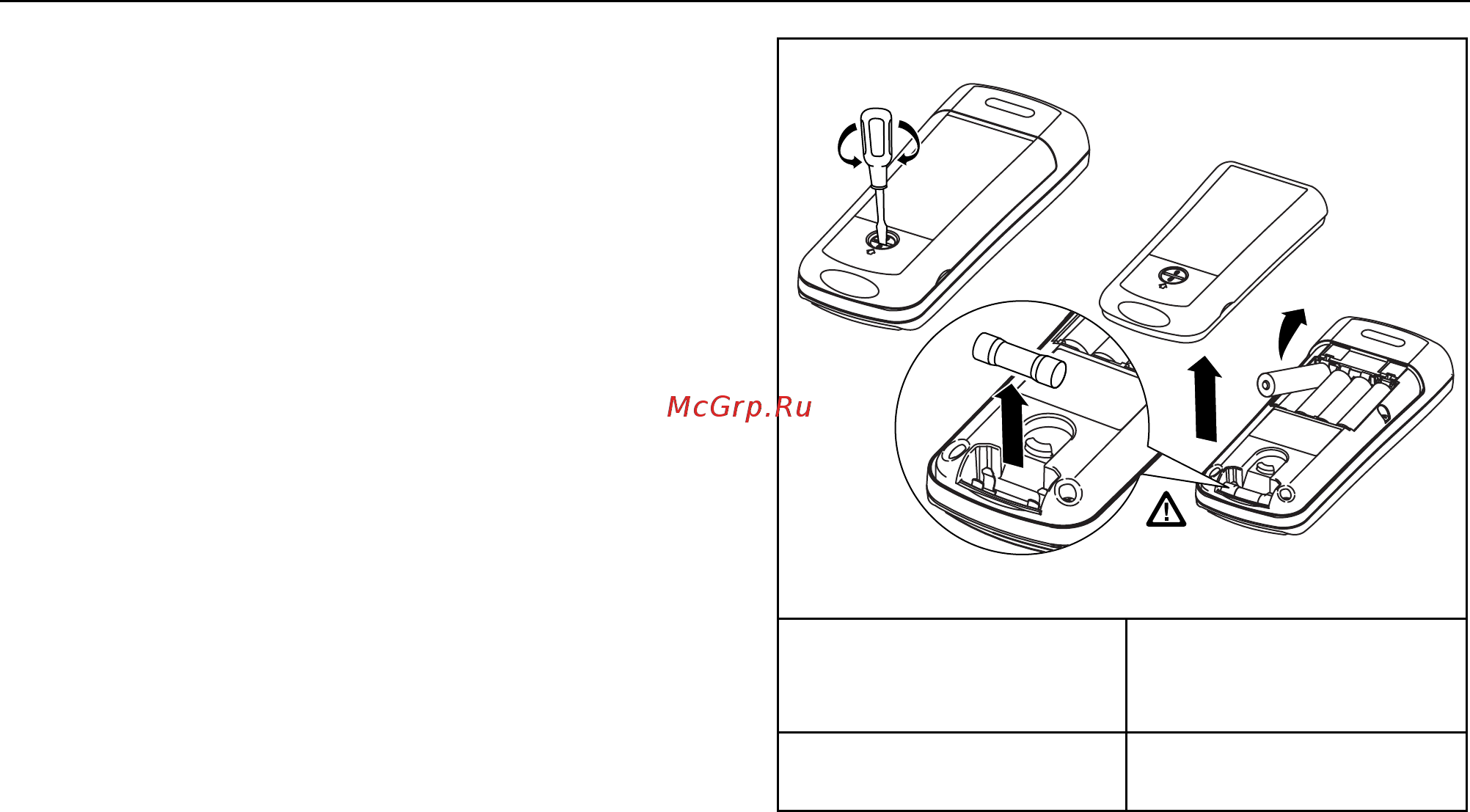

Figure 11. Replacing the Fuse and Battery
