17/100
OPTIONS

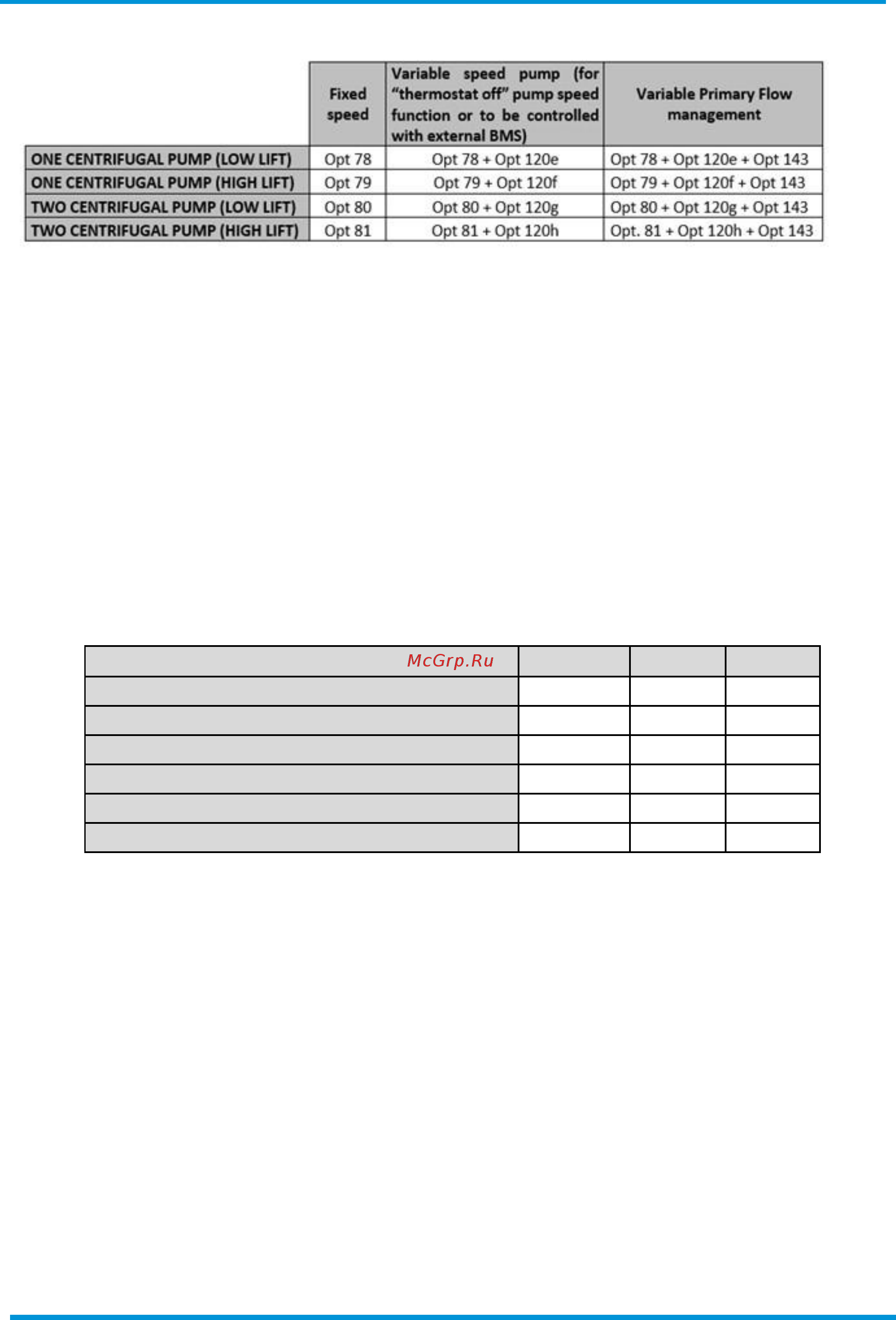

Hydronic options summarizing table
Note: opt.143 can be used only for units installed in a primary only plant to be controlled according to VPF
strategy.
Differential Pressure Transducers - shipped loose - (opt. code 144).
Daikin on site modem with antenna (opt. code 155) - Whenever LAN connection to the unit will not be
available, connecting the unit to Daikin on Site will be possible through a dedicated 3G M2M modem that can be
ordered from Factory. When ordered, the modem will be installed on the unit before leaving the Factory.
Brushless fans up to 700 RPM fans (opt. code 159) - option incompatibility 157-160-161-42-99a.
Refers to the table below in order to match the availability of the option.
100 PA ESP fans (opt. code 160) – option incompatibility 157-159-161.
Refers to the table below in order to match the availability of the option.
200 PA ESP fans (opt. code 161) – option incompatibility 157-159-160-42-99a.
Refers to the table below in order to match the availability of the option.
Fans options summarizing table
Model
SS/SL/SR
XS/XL/XR
PS/PL/PR
AC 700 RPM FANS (opt.157)
STD
STD
NA
EC FANS UP TO 700 RPM (opt.159)
on request
on request
STD
100 PA ESP FANS (opt.160)
on request
on request
NA
200 PA ESP FANS (opt.161)
on request
CF
CF
SPEEDTROL (opt.42)
on request
NA
NA
FANS SPEED REGULATION - INVERTER (opt.99a)
on request
STD
NA
