82/100
OPTIONS (TECHNICAL DATA)

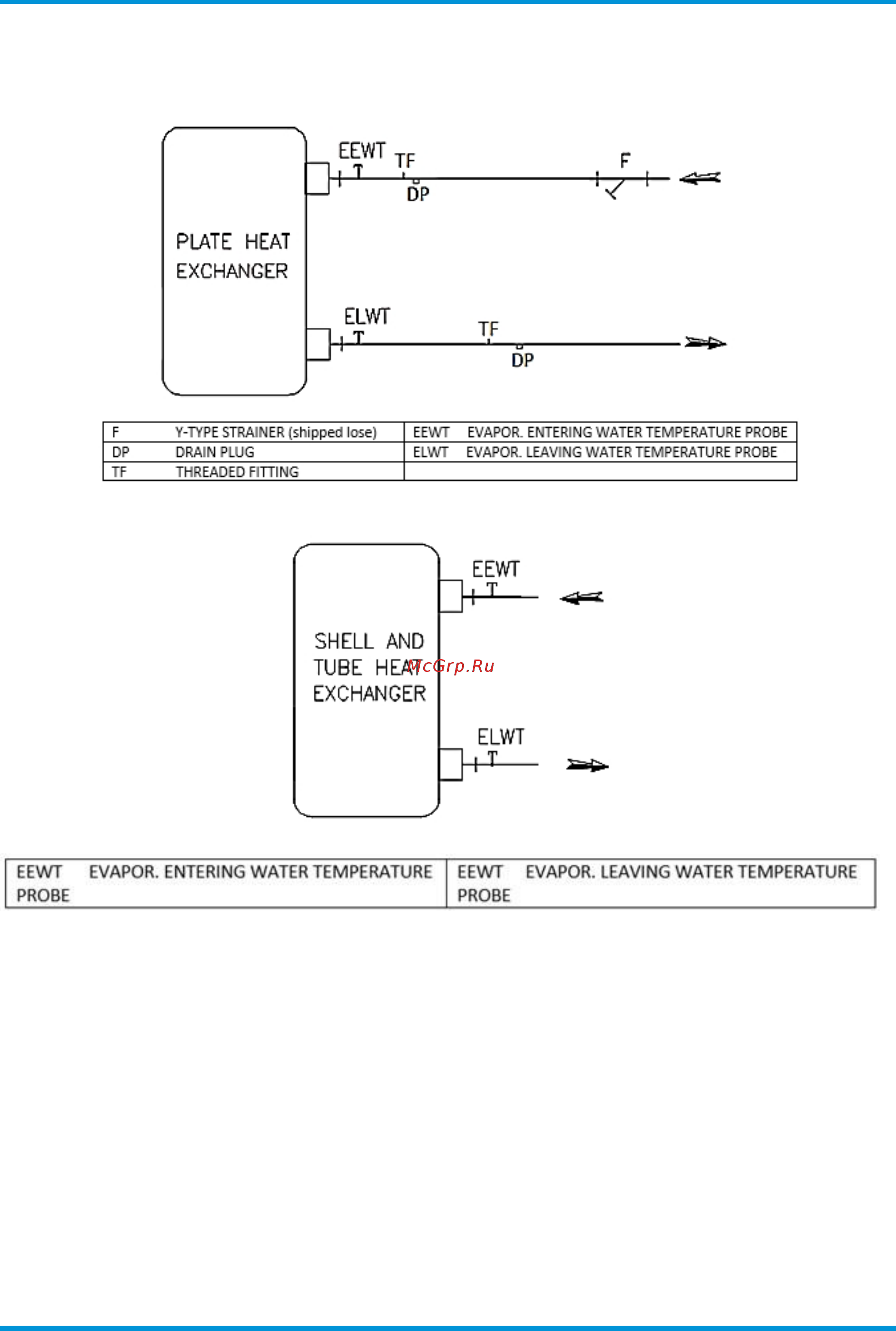

Hydraulic scheme
Single circuit unit without hydronic kit
Dual circuit unit without hydronic kit
Note: drain plug and threaded fitting are on the shell and tube exchanger
