80/100
OPTIONS (TECHNICAL DATA)

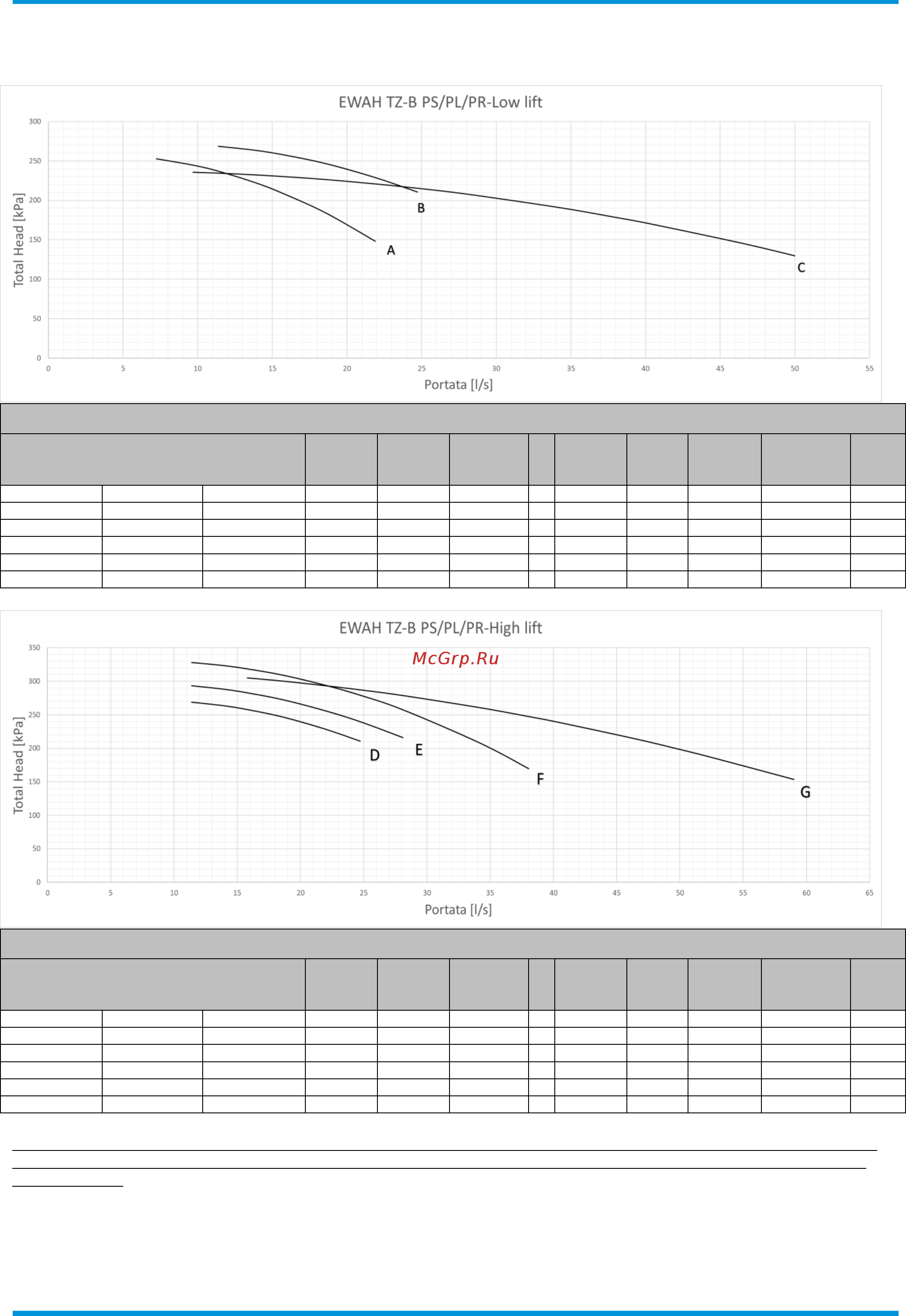

Double pump low/high lift
EWAH-TZB P-S/L/R (PLATINUM series) – Total pump head
Note: to calculate the total electrical data of the base unit selected with hydronic kit, the electrical data of the pump must
be added to the electrical data of the base unit. Electrical data are subject to modification without notice. Please refer to
unit nameplate.
Pump Motor
Power [kW]
Pump Motor
Current [A]
Power supply PN
Motor
protection
Insulation
class
Working
temperature
°[C]
Max ambient
temperatures
[C°]
Ref.
Curve
EWAH370TZPSB2 EWAH370TZPLB2 EWAH370TZPRB2 5,5 10,4
400V-3ph-50Hz
16 IP55 F -25/+120 40 A
EWAH440TZPSB2 EWAH440TZPLB2 EWAH440TZPRB2 5,5 10,4
400V-3ph-50Hz
16 IP55 F -25/+120 40 A
EWAH530TZPSB2 EWAH530TZPLB2 EWAH530TZPRB2 7,5 14,1
400V-3ph-50Hz
16 IP55 F -25/+120 40 B
EWAH610TZPSB2 EWAH610TZPLB2 EWAH610TZPRB2 7,5 14,1
400V-3ph-50Hz
16 IP55 F -25/+120 40 B
EWAH690TZPSB2 EWAH690TZPLB2 EWAH690TZPRB2 11 20,2
400V-3ph-50Hz
16 IP55 F -25/+120 40 C
EWAH770TZPSB2 EWAH770TZPLB2 EWAH770TZPRB2 11 20,2
400V-3ph-50Hz
16 IP55 F -25/+120 40 C
Model
LOW LIFT
Pump Motor
Power [kW]
Pump Motor
Current [A]
Power supply PN
Motor
protection
Insulation
class
Working
temperature
°[C]
Max ambient
temperatures
[C°]
Ref.
Curve
EWAH370TZPSB2 EWAH370TZPLB2 EWAH370TZPRB2 7,5 14,1
400V-3ph-50Hz
16 IP55 F -25/+120 40 D
EWAH440TZPSB2 EWAH440TZPLB2 EWAH440TZPRB2 9,2 17,4
400V-3ph-50Hz
16 IP55 F -25/+120 40 E
EWAH530TZPSB2 EWAH530TZPLB2 EWAH530TZPRB2 11 20,2
400V-3ph-50Hz
16 IP55 F -25/+120 40 F
EWAH610TZPSB2 EWAH610TZPLB2 EWAH610TZPRB2 11 20,2
400V-3ph-50Hz
16 IP55 F -25/+120 40 F
EWAH690TZPSB2 EWAH690TZPLB2 EWAH690TZPRB2 15 26,6
400V-3ph-50Hz
16 IP55 F -25/+120 40 G
EWAH770TZPSB2 EWAH770TZPLB2 EWAH770TZPRB2 15 26,6
400V-3ph-50Hz
16 IP55 F -25/+120 40 G
HIGH LIFT
Model
