93/100

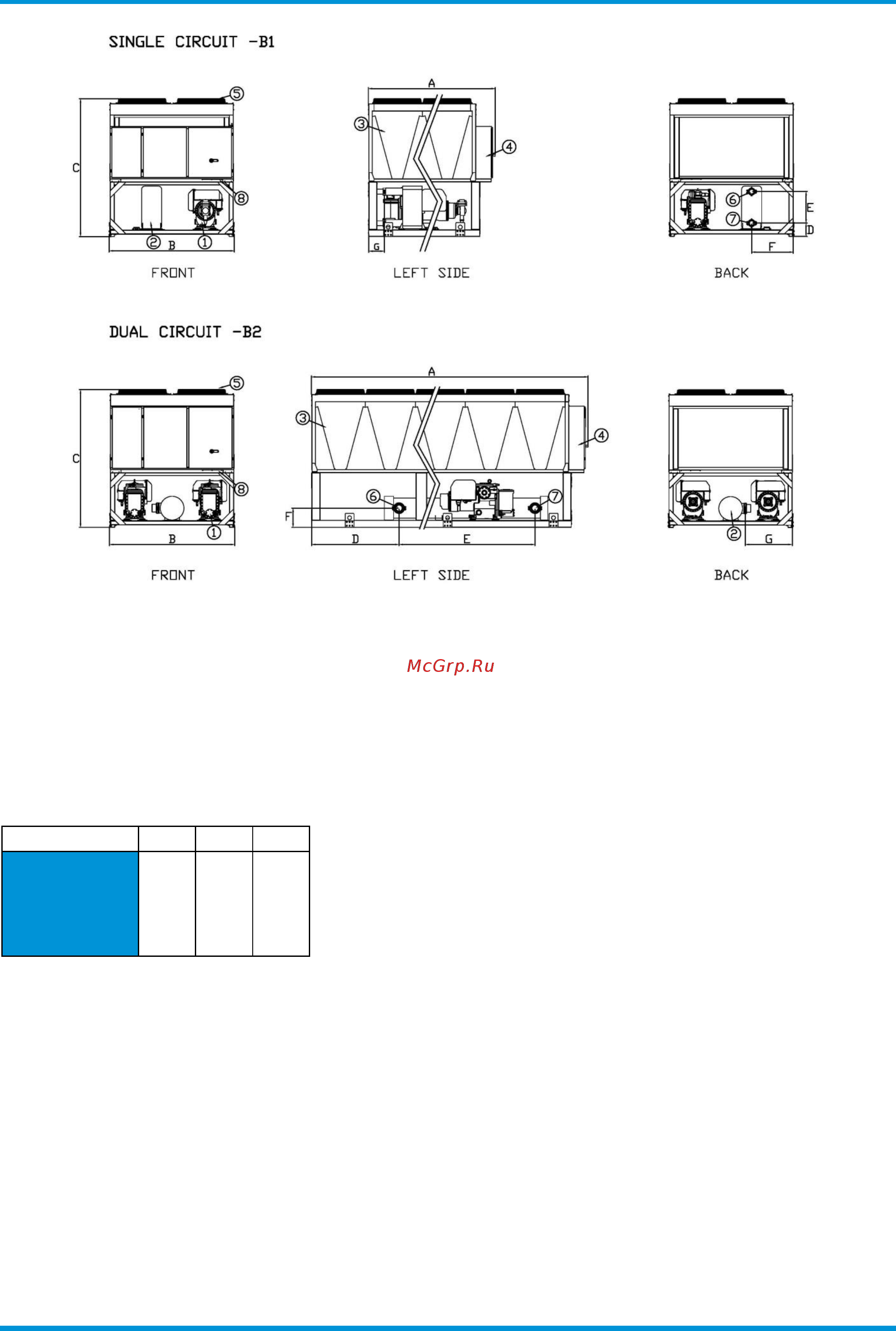

DIMENSIONAL DRAWING
LEGEND
1.
COMPRESSOR
2.
EVAPORATOR
3.
CONDENSER COIL
4.
ELECTRICAL PANEL
5.
FAN
6.
EVAPORATOR WATER INLET
7.
EVAPORATOR WATER OUTLET
8.
SLOT FOR POWER AND CONTROL PANEL CONNECTION
note: the above drawings are not contractually binding. For the design of installation refer to the dedicated dimensional drawing available from
the factory on request. The data are subject to change without notice.
MODEL
A
B
C
EWAH370TZPLB2
7684
2282
2540
EWAH440TZPLB2
9480
2282
2540
EWAH530TZPLB2
7787
2282
2540
EWAH610TZPLB2
8687
2282
2540
EWAH690TZPLB2
10488
2282
2540
EWAH770TZPLB2
11387
2282
2540
