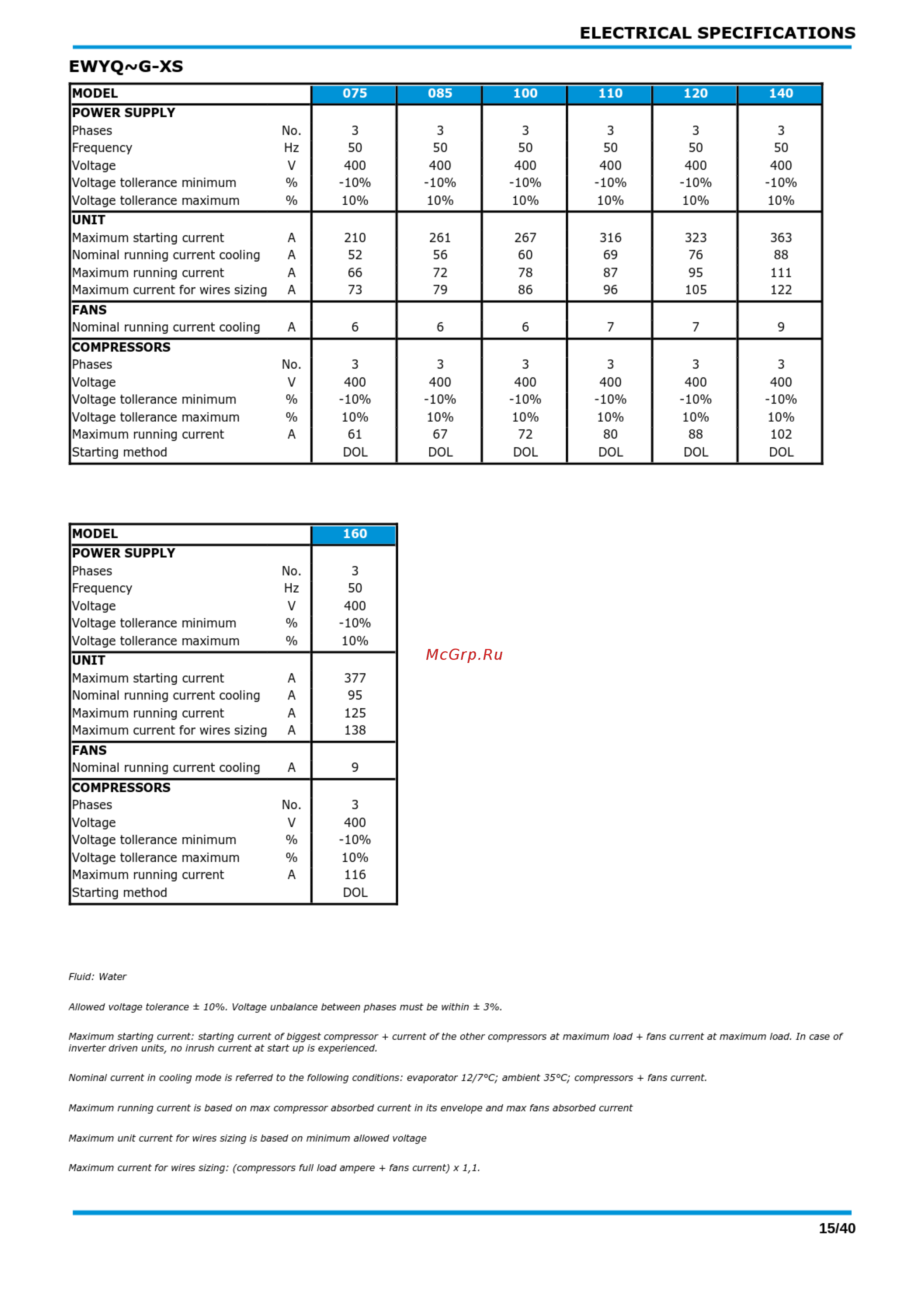

ELECTRICAL SPECIFICATIONS EWYQ G XS MODEL POWER SUPPLY Phases Frequency Voltage Voltage toilerance minimum Voltage toilerance maximum 075 085 100 110 120 140 No Hz V 3 50 400 10 10 3 50 400 10 10 3 50 400 10 10 3 50 400 10 10 3 50 400 10 10 3 50 400 10 10 A A A A 210 52 66 73 261 56 72 79 267 60 78 86 316 69 87 96 323 76 95 105 363 88 111 122 A 6 6 6 7 7 9 No V A 3 400 10 10 61 DOL 3 400 10 10 67 DOL 3 400 10 10 72 DOL 3 400 10 10 80 DOL 3 400 10 10 88 DOL 3 400 10 10 102 DOL UNIT Maximum starting current Nominal running current cooling Maximum running current Maximum current for wires sizing FANS Nominal running current cooling COMPRESSORS Phases Voltage Voltage tollerance minimum Voltage tollerance maximum Maximum running current Starting method MODEL POWER SUPPLY Phases Frequency Voltage Voltage tollerance minimum Voltage tollerance maximum 160 No Hz V 3 50 400 10 10 A A A A 377 95 125 138 A 9 No V A 3 400 10 10 116 DOL UNIT Maximum starting current Nominal running current cooling Maximum running current Maximum current for wires sizing FANS Nominal running current cooling COMPRESSORS Phases Voltage Voltage tollerance minimum Voltage tollerance maximum Maximum running current Starting method Fluid Water Allowed voltage tolerance 10 o Voltage unbalance between phases must be within 3 Maximum starting current starting current of biggest compressor current of the other compressors at maximum load fans current at maximum load In case of inverter driven units no inrush current at start up is experienced Nominal current in cooling mode is referred to the following conditions evaporator 12 7 C ambient 35 C compressors fans current Maximum running current is based on max compressor absorbed current in its envelope and max fans absorbed current Maximum unit current for wires sizing is based on minimum allowed voltage Maximum current for wires sizing compressors full load ampere fans current x 1 1 15 40
