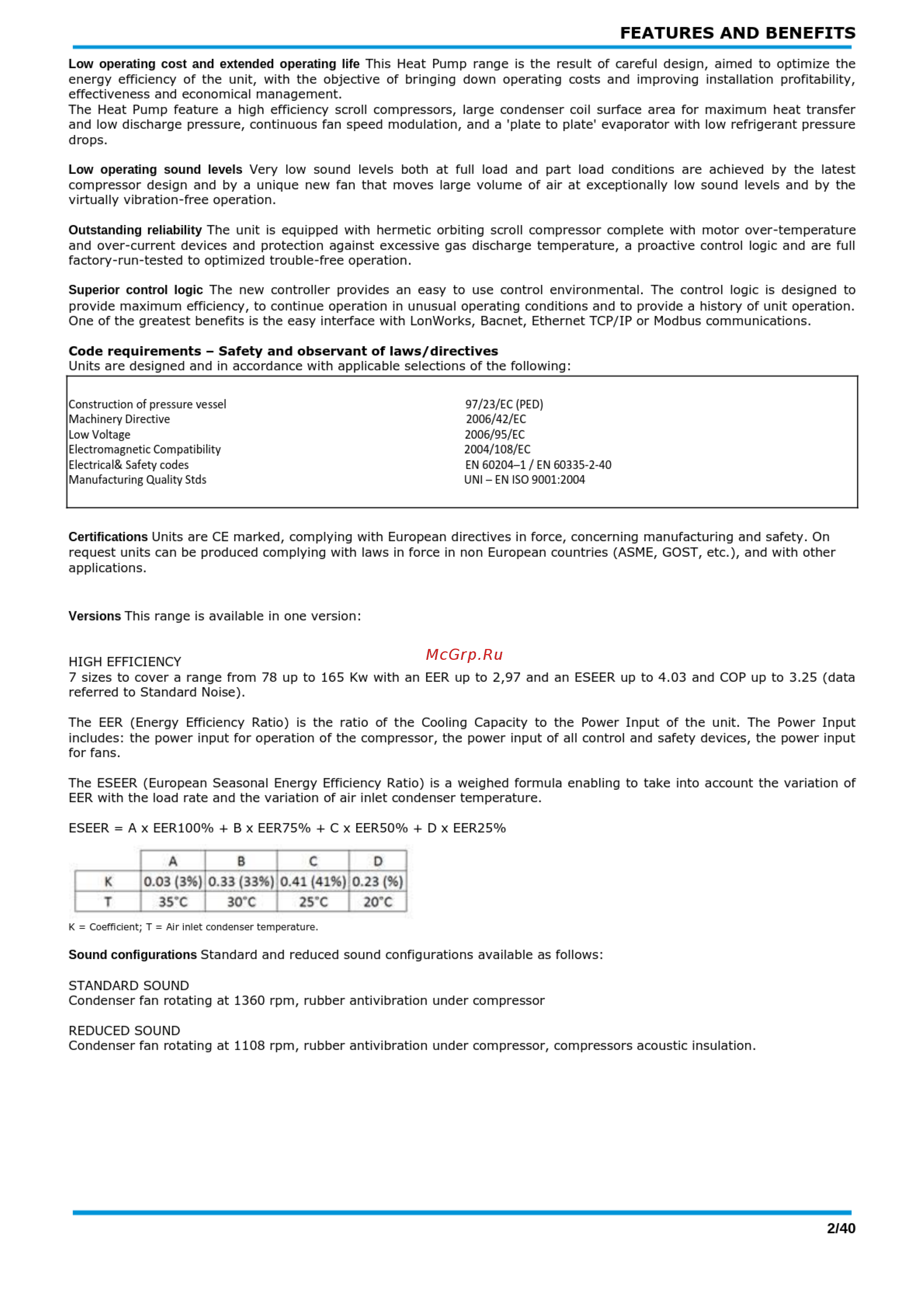

FEATURES AND BENEFITS Low operating cost and extended operating life This Heat Pump range is the result of careful design aimed to optimize the energy efficiency of the unit with the objective of bringing down operating costs and improving installation profitability effectiveness and economical management The Heat Pump feature a high efficiency scroll compressors large condenser coil surface area for maximum heat transfer and low discharge pressure continuous fan speed modulation and a plate to plate evaporator with low refrigerant pressure drops Low operating sound levels Very low sound levels both at full load and part load conditions are achieved by the latest compressor design and by a unique new fan that moves large volume of air at exceptionally low sound levels and by the virtually vibration free operation Outstanding reliability The unit is equipped with hermetic orbiting scroll compressor complete with motor over temperature and over current devices and protection against excessive gas discharge temperature a proactive control logic and are full factory run tested to optimized trouble free operation Superior control logic The new controller provides an easy to use control environmental The control logic is designed to provide maximum efficiency to continue operation in unusual operating conditions and to provide a history of unit operation One of the greatest benefits is the easy interface with LonWorks Bacnet Ethernet TCP IP or Modbus communications Code requirements Safety and observant of laws directives Units are designed and in accordance with applicable selections of the following Construction of pressure vessel Machinery Directive Low Voltage Electromagnetic Compatibility Electrical Safety codes Manufacturing Quality Stds 97 23 EC PED 2006 42 EC 2006 95 EC 2004 108 EC EN 60204 1 EN 60335 2 40 UNI EN ISO 9001 2004 Certifications Units are CE marked complying with European directives in force concerning manufacturing and safety On request units can be produced complying with laws in force in non European countries ASME GOST etc and with other applications Versions This range is available in one version HIGH EFFICIENCY 7 sizes to cover a range from 78 up to 165 Kw with an EER up to 2 97 and an ESEER up to 4 03 and COP up to 3 25 data referred to Standard Noise The EER Energy Efficiency Ratio is the ratio of the Cooling Capacity to the Power Input of the unit The Power Input includes the power input for operation of the compressor the power input of all control and safety devices the power input for fans The ESEER European Seasonal Energy Efficiency Ratio is a weighed formula enabling to take into account the variation of EER with the load rate and the variation of air inlet condenser temperature ESEER A x EER100 B x EER75 C x EER50 D x EER25 35 C o Pl 0 03 3 CO A K D 0 33 33 0 41 41 0 23 30X 1 25 C 20 C K Coefficient T Air inlet condenser temperature Sound configurations Standard and reduced sound configurations available as follows STANDARD SOUND Condenser fan rotating at 1360 rpm rubber antivibration under compressor REDUCED SOUND Condenser fan rotating at 1108 rpm rubber antivibration under compressor compressors acoustic insulation 2 40
