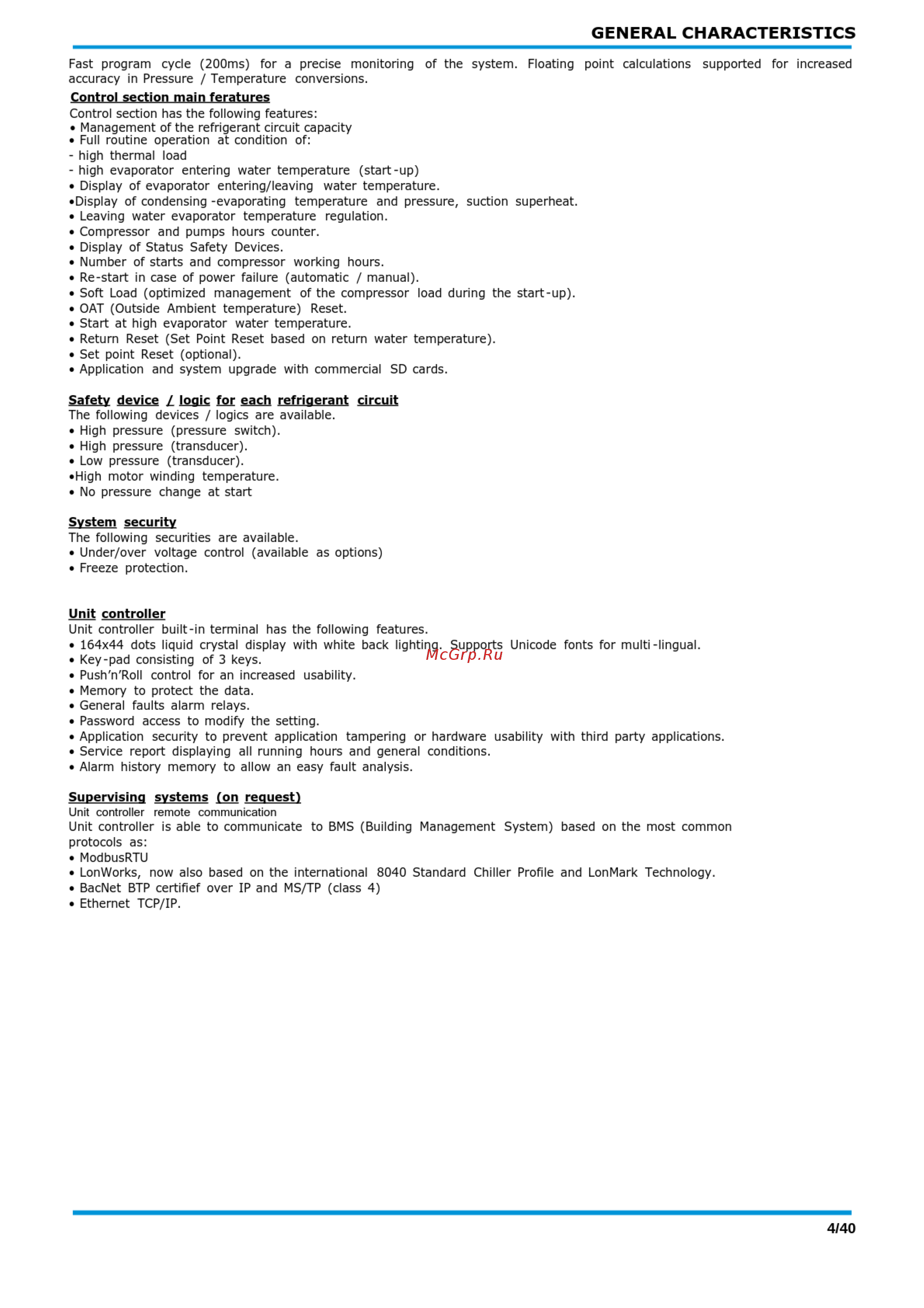

GENERAL CHARACTERISTICS Fast program cycle 200ms for a precise monitoring of the system Floating point calculations supported for increased accuracy in Pressure Temperature conversions ContmLsectionjnain_feratures Control section has the following features Management of the refrigerant circuit capacity Full routine operation at condition of high thermal load high evaporator entering water temperature start up Display of evaporator entering leaving water temperature Display of condensing evaporating temperature and pressure suction superheat Leaving water evaporator temperature regulation Compressor and pumps hours counter Display of Status Safety Devices Number of starts and compressor working hours Re start in case of power failure automatic manual Soft Load optimized management of the compressor load during the start up OAT Outside Ambient temperature Reset Start at high evaporator water temperature Return Reset Set Point Reset based on return water temperature Set point Reset optional Application and system upgrade with commercial SD cards Safety device logic for each refrigerant circuit The following devices logics are available High pressure pressure switch High pressure transducer Low pressure transducer High motor winding temperature No pressure change at start System security The following securities are available Under over voltage control available as options Freeze protection Unit controller Unit controller built in terminal has the following features 164x44 dots liquid crystal display with white back lighting Supports Unicode fonts for multi lingual Key pad consisting of 3 keys Push n Roll control for an increased usability Memory to protect the data General faults alarm relays Password access to modify the setting Application security to prevent application tampering or hardware usability with third party applications Service report displaying all running hours and general conditions Alarm history memory to allow an easy fault analysis Supervising systems on reguest Unit controller remote communication Unit controller is able to communicate to BMS Building Management System based on the most common protocols as ModbusRTU LonWorks now also based on the international 8040 Standard Chiller Profile and LonMark Technology BacNet BTP certifief over IP and MS TP class 4 Ethernet TCP IP 4 40
