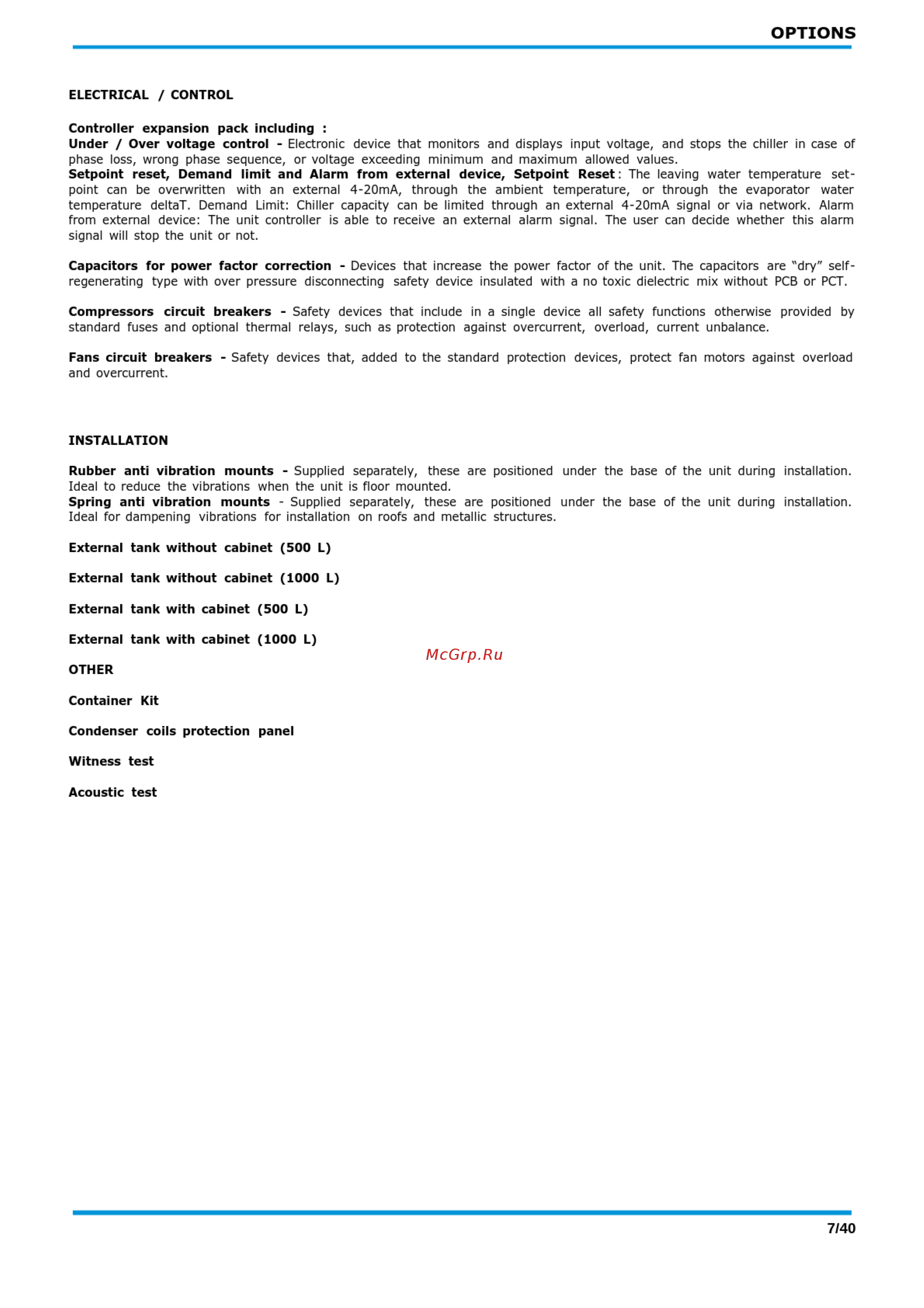

OPTIONS ELECTRICAL I CONTROL Controller expansion pack including Under I Over voltage control Electronic device that monitors and displays input voltage and stops the chiller in case of phase loss wrong phase sequence or voltage exceeding minimum and maximum allowed values Setpoint reset Demand limit and Alarm from external device Setpoint Reset The leaving water temperature set point can be overwritten with an external 4 20mA through the ambient temperature or through the evaporator water temperature deltaT Demand Limit Chiller capacity can be limited through an external 4 20mA signal or via network Alarm from external device The unit controller is able to receive an external alarm signal The user can decide whether this alarm signal will stop the unit or not Capacitors for power factor correction Devices that increase the power factor of the unit The capacitors are dry self regenerating type with over pressure disconnecting safety device insulated with a no toxic dielectric mix without PCB or PCT Compressors circuit breakers Safety devices that include in a single device all safety functions otherwise provided by standard fuses and optional thermal relays such as protection against overcurrent overload current unbalance Fans circuit breakers Safety devices that added to the standard protection devices protect fan motors against overload and overcurrent INSTALLATION Rubber anti vibration mounts Supplied separately these are positioned under the base of the unit during installation Ideal to reduce the vibrations when the unit is floor mounted Spring anti vibration mounts Supplied separately these are positioned under the base of the unit during installation Ideal for dampening vibrations for installation on roofs and metallic structures External tank without cabinet 500 L External tank without cabinet 1000 L External tank with cabinet 500 L External tank with cabinet 1000 L OTHER Container Kit Condenser coils protection panel Witness test Acoustic test 7 40
