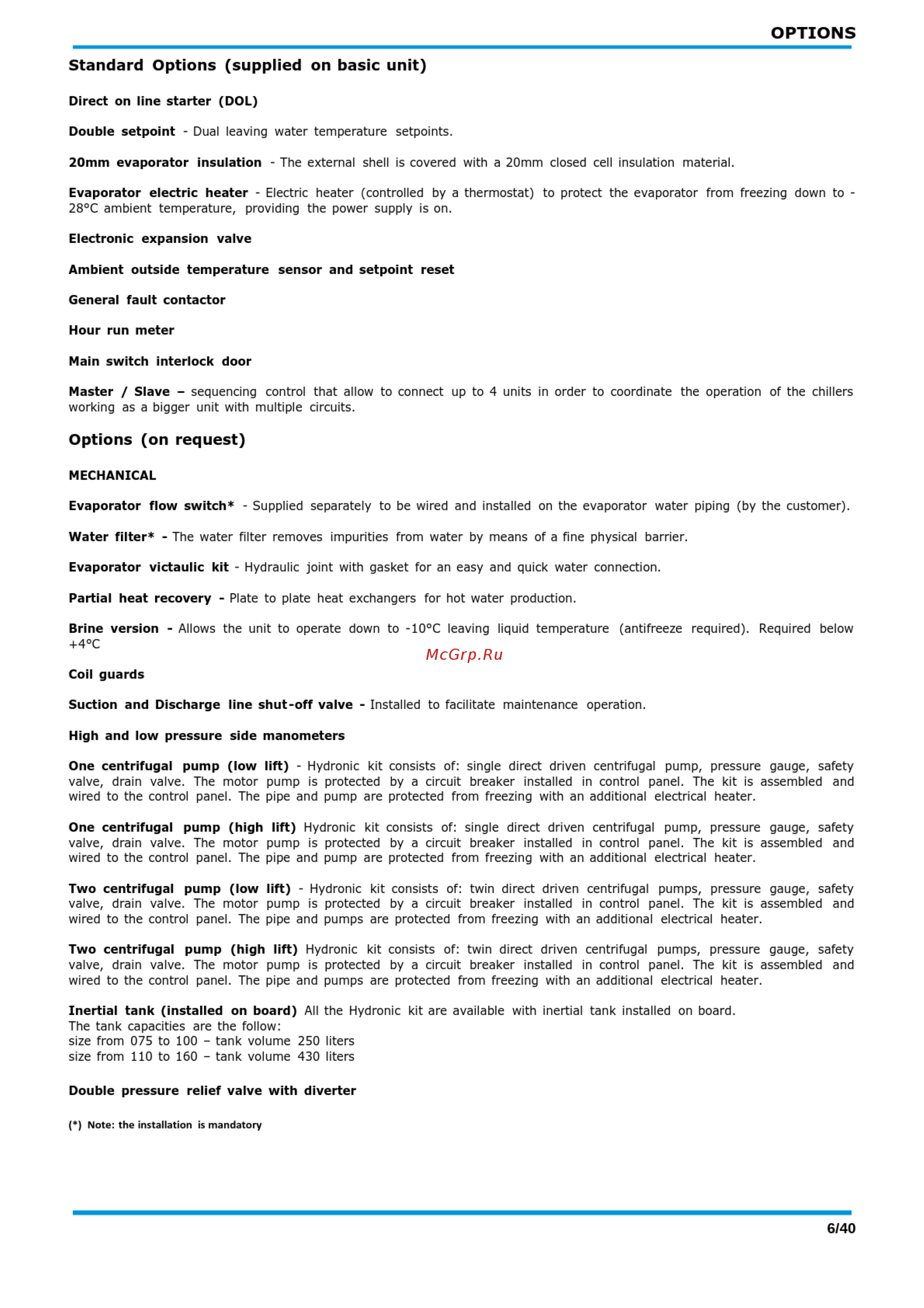

OPTIONS Standard Options supplied on basic unit Direct on line starter DOL Double setpoint Dual leaving water temperature setpoints 20mm evaporator insulation The external shell is covered with a 20mm closed cell insulation material Evaporator electric heater Electric heater controlled by a thermostat to protect the evaporator from freezing down to 28 C ambient temperature providing the power supply is on Electronic expansion valve Ambient outside temperature sensor and setpoint reset General fault contactor Hour run meter Main switch interlock door Master Slave sequencing control that allow to connect up to 4 units in order to coordinate the operation of the chillers working as a bigger unit with multiple circuits Options on request MECHANICAL Evaporator flow switch Supplied separately to be wired and installed on the evaporator water piping by the customer Water filter The water filter removes impurities from water by means of a fine physical barrier Evaporator victaulic kit Hydraulic joint with gasket for an easy and quick water connection Partial heat recovery Plate to plate heat exchangers for hot water production Brine version Allows the unit to operate down to 10 C leaving liquid temperature antifreeze required Required below 4 C Coil guards Suction and Discharge line shut off valve Installed to facilitate maintenance operation High and low pressure side manometers One centrifugal pump low lift Hydronic kit consists of single direct driven centrifugal pump pressure gauge safety valve drain wired to the valve The motor control panel The pump is protected by a circuit breaker installed in control panel The kit is pipe and pump are protected from freezing with an additional electrical heater assembled and One centrifugal pump high lift Hydronic kit consists of single direct driven centrifugal pump pressure gauge safety valve drain wired to the valve The motor control panel The pump is protected by a circuit breaker installed in control panel The kit is pipe and pump are protected from freezing with an additional electrical heater assembled and Two centrifugal pump low lift Hydronic kit consists of twin direct driven centrifugal pumps pressure gauge safety valve drain wired to the valve The motor control panel The pump is protected by a circuit breaker installed pipe and pumps are protected from freezing with in control panel The an additional electrical kit is assembled heater and Two centrifugal pump high lift Hydronic kit consists of twin direct driven centrifugal pumps pressure gauge safety valve drain wired to the valve The motor control panel The pump is protected by a circuit breaker installed pipe and pumps are protected from freezing with in control panel The an additional electrical kit is assembled heater and Inertial tank installed on board All the Hydronic kit are available with inertial tank installed on board The tank capacities are the follow size from 075 to 100 tank volume 250 liters size from 110 to 160 tank volume 430 liters Double pressure relief valve with diverter Note the installation is mandatory 6 40
