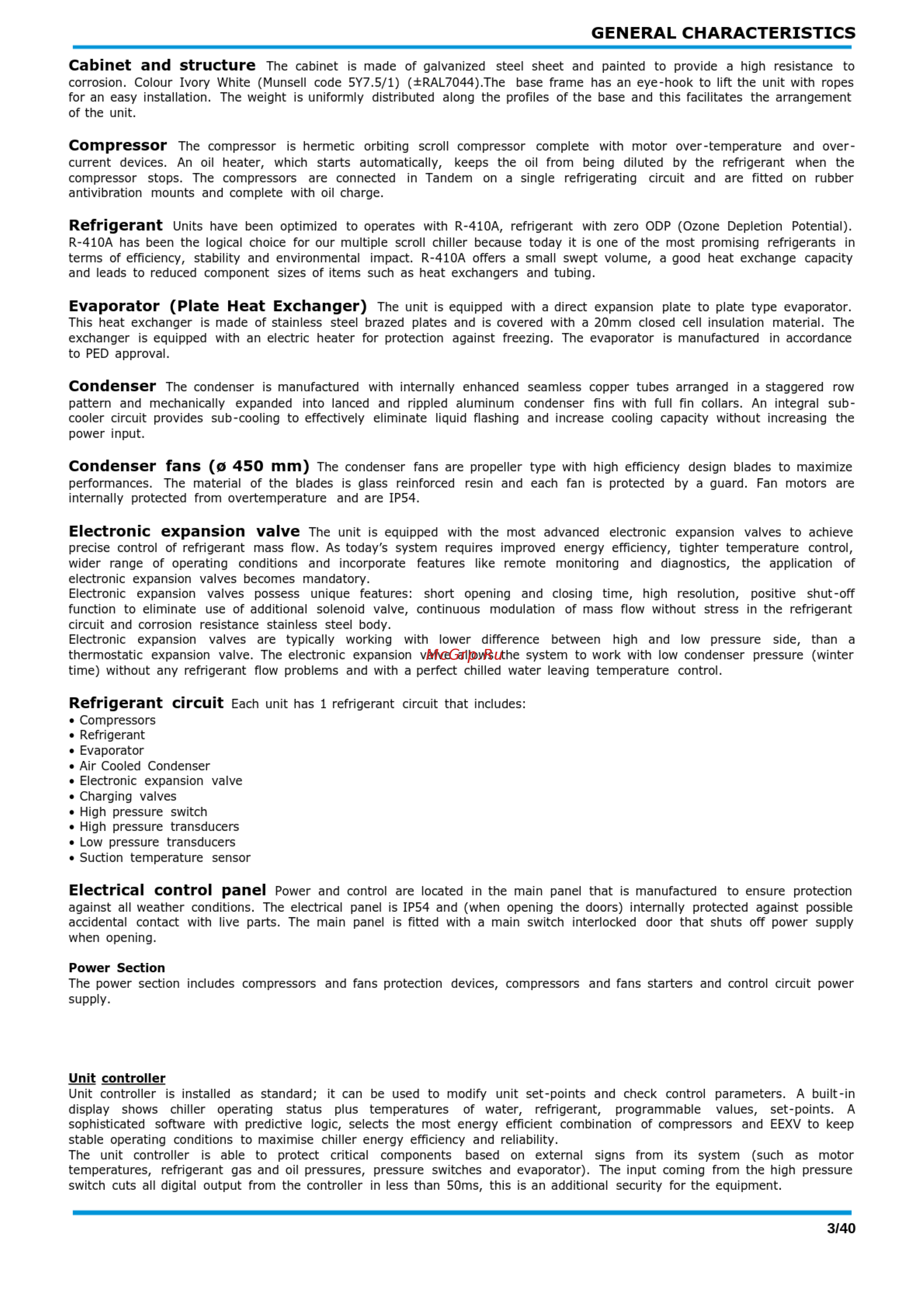

GENERAL CHARACTERISTICS Cabinet and structure The cabinet is made of galvanized steel sheet and painted to provide a high resistance to corrosion Colour Ivory White Munsell code 5Y7 5 1 RAL7044 The base frame has an eye hook to lift the unit with ropes for an easy installation The weight is uniformly distributed along the profiles of the base and this facilitates the arrangement of the unit Compressor The compressor is hermetic orbiting scroll compressor complete with motor over temperature and over current devices An oil heater which starts automatically keeps the oil from being diluted by the refrigerant when the compressor stops The compressors are connected in Tandem on a single refrigerating circuit and are fitted on rubber antivibration mounts and complete with oil charge Refrigerant Units have been optimized to operates with R 410A refrigerant with zero ODP Ozone Depletion Potential R 410A has been the logical choice for our multiple scroll chiller because today it is one of the most promising refrigerants in terms of efficiency stability and environmental impact R 410A offers a small swept volume a good heat exchange capacity and leads to reduced component sizes of items such as heat exchangers and tubing Evaporator Plate Heat Exchanger The unit is equipped with a direct expansion plate to plate type evaporator This heat exchanger is made of stainless steel brazed plates and is covered with a 20mm closed cell insulation material The exchanger is equipped with an electric heater for protection against freezing The evaporator is manufactured in accordance to PED approval Condenser The condenser is manufactured with internally enhanced seamless copper tubes arranged in a staggered row pattern and mechanically expanded into lanced and rippled aluminum condenser fins with full fin collars An integral sub cooler circuit provides sub cooling to effectively eliminate liquid flashing and increase cooling capacity without increasing the power input Condenser fans 0 450 mm The condenser fans are propeller type with high efficiency design blades to maximize performances The material of the blades is glass reinforced resin and each fan is protected by a guard Fan motors are internally protected from overtemperature and are IP54 Electronic expansion valve The unit is equipped with the most advanced electronic expansion valves to achieve precise control of refrigerant mass flow As today s system requires improved energy efficiency tighter temperature control wider range of operating conditions and incorporate features like remote monitoring and diagnostics the application of electronic expansion valves becomes mandatory Electronic expansion valves possess unique features short opening and closing time high resolution positive shut off function to eliminate use of additional solenoid valve continuous modulation of mass flow without stress in the refrigerant circuit and corrosion resistance stainless steel body Electronic expansion valves are typically working with lower difference between high and low pressure side than a thermostatic expansion valve The electronic expansion valve allows the system to work with low condenser pressure winter time without any refrigerant flow problems and with a perfect chilled water leaving temperature control Refrigerant circuit Each unit has 1 refrigerant circuit that includes Compressors Refrigerant Evaporator Air Cooled Condenser Electronic expansion valve Charging valves High pressure switch High pressure transducers Low pressure transducers Suction temperature sensor Electrical control panel Power and control are located in the main panel that is manufactured to ensure protection against all weather conditions The electrical panel is IP54 and when opening the doors internally protected against possible accidental contact with live parts The main panel is fitted with a main switch interlocked door that shuts off power supply when opening Power Section The power section includes compressors and fans protection devices compressors and fans starters and control circuit power supply Unit controller Unit controller is installed as standard it can be used to modify unit set points and check control parameters A built in display shows chiller operating status plus temperatures of water refrigerant programmable values set points A sophisticated software with predictive logic selects the most energy efficient combination of compressors and EEXV to keep stable operating conditions to maximise chiller energy efficiency and reliability The unit controller is able to protect critical components based on external signs from its system such as motor temperatures refrigerant gas and oil pressures pressure switches and evaporator The input coming from the high pressure switch cuts all digital output from the controller in less than 50ms this is an additional security for the equipment 3 40
