Gigabyte MZ72-HB0 (rev. 1.x) [103/141] 4 amd pbs menu

- 103 - BIOS Setup

2-4 AMD PBS Menu

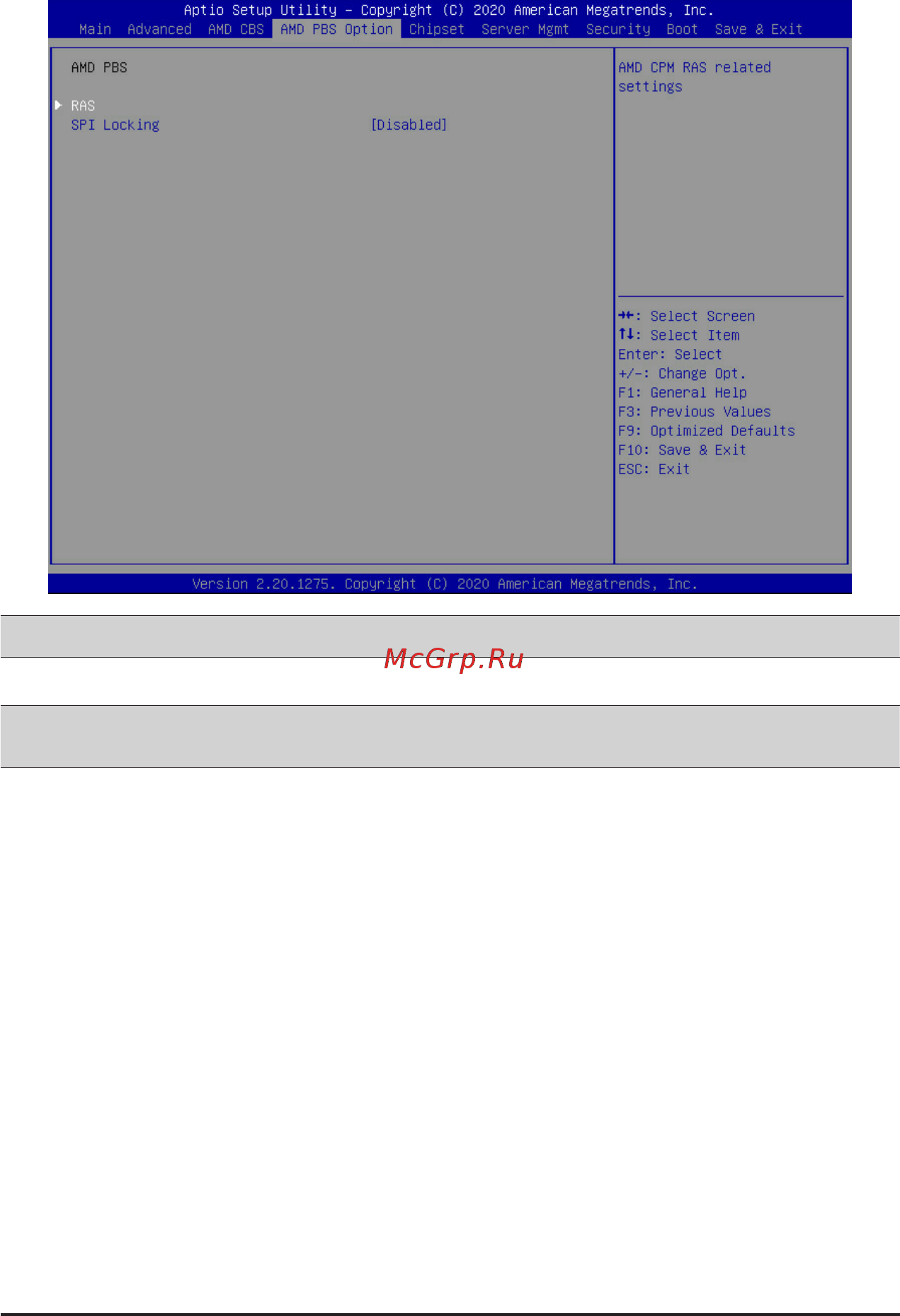

AMD PBS Option menu displays submenu options for configuring the function of AMD PBS. Select a

submenu item, then press [Enter] to access the related submenu screen.

Parameter Description

RAS Press[Enter]forcongurationofadvanceditems.

SPI Locking

Enable/Disable SPI Locking for protect ROM part.

Options available: Enabled, Disabled. Default setting is Disabled.
