Gigabyte MZ72-HB0 (rev. 1.x) [20/141] 5 6 7 sata0 sata1 sata2 sata3 sata 6gb s connectors

Hardware Installation - 20 -

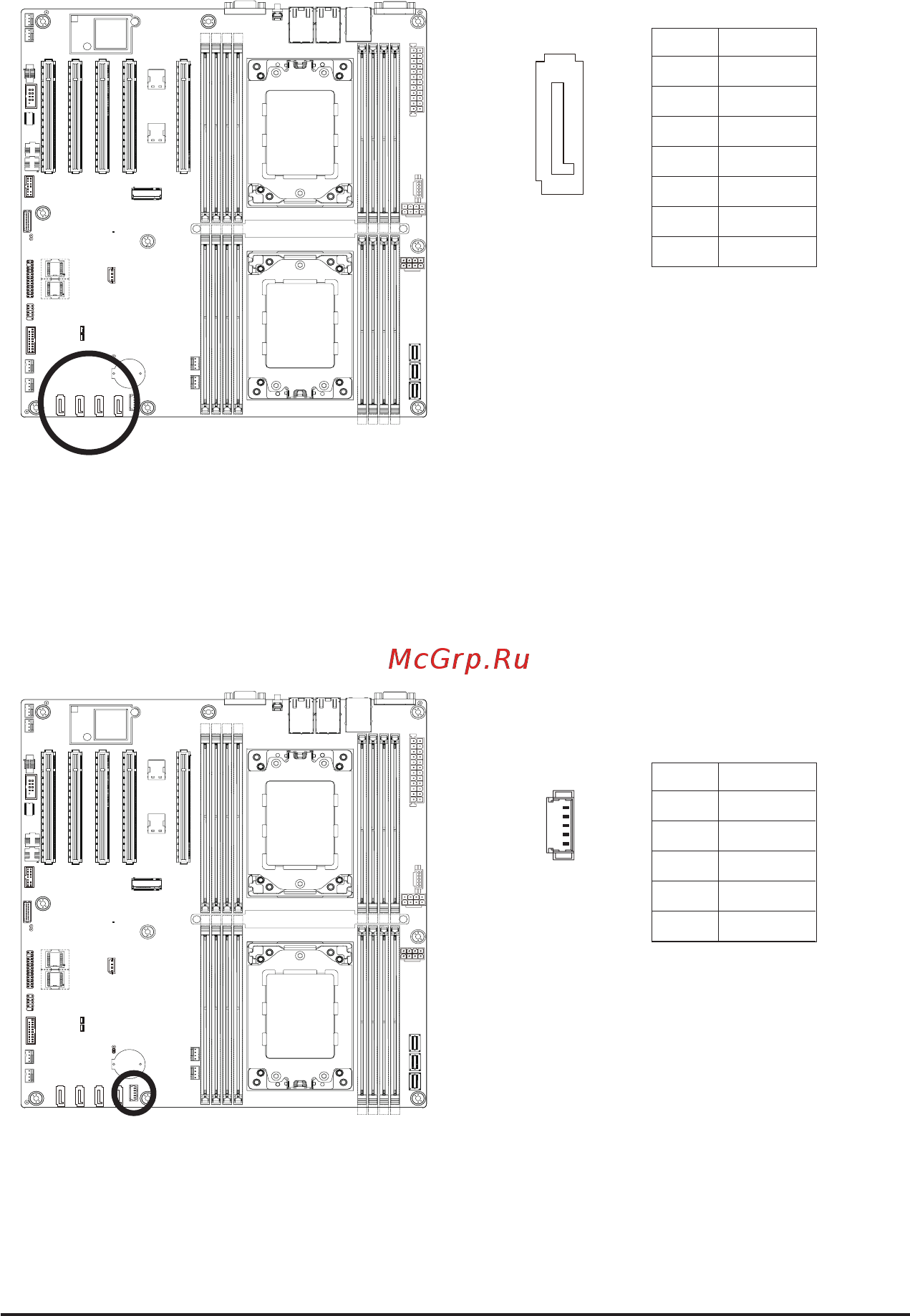

4/5/6/7) SATA0/SATA1/SATA2/SATA3 (SATA 6Gb/s Connectors)

The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s standard. Each

SATA connector supports a single SATA device.

PinNo. Denition

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

8) SATA_SGP (SATA SGPIO) Connector

Serial General Purpose Input/Output (SGPIO) is a communication method used between a host bus adapter

(HBA) and a main board.

PinNo. Denition

1 Data Out

2 GND

3 Data In

4 Load

5 Clock
