- 51 - BIOS Setup

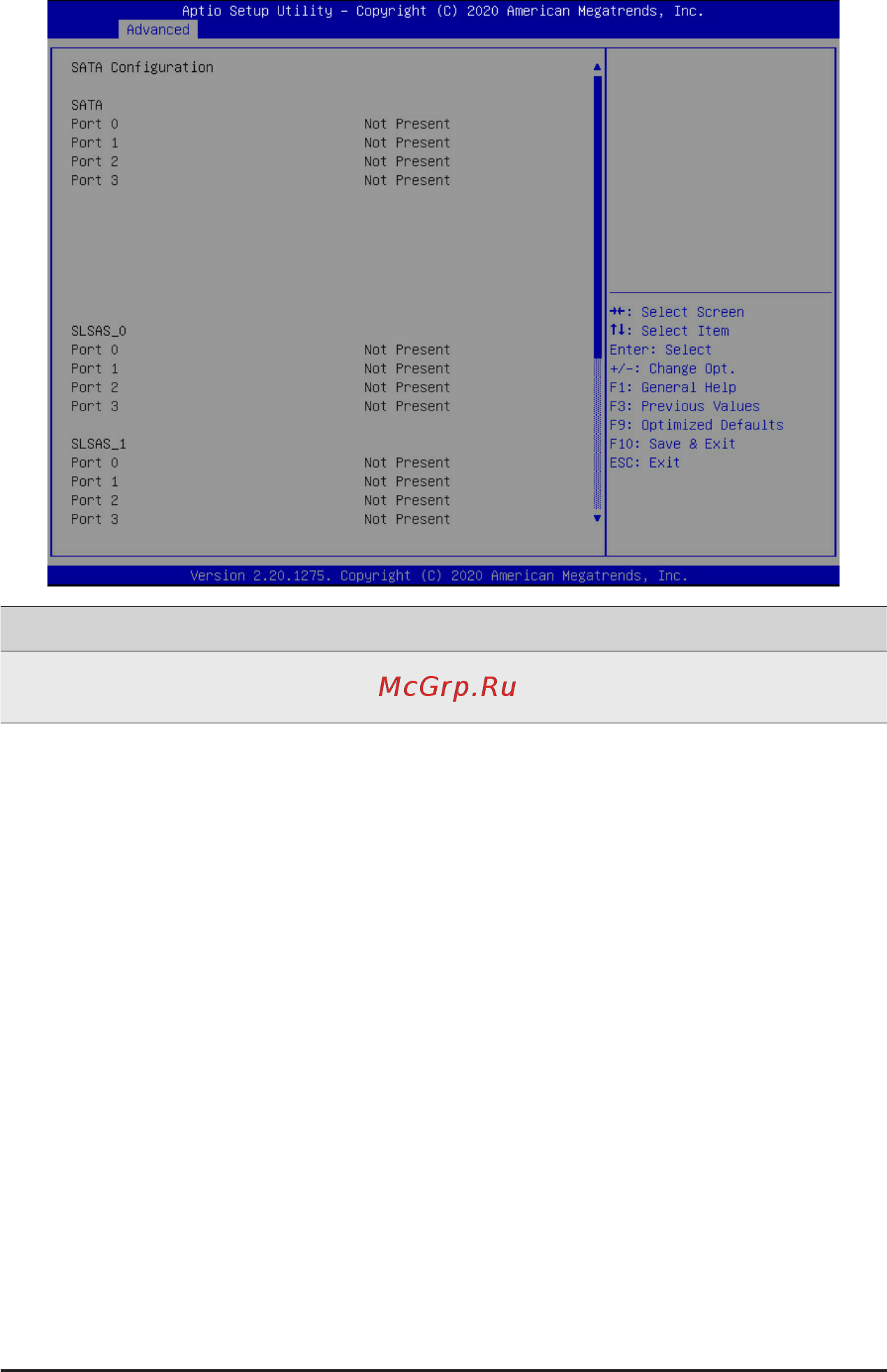

2-2-12 SATA Conguration

Parameter

Description

SATAConguration

Displays the installed HDD devices information. System will automatically

detect HDD type.
