Hardware Installation - 18 -
1-7 Internal Connectors
Read the following guidelines before connecting external devices:
•
First make sure your devices are compliant with the connectors you wish to connect.
•
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
•
After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.

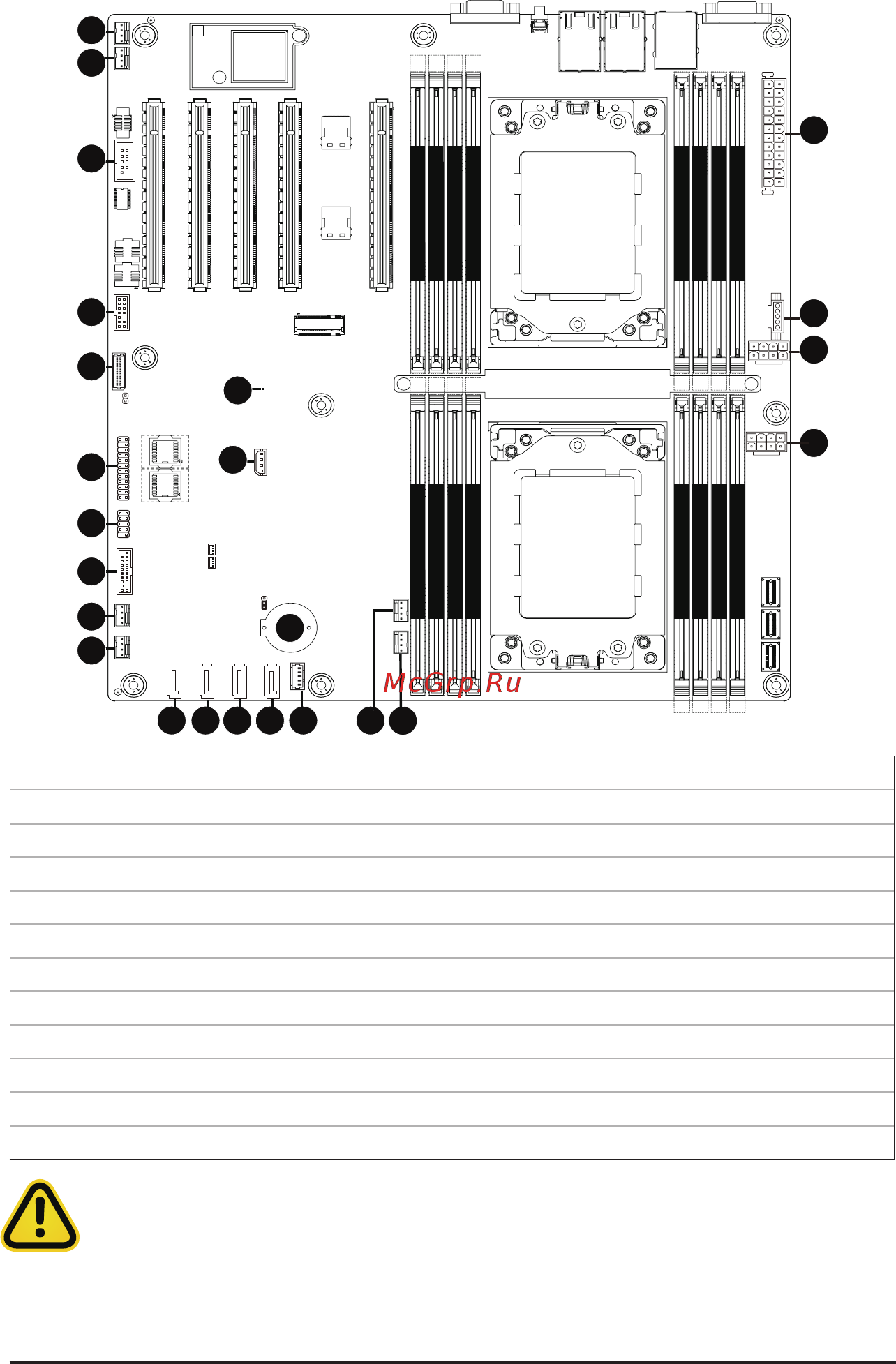

1) ATX 13) SYS_FAN3
2) P12V_1 (for CPU0) 14) SYS_FAN4
3) P12V_2 (for CPU1) 15) PMBUS
4) SATA0 16) F_USB3
5) SATA1 17) F_USB2
6) SATA2 18) COM2
7) SATA3 19) FP_1
8) SATA_SGP 20) BP_1
9) CPU_FAN0 21) SPI_TPM
10) CPU_FAN1 22) IPMB
11) SYS_FAN1 23) LED_BMC1
12) SYS_FAN2 24) BAT
CPU0
CPU1
DIMM_P0_A0
DIMM_P0_B0
DIMM_P0_C0
DIMM_P0_D0
DIMM_P0_H0
DIMM_P0_G0
DIMM_P0_F0
DIMM_P0_E0
DIMM_P1_L0
DIMM_P1_K0
DIMM_P1_J0
DIMM_P1_I0
DIMM_P1_M0
DIMM_P1_N0
DIMM_P1_O0
DIMM_P1_P0
3
4 5 6
7
8 9
10
11
14
15
16
17
18
19
20
22
21
23
24
13
12
2
1
