D–EIMAC01502–18_02EN - 16/23
To guarantee compressor operation within its envelope, units with heat recovery cannot operate with water temperature of
the heat recovery water lower than 25°C.
It is a responsibility of plant designer and chiller installer to guarantee the respect of this value (e.g. using recirculating
bypass valve).

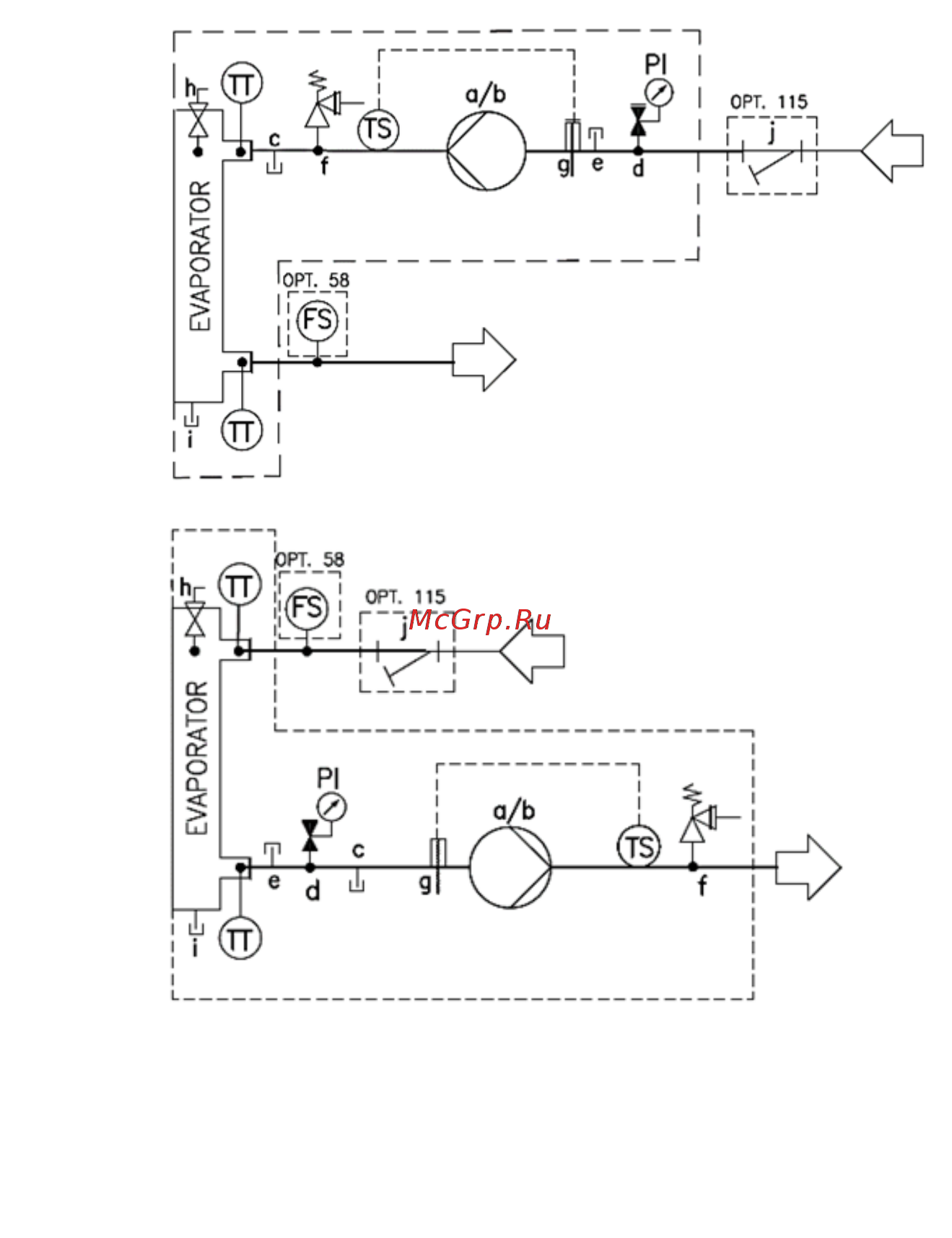

Figure 8 - Water piping connection for evaporator (opt.78-79-80-81)
ID
DESCRIPTION
a
SINGLE PUMP
b
TWIN PUMP
c
DRAIN
d
AUTOMATIC FILLING VALVE
e
PLUGGED FITTING
f
SAFETY VALVE 10 bar ½” MF
*
g
ELECTRICAL HEATER
h
AIR VENT
i
DRAIN
j
WATER FILTER
TT
TEMPERATURE SENSOR
TS
TEMPERATURE SWITCH
PI
PRESSURE GAUGE
FS
FLOWSWITCH
14. *with tank the safety valve is sets at 6 bar
