5.2 Noise

The unit is a source of noise mainly due to rotation of compressors and fans.

The noise level for each model size is listed in sales documentation.

If the unit is correctly installed, operated and manteined the noise emission level do not require any special protection

device to operate continuosly close to the unit without any risk.

In case of installation with special noise requirements it could be necessary to install additional sound attenuation devices.

5.3 Moving and lifting

Avoid bumping and/or jolting during loading/unloading unit from the truck and moving it. Do not push or pull the unit from

any part other than the base frame. Secure the unit inside the truck to prevent it from moving and causing damages. Do

not allow any part of the unit to fall during transportation or loading/unloading.

All units of the series are supplied with lifting points marked in yellow. Only these points may be used for lifting the unit, as

shown in the following figure.

Use spacing bars to prevent damage to the condensation bank. Position these above the fan grills at a distance of at least

2.5 metres.

Both the lifting ropes and the spacing bars must be strong enough to support the unit safely. Please check the unit’s

weight on the unit nameplate.

The unit must be lifted with the utmost attention and care following lifting label instructions; lift unit very slowly, keeping it

perfectly level.

5.4 Positioning and assembly

All units are designed for installation outdoors, either on balconies or on the ground, provided that the installation area is

free of obstacles that could reduce air flow to the condensers coil.

The unit must be installed on a robust and perfectly level foundation; should the unit be installed on balconies or roofs, it

might be necessary to use weight distribution beams.

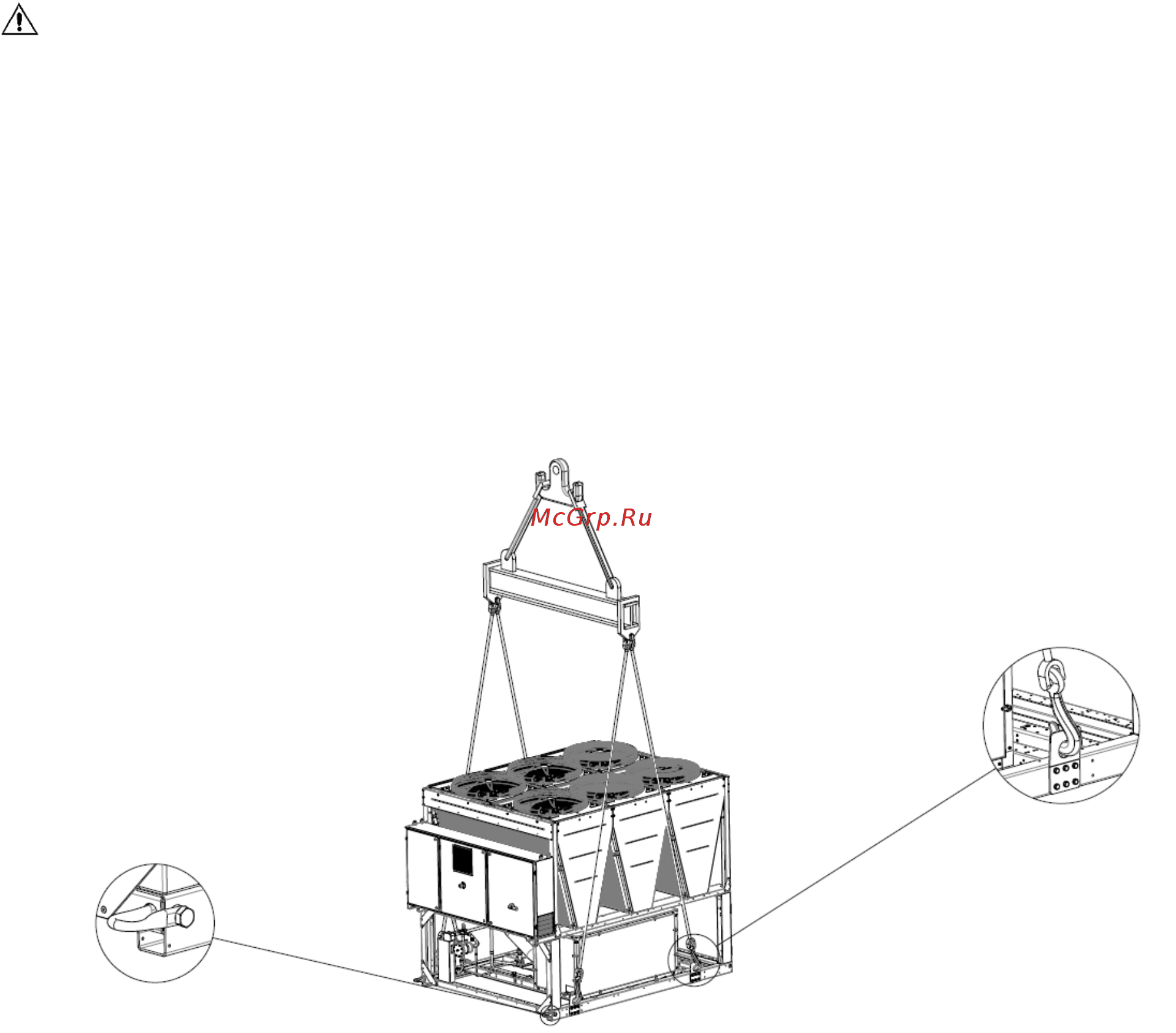

Figure 3– Lifting

Unit with 4 lifting points

(The drawing shows only the 6 fans version. For the 4 fans version the lifting mode is the same)
