D–EIMAC01502–18_02EN - 3/23

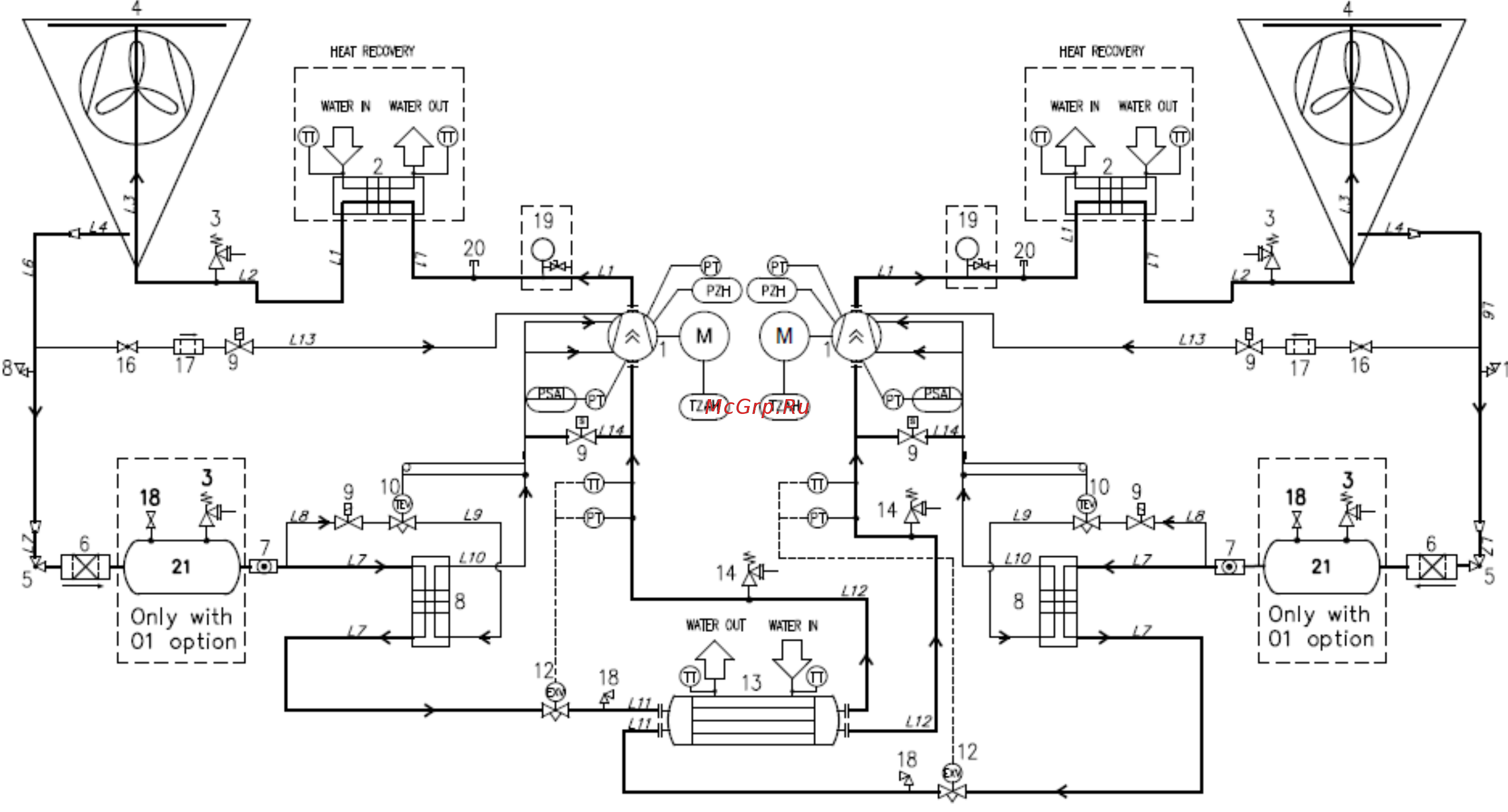

Figure 1 - Typical refrigerant circuit (Dual Circuit)
Water inlet and outlet are indicative. Please refer to the machine dimensional diagrams for exact water connections.
