ASRock X99 WS-E [34/108] English

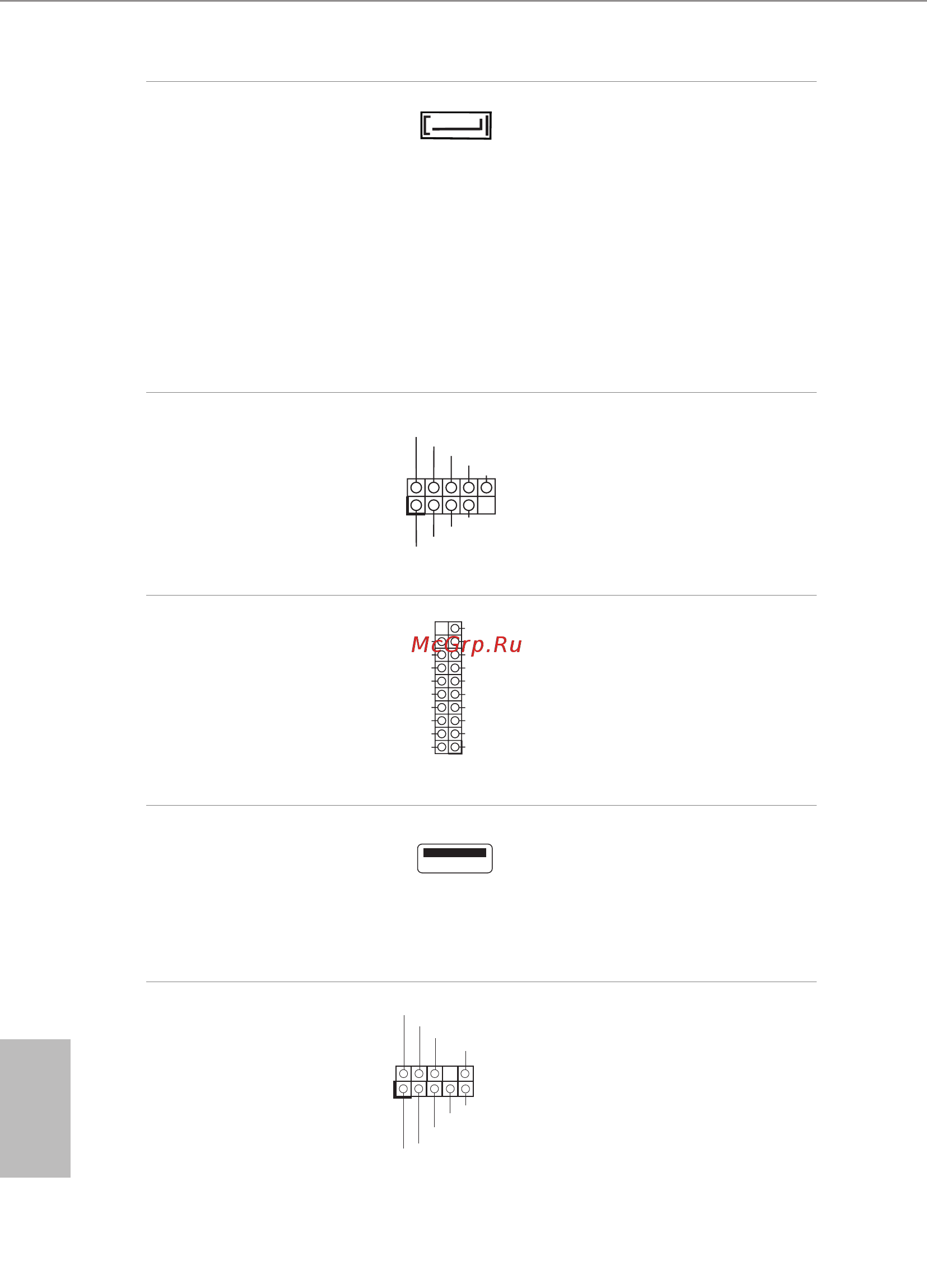

![ASRock X99 WS-E [34/108] English](/views2/1686116/page34/bg22.png)
34
English
Serial ATA DOM
Connector
(SATA_0)
(see p.13 or p.16, No. 24)
SA TA_0
e SATA DOM
connector supports both
a SATA DOM (Disk-On-
Module) and a SATA data
cable for internal storage
device.
*If the S_SATA3_2 has
been connected, the SATA
DOM (SATA_0) will not
function.
USB 2.0 Headers
(9-pin USB5_6)
(see p.13 or p.16, No. 35)
(9-pin USB7_8)
(see p.13 or p.16, No. 36)
Besides four USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Headers
(19-pin USB3_5_6)
(see p.13 or p.16, No. 11)
(19-pin USB3_7_8)
(see p.13 or p.16, No. 10)
Besides four USB 3.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
3.0 header can support
two ports.
USB DOM
Connector
(USB9)
(see p.13, No. 46 or
p.16, No. 45)
is connector supports
USB DOM (Disk-On-
Module).
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.13, No. 43 or
p.16, No. 42)
is header is for
connecting audio devices
to the front audio panel.
J _ S E N S E
O U T 2 _ L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
