ASRock X99 WS-E [93/108] Super io coniguration
![ASRock X99 WS-E [93/108] Super io coniguration](/views2/1686116/page93/bg5d.png)
93
English
X99 WS-E/10G / X99 WS-E

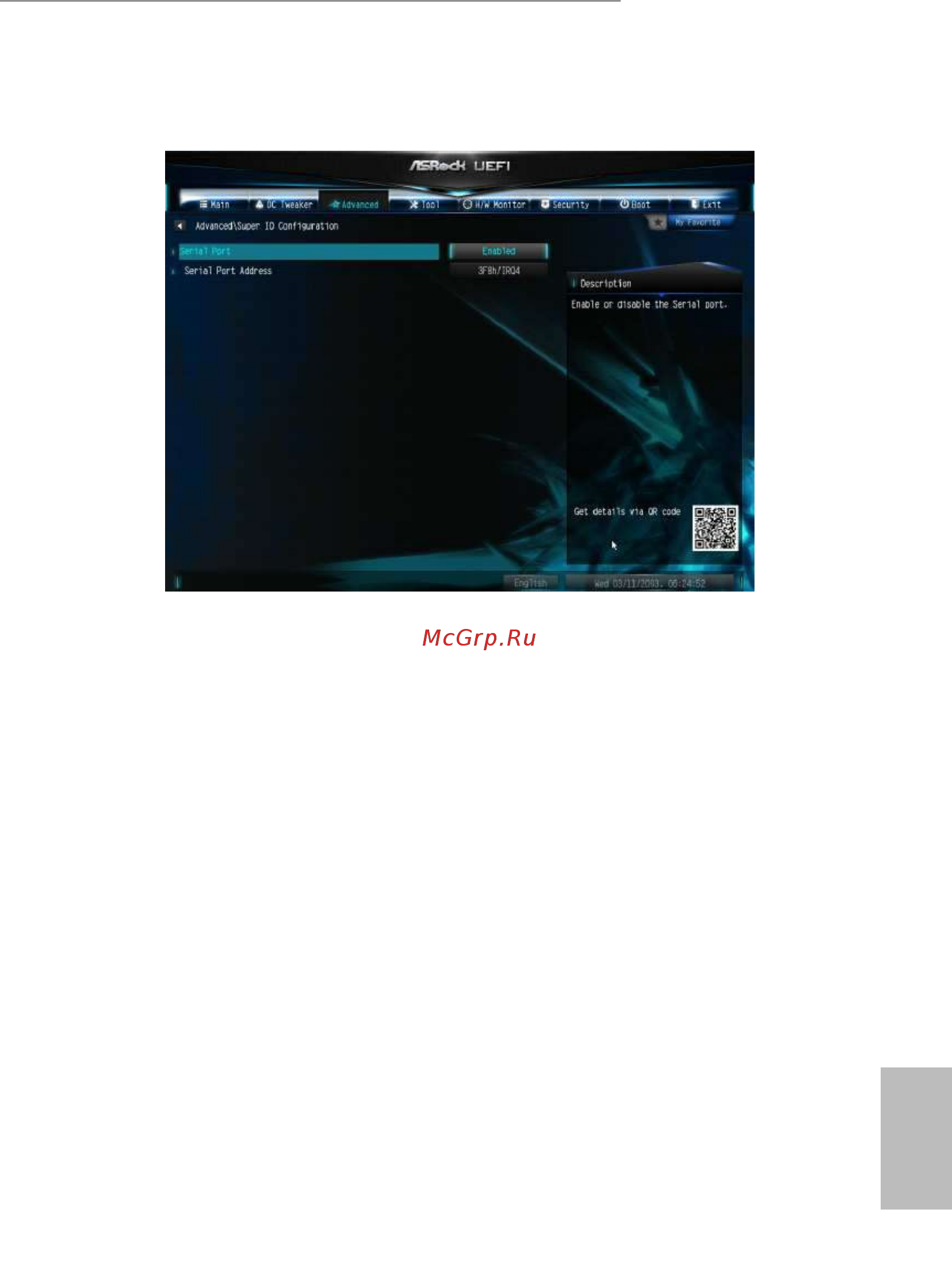

4.4.4 Super IO Conguration
Serial Port
Enable or disable the Serial port.
Serial Port Address
Select the address of the Serial port.
