ASRock X99 WS-E [37/108] English

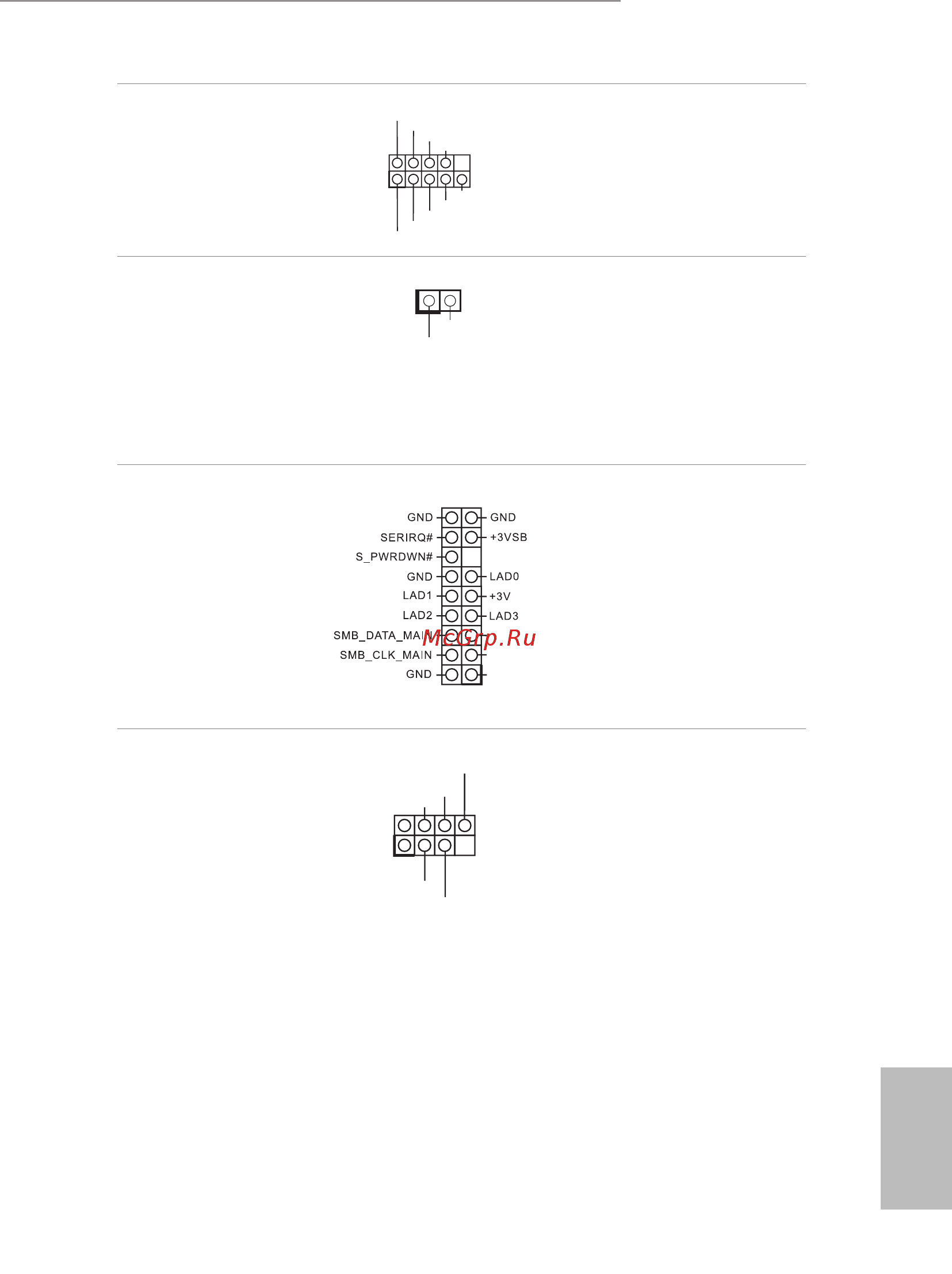

![ASRock X99 WS-E [37/108] English](/views2/1686116/page37/bg25.png)
37
English
X99 WS-E/10G / X99 WS-E
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
1
Signal
GND
PCIRST
#
FRAME
PCICLK
Serial Port Header
(9-pin COM1)
(see p.13, No. 40 or
p.16, No. 39)
is COM1 header
supports a serial port
module.
Chassis Intrusion Header
(2-pin CI1)
(see p.13, No. 42 or
p.16, No. 41)
is motherboard supports
CASE OPEN detection feature
that detects if the chassis cove
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
TPM Header
(17-pin TPMS1)
(see p.13 or p.16, No. 8)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
Serial General Purpose
Input/Output Headers
(7-pin SATA_SGPIO1)
(see p.13 or p.16, No. 31)
(7-pin SATA_SGPIO2)
(see p.13 or p.16, No. 29)
(7-pin SSATA_SGPIO1)
(see p.13 or p.16, No. 34)
ese headers support Serial
Link interface for onboard SATA
connections.
1
SDA
TAOUT
SLOAD
SCLOCK
GND
GND
