ASRock X99 WS-E [44/108] English
![ASRock X99 WS-E [44/108] English](/views2/1686116/page44/bg2c.png)
44
English

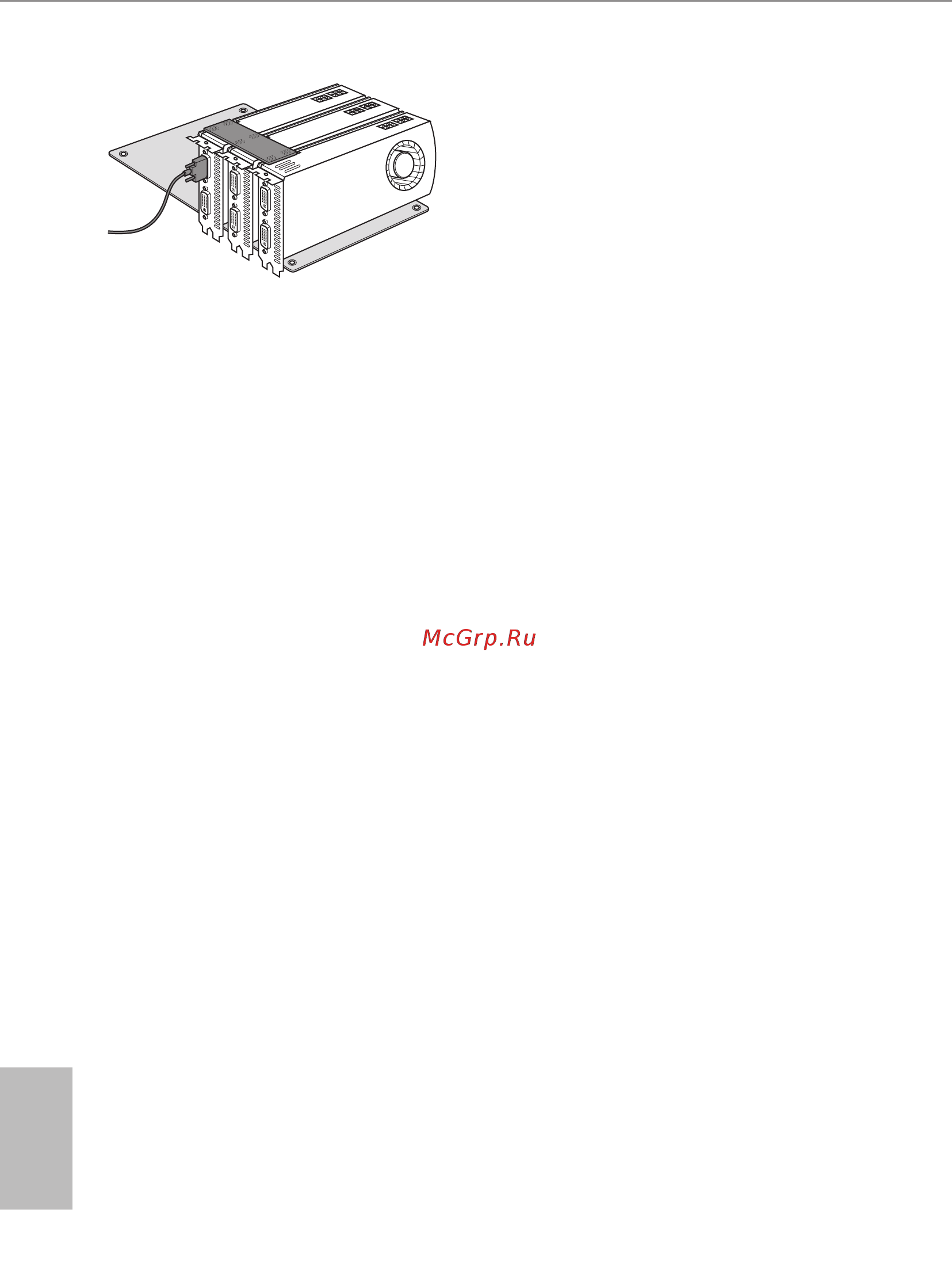

Step 4
Connect a VGA cable or a DVI cable to the
monitor connector or the DVI connector of
the graphics card that is inserted to PCIE7
slot.
