12

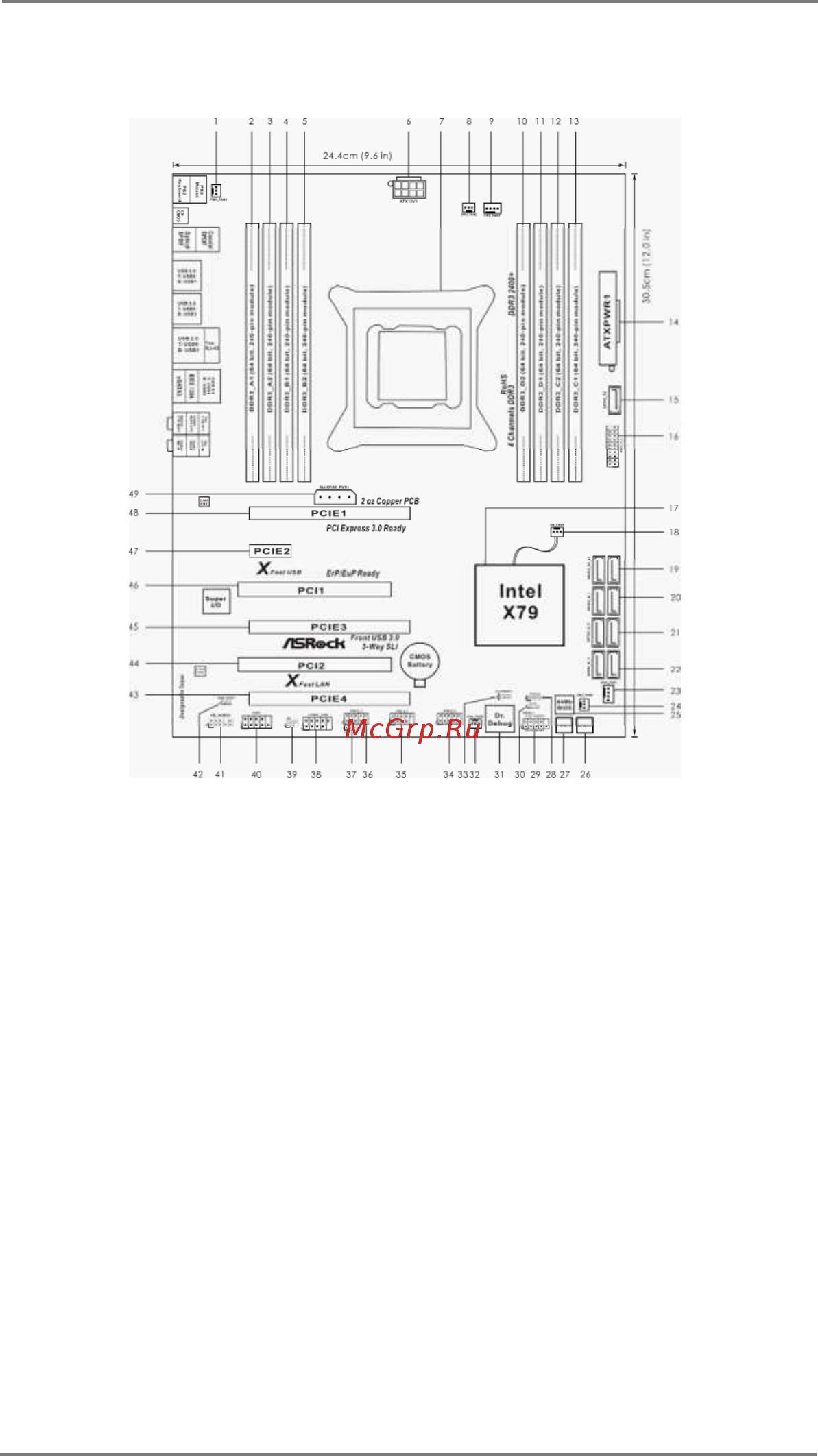

1.3 Motherboard Layout (X79 Extreme6/GB / X79 Extreme6)
1 Power Fan Connector (PWR_FAN1) 26 Reset Switch (RSTBTN1)
2 240-pin DDR3 DIMM Slot (DDR3_A1, Black) 27 Power Switch (PWRBTN1)
3 240-pin DDR3 DIMM Slot (DDR3_A2, Black) 28 Chassis Speaker Header (SPEAKER1, Black)
4 240-pin DDR3 DIMM Slot (DDR3_B1, Black) 29 System Panel Header (PANEL1, Black)
5 240-pin DDR3 DIMM Slot (DDR3_B2, Black) 30 Power LED Header (PLED1)
6 ATX 12V Power Connector (ATX12V1) 31 Dr. Debug
7 2011-Pin CPU Socket 32 Chassis Fan Connector (CHA_FAN3)
8 CPU Fan Connector (CPU_FAN2) 33 Clear CMOS Jumper (CLRCMOS1)
9 CPU Fan Connector (CPU_FAN1) 34 USB 2.0 Header (USB_8_9, Black)
10 240-pin DDR3 DIMM Slot (DDR3_D2, Black) 35 USB 2.0 Header (USB_6_7, Black)
11 240-pin DDR3 DIMM Slot (DDR3_D1, Black) 36 USB 2.0 Header (USB_4_5, Black)
12 240-pin DDR3 DIMM Slot (DDR3_C2, Black) 37 Consumer Infrared Module Header (CIR1, Gray)
13 240-pin DDR3 DIMM Slot (DDR3_C1, Black) 38 Front Panel IEEE 1394 Header
14 ATX Power Connector (ATXPWR1) (FRONT_1394, Black)
15 SATA3 Connector (SATA3_A2, Gray) 39 Infrared Module Header (IR1)
16 USB 3.0 Header (USB3_4_5, Black) 40 COM Port Header (COM1)
17 Intel X79 Chipset 41 Front Panel Audio Header (HD_AUDIO1, Black)
18 SB Fan Connector (SB_FAN1) 42 HDMI_SPDIF Header (HDMI_SPDIF1, Black)
19 SATA3 Connectors (SATA3_A0_A1, Gray) 43 PCI Express 3.0 x16 Slot (PCIE4, Black)
20 SATA3 Connectors (SATA3_0_1, Gray) 44 PCI Slot (PCI2, Black)
21 SATA2 Connectors (SATA2_2_3, Black) 45 PCI Express 3.0 x16 Slot (PCIE3, Black)
22 SATA2 Connectors (SATA2_0_1, Black) 46 PCI Slot (PCI1, Black)
23 Chassis Fan Connector (CHA_FAN1) 47 PCI Express 2.0 x1 Slot (PCIE2, Black)
24 Chassis Fan Connector (CHA_FAN2) 48 PCI Express 3.0 x16 Slot (PCIE1, Black)
25 SPI Flash Memory (64Mb) 49 SLI / XFIRE Power Connector
